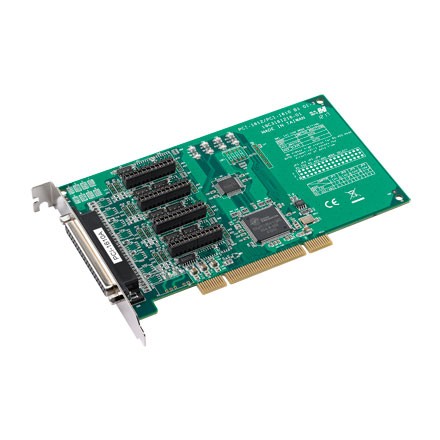

4 Port RS-232 PCI Serial Communication Card (PCI-1610A-BE)
by Advantech
•Part #: PCI-1610A-BE
View Detailed Description
$125.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
- PCI bus 2.2 compliant
- Supports serial speed up to 921.6 kbps, and any baud rate setting
- 4-port RS-232
- OXuPC1954 UART with 128-byte FIFOs standard
- I/O address automatically assigned by PCI Plug & Play
- Interrupt status register for increased perfor
- Universal PCI, supports 3.3 V or 5 V PCI bus signal
- 1,000 VDC surge protection
| Communications | Data Bits | 5,6,7,8 |
| Data Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND | |
| FIFO | 128 bytes | |
| Stop Bits | 1,1.5,2 | |
| Data Flow Control | RTS/CTS, Xon/Xoff | |
| RS-232 | V | |
| General | Connectors | 1 x Female DB37 |
| Power Consumption | 180 mA @ +5V | |
| Protection | Surge Protection | 1,000 VDC |
| EFT Protection | 2,500KV | |
| Software | Bundled Software | ICOM Tools |
