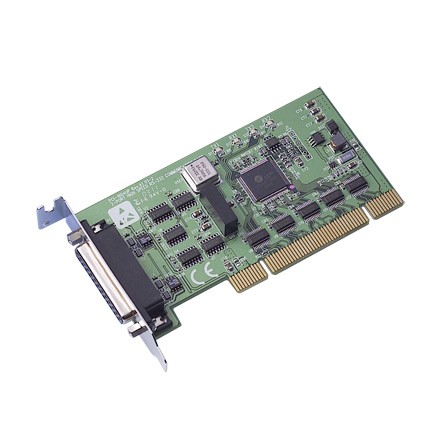

2-port RS-232 Low Profile PCI Comm. Card (PCI-1604UP-BE)
by Advantech
•Part #: PCI-1604UP-BE
View Detailed Description
$100.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
- PCI bus 2.2 compliant
- Speeds up to 921.6 kbps
- 2-port RS-23
- I/O address automatically assigned by PCI Plug Play
- Operating sytems supported: Windows 2000/XP/Vista/7, Windows CE 5.0/6.0, Linux, and QNX
- 2,000 VDC EFT Protection
- 2,500 VDC Isolation protection for RS-232
- Interrupt status register for increased performance
Certification | EMC | EN 55022, EN 61000-3-2, EN 61000-3-3, EN 55044 including (IEC 61000-4-2/3/4/5/6/8/11), FCC Part 15, Subpart B |
Communications | Data Bits | 5,6,7,8 |
Data Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND ; RS-422: Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND; RS-485: Data+, Data-, GND | |
FIFO | 128 bytes | |
Parity | None, Even, Odd, Mark and Space | |
Speed | 50 bps ~ 921.6 kbps, any baud rate setting 230.4 kbps | |
Stop Bits | 1,1.5,2 | |
Data Flow Control | RTS/CTS, Xon/Xoff | |
IRQ | Assigned by Plug & Play | |
Communication Controller | OXuPC1952 | |
Environment | Operational Temperature | 0 ~ 65° C (32 ~ 149° F) |
Operating Humidity | 5 ~ 95 % RH, non-condensing | |
Storage Temperature | -25 ~ 85°C (-13 ~ 185°F) | |
General | Bus Interface | Universal PCI V2.2 |
Connectors | 1 x Female DB25 | |
Power Consumption | 5 V @ 400 mA | |
Certifications | CE, FCC, RoHS | |
OS Support | 32-bit/64-bit Windows 2000/XP/Vista/7, Windows CE 5.0/6.0, Linux, and QNX | |
Dimensions | 119.91 x 64.41 mm (4.7" x 2.5") | |
Protection | ESD Protection | 8KV (air), 4KV (contact) |
Surge Protection | 1,000 VDC | |
EFT Protection | 1KV | |
Software | Bundled Software | ICOM Tools |
