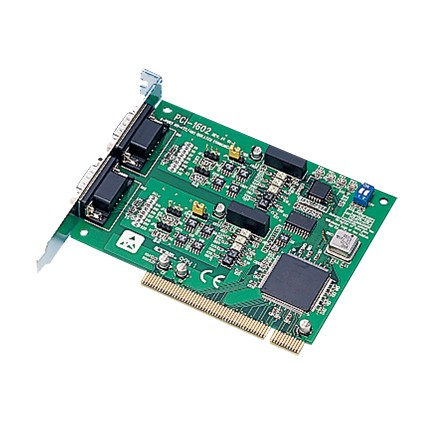

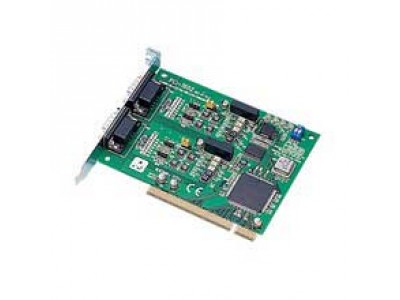

2 Port RS-422/485 PCI Serial Communication Card with Isolation (PCI-1602-BE)
by Advantech
•Part #: PCI-1602-BE
View Detailed Description
$190.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
- PCI bus 2.2 compliant
- Supports serial speed up to 921.6 kbps, and any baud rate setting
- 2-port RS-422/485 interface
- I/O address automatically assigned by PCI Plug & Play
- OS supported: Windows 2K/XP/Vista/7, Windows CE 5.0/6.0, Linux, and QNX
- Interrupt status register for increased performance
| Certification | EMC | EN 55011: 2009 + A1: 2010, Group 1, Class A EN 55022: 2010, Class A EN 61000-6-4: 2007 EN 55024: 2010 EN 61000-6-2: 2005 IEC 61000-4-2: 2008 IEC 61000-4-3: 2006 +A1: 2007 +A2: 2010 IEC 61000-4-4: 2010 IEC 61000-4-6: 2008 IEC 61000-4-8: 2009 FCC 47 CFR Part 15 Subpart B (Class B) IC ICES-003 (2004) |
| Communications | Data Bits | 5,6,7,8 |
| Data Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND ; RS-422: Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND; RS-485: Data+, Data-, GND | |
| FIFO | 256 bytes | |
| Parity | None, Even, Odd, Mark and Space | |
| Speed | 50 bps ~ 921.6 kbps, any baud rate setting | |
| Stop Bits | 1,1.5,2 | |
| Data Flow Control | DTR/DSR,RTS/CTS, Xon/Xoff | |
| IRQ | Assigned by Plug & Play | |
| Communication Controller | XR17V352 | |
| Display | Ports | 2 |
| Environment | Operational Temperature | -10 ~ 60° C (14 ~ 144° F) |
| Operating Humidity | 5 ~ 95 % RH, non-condensing | |
| Storage Temperature | -25 ~ 85°C (-13 ~ 185°F) | |
| General | Bus Interface | Universal PCI V2.2 |
| Connectors | 2 x Male DB9 | |
| Power Consumption | 260 mA @ +3.3 V (typ.) | |
| Certifications | CE, FCC, RoHS | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Dimensions | 119.91 x 106.67 mm (4.72” x 4.2”) | |
| Protection | ESD Protection | 15KV (air), 8KV (contact) |
| Surge Protection | 1KV | |
| Isolation Protection | 3KV | |
| EFT Protection | 1KV | |
| Software | Bundled Software | ICOM Tools |
