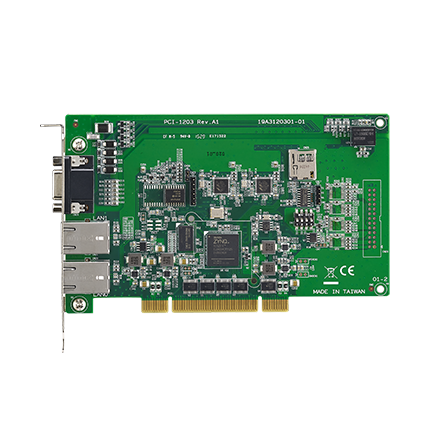

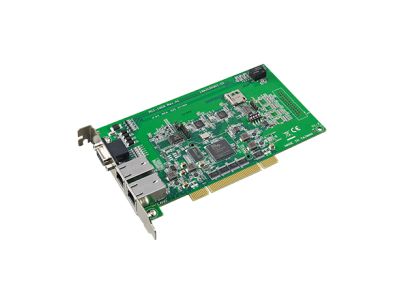

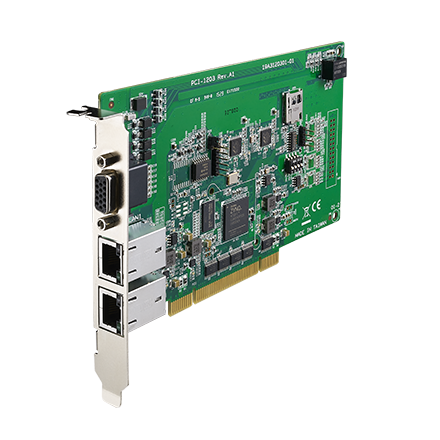

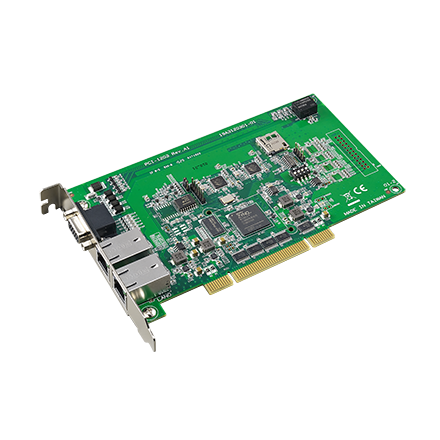

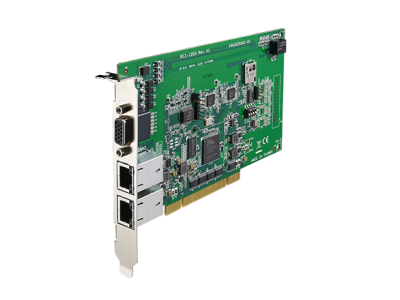

CIRCUIT BOARD, 2-port 6-Axis EtherCAT Universal PCI Master Card (PCI-1203-06AE)
by Advantech
•Part #: PCI-1203-06AE
View Detailed Description
$700.00
The PCI-1203 is a 2-port EtherCAT PCI Universal card. It is a ready-to-use EtherCAT development platform for all PC-based industrial automation. The EtherCAT protocol stack is executed autonomously on the PCI card. It allows the host to handle up to two EtherCAT networks with extremely short cycle time for Motion and pure I/O applictions. For EtherCAT motion port, communication cycle time is no more than 500 μs for connecting 32 axes of servo motors and for fast I/O ports the cycle time is no more than 200us in a high speed I/O system. There are 4 - channel isolated digital outputs and 8 - channel isolated inputs on the PCI-1203 to meet the extra high speed I/O requirements. Real-time and high-precision capability are features of PCI-1203. In addition, all Advantech motion controllers use the "Common Motion API" architecture which is a unified user programming interface and graphical utility. This architecture saves application maintenance and upgrades. Programmers can benefit from using any Advantech SoftMotion controller without changing large amounts of the application code. User-friendly examples decrease programming load, helping users complete configuration and diagnosis easily.
- 650MHz dual-core ARM processor
- 2 x EtherCAT ports for high-performance of Motion and I/O applications
- Supports common motion SDK for rapid application development
- Up to 32 axes support for motion control
- Supports a maximum of 6 motion groups and 8 axes per group
- Supports on board 8-CH isolated DI and 4-CH isolated DO
- Diagnostics for fast error handling can trace command and error message
| EtherCAT | Cable Type | CAT5 UTP/STP Ethernet cable and above |
| Communication IO Slave | 128 port DI (128 byte) / 128 port DO (128 byte); 128 channel AI (256 byte) and 128 channel AO (256 byte) (based on ADAM-5000/ECAT) | |
| Communication Motion Slave | 32 Servo Drive Max.(eq. Panasonic A5B) | |
| Cycle Time | Motion: 500 us; I/O: 200 us | |
| Number of Rings | 2 (Motion x 1, I/O x 1) | |
| General | Bus Type | Universal PCI V2.2 |
| Certifications | CE, FCC class A | |
| Connectors | 2 x RJ45, 1 x D-sub 15 | |
| Dimensions (L x H) | 175 x 100 mm (6.9" x 3.9") | |
| Humidity | 5 ~ 95% RH, non-condensing (IEC 60068-2-3) | |
| Operating Temperature | 0 ~ 60°C (32 ~ 140°F) | |
| Power Consumption | 5 VDC @ 0.5 A typical | |
| Storage Temperature | -20 ~ 85°C (-4 ~ 185°F) | |
| Isolated Digital Input | Channels | 8 |
| Input Resistance | 8.4 k Ω | |
| Input Voltage | Logic 0: 5 V max.; Logic 1: 6 V min. (24V max.); Needs 24VDC external power | |
| Isolation Protection | 1,000 VDC | |
| Isolated Digital Output | Channels | 4 |
| Isolation Protection | 1,000 VDC | |
| Output Type | Sink | |
| Output Voltage | 12 ~ 24 VDC | |
| Sink Current | Max: 300 mA CH |
