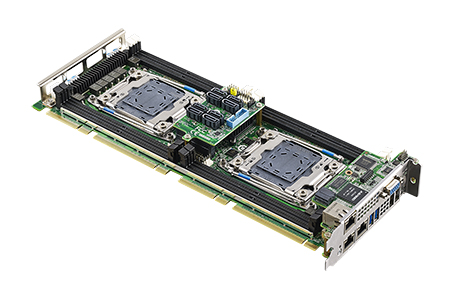

Dual Socket Intel Xeon Full-Size Single Board Computer with DDR4, IPMI (PCE-9228G2I-00A1E)
by Advantech
•Part #: PCE-9228G2I-00A1E
View Detailed Description
$1,311.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Dual LGA 2011-R3 Intel Xeon® E5-2600v3 SHB Server Board with DDR4, DDR4/SATA3.0/USB3.0/Dual GbE
- Supports Dual Intel Xeon E5-2600v3 LGA2011 processors with C612 Chipset
- Quad Channel ECC-REG DDR4 1333/1600/1867/2133 up to 256 GB
- Supports four PCI, one PCIe x16 or two PCIe x8, PCIe x4 from PCH
- Options for 64 PCIe Links total
- Supports USB 3.0, 2 GbE, SATA3.0, SW Raid 0, 1, 5, 10
- Supports out-of-band remote management IPMI2.0
| Certification | EMC | CE, FCC |
| Display | Controller | Aspeed AST1400/2400 |
| Display Interface | VGA: Up to1920 x 1200 | |
| Multiple Display | Single | |
| Environment | Non-Operating Vibration | 2 Grms |
| Non-Operational Temperature | -40 ~ 85° C @ 95% RH Non-Condensing | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) | |
| Ethernet | Connector | 2 x RJ45 |
| Controller | LAN1: Intel I210; LAN2: Intel I210 | |
| Speed | 10/100/1000 Mbps | |
| Expansion Interface | PCI Express Links | 4 PCIe 2.0 Links |
| PCI Express x 1 | 4 | |
| PCI | 4 | |
| PCI Express x 16 | 1 | |
| PCI Express x 4 | 1 | |
| Form Factor | Form Factor | PICMG1.3 |
| I/O | COM Port | 1 (1 x RS232) |
| Floppy | - | |
| GPIO | 8-bit | |
| IDE | - | |
| LPT | - | |
| PS/2 Keyboard/Mouse | - | |
| SATA | 8 SATA3.0 Ports(SATA0~3 and sSATA0~3 support software raid 0,1,5,10) | |
| System Fan | - | |
| USB2.0 | 6 | |
| USB3.0 | 4 | |
| Management Solution | Out of band remote management | IPMI 2.0 |
| Memory | Capacity | Up to 256GB DDR4 RDIMM |
| ECC Support | Yes | |
| Socket | 8 x 288-pin DIMM | |
| Technology | DDR4 ECC-REG/ECC/Non-ECC 2133/1866/1600 MHz DIMM | |
| Physical Characteristics | Dimensions (LxW) | 338 x 122 mm (13.3" x 4.8") |
| Weight | 1.1 Kg | |
| Power Requirement | Current | 26.73A/ 1.07A/ 2.61A/ 0.01A/ 0.07A |
| Voltage | +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V | |
| Processor System | CPU | Intel Xeon E5-2600 v3 dual processor |
| CPU TDP | 120W | |
| Frequency | Up to 3.3 GHz | |
| Core Number | 12 | |
| L2 Cache | - | |
| L3 Cache | Up to 30MB depended on Intel CPU datasheet | |
| BIOS | AMI 64 Mbit SPI (UEFI) | |
| Chipset | Intel C612 | |
| Integrated Graphics | - | |
| FSB | - | |
| Rear I/O Interface | COM | - |
| Ethernet | 2 | |
| PS/2 | - | |
| USB2.0 | 2 | |
| USB3.0 | 2 | |
| VGA | 1 | |
| Storage | CFast | - |
| CompactFlash | - | |
| WatchDog Timer | Interval | Programmable 1~255 sec |
| Output | System Reset |
