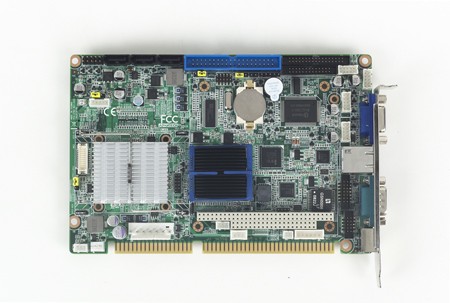

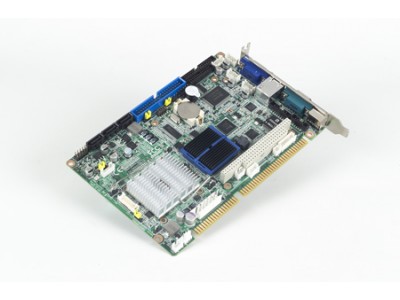

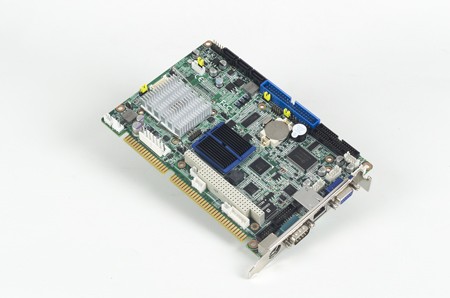

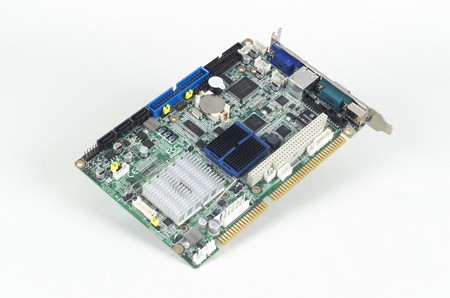

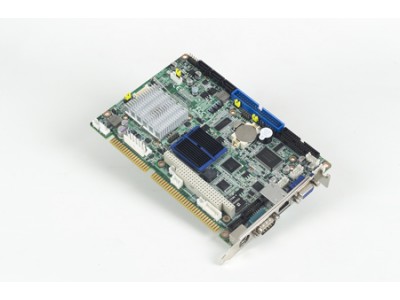

Atom N455 Half-sized Single Board Computer with VGA/LAN/LVDS (PCA-6782N-S6A1E)
by Advantech
•Part #: PCA-6782N-S6A1E
View Detailed Description
$286.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Intel® Atom N455/D525 ISA Half-size SBC with VGA/LVDS/GbE LAN/SATA/COM/CFC/ FDD and PC/104
- Intel Atom™ N455 1.66 GHz processor
- Supports DDR2 667 memory up to 2 GB
- VGA/LVDS dual video outputs
- Optional module for 4 x RS-485 w/ auto-flow control
- 1 x GbE, 8 x USB, and 3 x SATA 2 ports
- Supports embedded software APIs and Utilities
| Certification | EMC | CE, FCC |
| Display | Controller | Intel Embedded Gen3.5+ GFX Core technology Integrated |
| Graphic Memory | Share with system memory up to 224 MB | |
| Multiple Display | Dual | |
| Display Interface | VGA: Up to 1400 x 1050 LVDS: 18 bit, Up to 1366 x 768/ 1280 x 800 | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40~ 85° C and 60° C @ 95% RH Non-Condensing | |
| Ethernet | Controller | LAN1: Intel 82567V |
| Speed | 10/100/1000 Mbps | |
| Connector | 1 x RJ45 | |
| Expansion Interface | ISA | 1 |
| PC/104 | - | |
| Form Factor | Form Factor | ISA half-size |
| I/O | COM Port | 1 (1 x RS232) |
| Compact Flash | 1 x Type I/II Socket | |
| Floppy | 1 | |
| GPIO | 8-bit | |
| IDE | 1 | |
| LPT | 1 | |
| PS/2 Keyboard/Mouse | 1 | |
| SATA | 3 x SATA II | |
| System Fan | 1 | |
| USB2.0 | 8 | |
| IR | - | |
| Management Solution | Software | SUSIAccess 2.0 |
| Memory | Technology | DDR2 667 MHz |
| Capacity | Up to 2 GB (2 GB per DIMM) | |
| Socket | 1 x 200-pin SODIMM | |
| Onboard Memory | - | |
| Physical Characteristics | Dimensions (LxW) | 185 x 122 mm (7.3" x 4.8") |
| Power Requirement | Voltage | +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V/ Total |
| Current | 0.13 A/2.19 A/0 A/0.01 A/0 A/0 A/ 12.56 W | |
| Processor System | CPU | Intel Atom N455 |
| CPU TDP | Up to 6.5 W | |
| Frequency | Up to 1.66 GHz | |
| Core Number | 1 | |
| L2 Cache | 512 KB | |
| BIOS | AMI 16 MBit | |
| Chipset | Intel ICH8M | |
| Integrated Graphics | Yes | |
| Rear I/O Interface | COM | 1 |
| PS/2 | 1 (for mouse and keyboard, a Y cable is included in the package) | |
| Ethernet | 1 | |
| VGA | 1 | |
| Storage | CFast | - |
| CompactFlash | - | |
| WatchDog Timer | Output | System Reset/ Interrupt |
| Interval | Programmable 1~255 sec |
