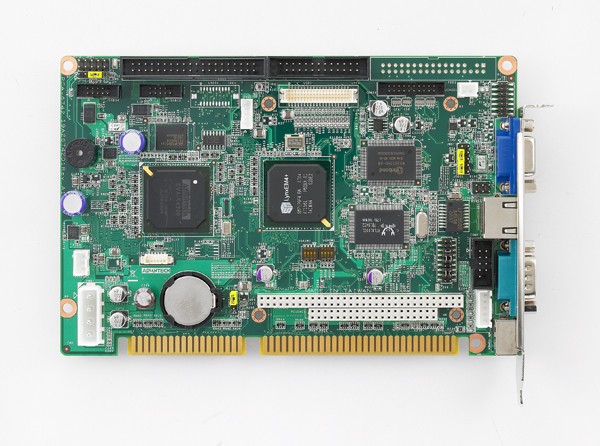

ISA half-sized Single Board Computer, Advantech EVA-X4300, VGA/LCD/LAN/CFC/USB and PC104 (PCA-6742VE-00A1E)
by Advantech
•Part #: PCA-6742VE-00A1E
View Detailed Description
$205.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Advantech EVA-X4300 ISA Half-size SBC with VGA/LCD/LAN/CFC/USB and PC/104
- Low power Fanless EVA-X4300
- Onboard 64MB DDR2 RAM, support up to 128MB
- 10/100 Base-T Ethernet
- 8/16-bit ISA expansion Slot
- Supports 4xUSB; 1xGPIO
- 1024 x 640, 24-bit TTL
| Certification | EMC | CE, FCC |
| Display | Controller | SMI SM712 |
| Graphic Memory | Share with system memory up to 4 MB | |
| Multiple Display | Dual | |
| Display Interface | VGA: Up to 1024 x 768 TTL: 18/24 bit, Up to 1024 x 768 LVDS: 18 bit, Up to 1024 x 768 (Optional) | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40~ 85° C and 60° C @ 95% RH Non-Condensing | |
| Ethernet | Controller | LAN1: RTL 8100C |
| Speed | 10/100 Mbps | |
| Connector | 1 x RJ45 | |
| Expansion Interface | ISA | 1 |
| PC/104 | 1 | |
| Form Factor | Form Factor | ISA half-size |
| I/O | COM Port | 3 (1 x RS232/422/485, 2 x RS232) |
| Compact Flash | - | |
| Floppy | - | |
| GPIO | 8-bit | |
| IDE | 1 | |
| LPT | 1 | |
| PS/2 Keyboard/Mouse | 1 | |
| SATA | - | |
| System Fan | 1 | |
| USB2.0 | 4 | |
| IR | - | |
| Management Solution | Software | - |
| Memory | Technology | DDR2 166 MHz |
| Capacity | Up to 64 MB (on board) | |
| Socket | - | |
| Onboard Memory | 64 MB | |
| Physical Characteristics | Dimensions (LxW) | 185 x 122 mm (7.3" x 4.8") |
| Power Requirement | Voltage | +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V/ Total |
| Current | 0 A/2 A/0 A/0 A/0 A/0 A/ 10 W | |
| Processor System | CPU | Advantech EVA-X4300 |
| CPU TDP | Up to 1.5 W | |
| Frequency | Up to 300 MHz | |
| Core Number | - | |
| L2 Cache | - | |
| BIOS | Award integrated 256KB ROM in Advantech EVA-X4300 | |
| Chipset | - | |
| Integrated Graphics | - | |
| Rear I/O Interface | COM | 1 (1 x RS232) |
| PS/2 | 1 (for mouse and keyboard, a Y cable is included in the package) | |
| Ethernet | 1 | |
| VGA | 1 | |
| Storage | CFast | - |
| CompactFlash | - | |
| WatchDog Timer | Output | System Reset/ IRQ 11 |
| Interval | Programmable 1~255 sec |
