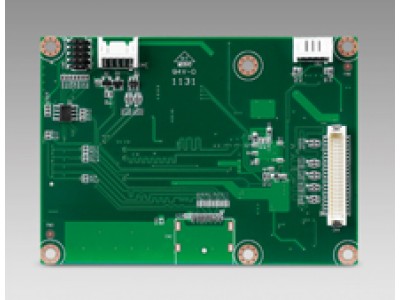

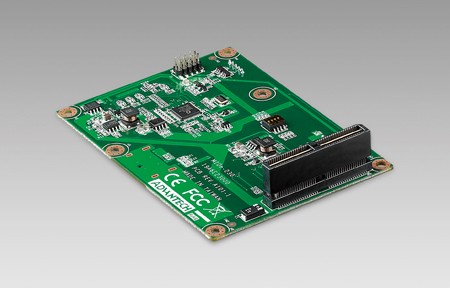

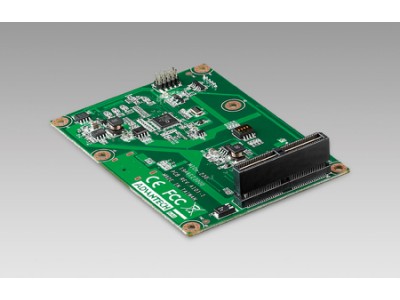

MIOe with 48-bit LVDS, backlight power, 2xUSB (Extends MIO-5250, MIO-5270, MIO-5290, MIO-2261 boards) (MIOE-230-L0A1E)
by Advantech
•Part #: MIOE-230-L0A1E
View Detailed Description
$50.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
48-bit LVDS or DisplayPort1 , 2 x USB 2.0
- Supports brightness control
- Supports 1 x 48-bit LVDS or Displayport
- Compatible with MIO-5250, MIO-5270, MIO-5290, MIO-2261 boards
- Built-in 2 x USB ports for display application (e.g. T/S)
- Compatible with MI/O-Compact & MI/O-Ultra mechanical designs
| Certification | EMC | CE, FCC |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Non-Operational Temperature | -40° C ~ 85° C and 60° C @ 95% RH non-condensing | |
| Expansion | MIOe | 1 (LPC, USB) |
| Form Factor | Form Factor | MI/O Extension Module |
| I/O | USB2.0 | 2 |
| COM Port | 4 (2xRS-232, 2xRS-232/422/485), with isolation and power/3 (2xRS-232, RS-232/422/485), with power | |
| Physical | Dimension (mm) | 100x72mm (3.9"x2.8") |
| Weight | 0.04kg (0.09lb) | |
| Power | Power Type | By MI/O SBC |
