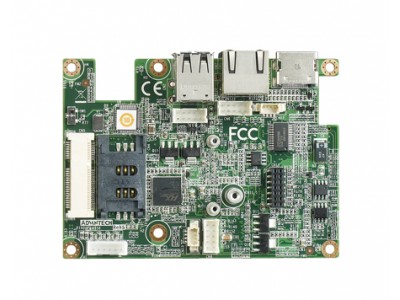

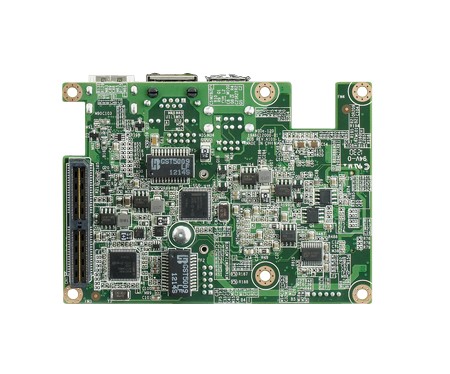

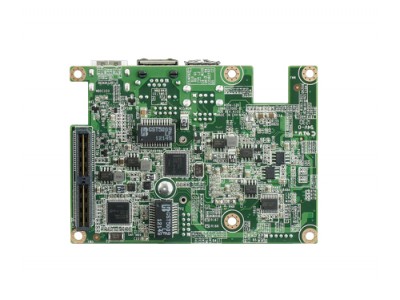

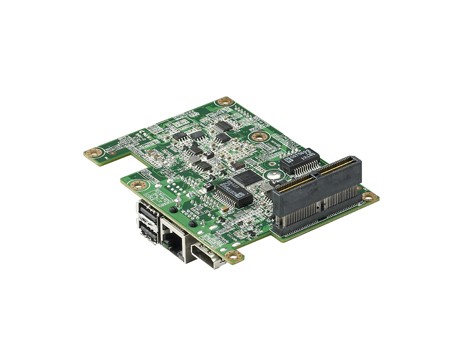

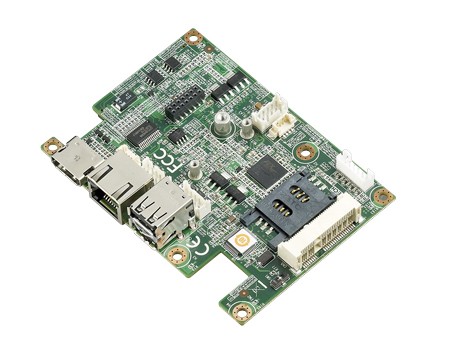

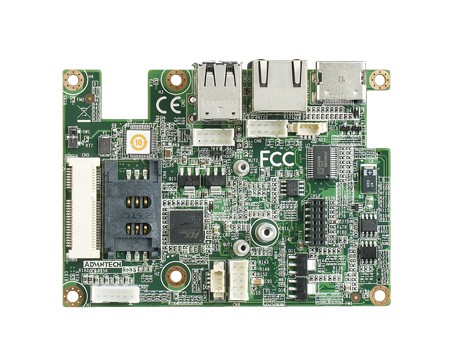

MIOe with 2 x GbE w/ PCIe switch, 2 x USB, Mini PCIe, SIM holder, speaker-out w/ amplifier, LPC (MIOE-120F-00A1E)
by Advantech
•Part #: MIOE-120F-00A1E
View Detailed Description
$80.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
2 x GbE, HDMI, Mini PCIe, SIM holder, speaker out, LPC, 2 x USB 2.0
- Multiple Communication module

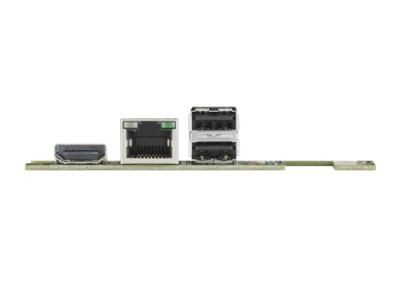

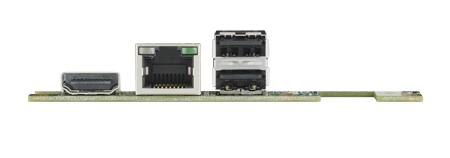

- Optional rear I/O connector at coastline or internal connector for USB and LAN port.
- Compatible with MI/O-Compact & MI/O-Ultra mechanical designs
- Support extra four COM ports by PCA-COM232-00A1E or PCA-COM485-00A1E, TPM module by PCA-TPM- 00A1E
| Audio | Amplifier | 1 (Max 2.2W/ch stereo) |
| Certification | EMC | CE, FCC |
| Display | DDI (HDMI/DVI/DisplayPort) | HDMI (by request, only for MIO-2261) |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Non-Operational Temperature | -40° C ~ 85° C and 60° C @ 95% RH non-condensing | |
| Ethernet | Controller | GbE1/2: Intel 82583V |
| Speed | 10/100/1000Mbps | |
| Connector | RJ45 and box wafer | |
| Expansion | Slot Type | 1 (Full-size) |
| SIM Socket | 1 | |
| LPC | 1 | |
| MIOe | 1 (PCIe, USB, LPC, audio line-out) | |
| Form Factor | Form Factor | MI/O Extension Module |
| I/O | USB2.0 | 2 |
| Physical | Dimension (mm) | 100x72mm (3.9"x2.8") |
| Weight | 0.04kg (0.09lb) | |
| Power | Power Type | By MI/O SBC |
