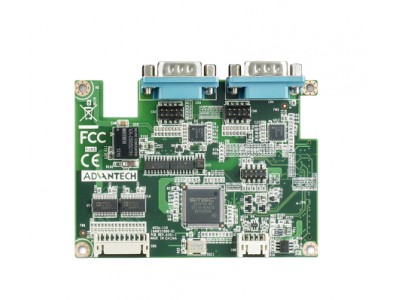

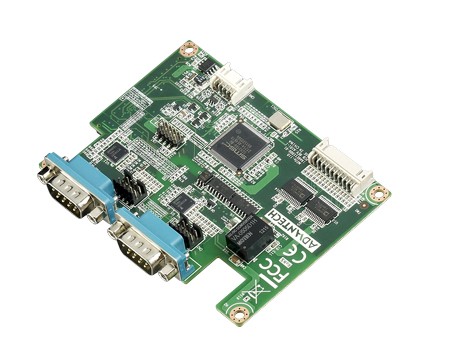

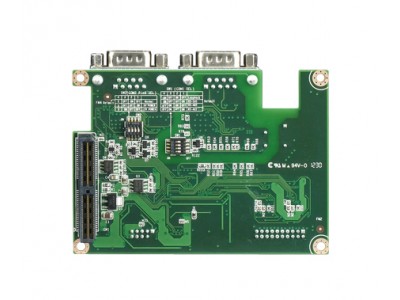

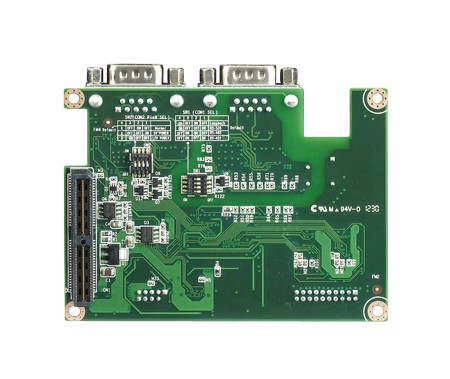

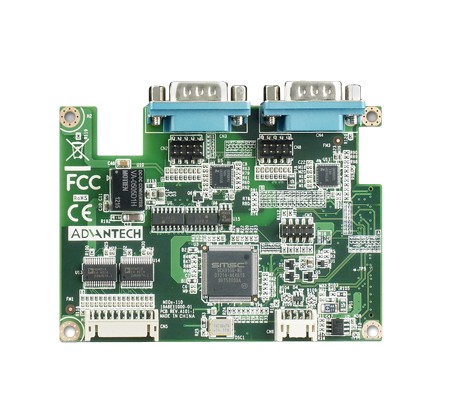

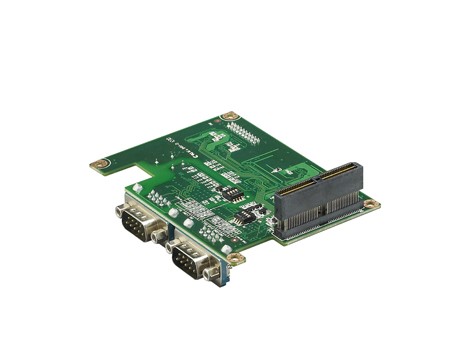

MIOe with 2 x RS-232, 1 x RS-2332/422/485 without power isolation (MIOE-110L-00A1E)
by Advantech
•Part #: MIOE-110L-00A1E
View Detailed Description
$50.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
2 x RS-232, 2 x RS-232/422/485 (with power and isolation), 2 x USB 2.0
- 4 COM support with ±15kV air gap ESD protection: COM1: RS-232/422/485 (Isolation , RS-485 auto flow control), COM2: RS-232/422/485 (Wake on Ring, RS-485 auto flow control, supply 12V/5V power selected by jumper), COM3/4: RS-232 (Wake on Ring)
- Support 2 x USB2.0 by internal box wafer connector

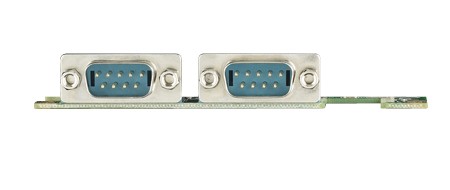

- Optional rear I/O connector at coastline or internal connector
- Mainly compatible with MIO-ultra SBC from mechanical point of view
| Certification | EMC | CE, FCC |
| Environment | Operational Temperature | 0~60°C (32~140°F) |
| Non-Operational Temperature | -40° C ~ 85° C and 60° C @ 95% RH non-condensing | |
| Expansion | MIOe | 1 (LPC, USB) |
| Form Factor | Form Factor | MI/O Extension Module |
| I/O | USB2.0 | 2 |
| COM Port | 3 (2xRS-232, RS-232/422/485), with power | |
| Physical | Dimension (mm) | 100x72mm (3.9"x2.8") |
| Weight | 0.04kg (0.09lb) | |
| Power | Power Type | By MI/O SBC |
