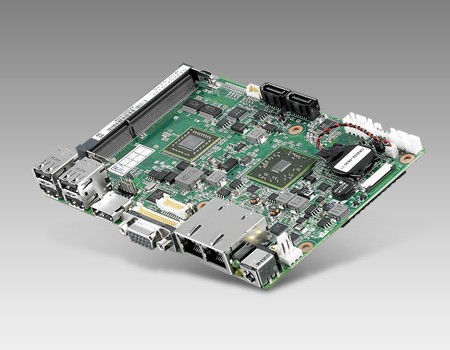

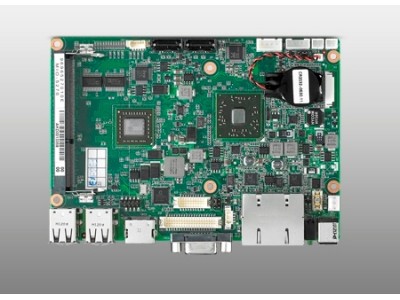

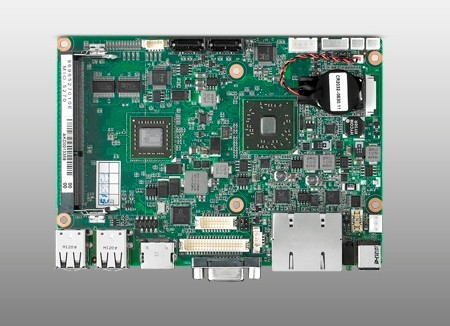

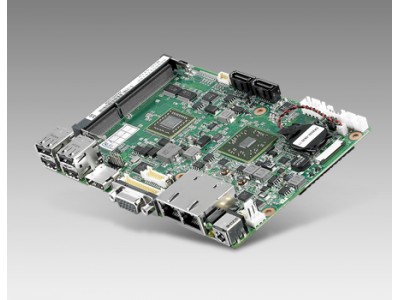

AMD G-Series 1.0GHz Dual Core 3.5" SBC with MIOe Expansion, DDR3, VGA, LVDS, HDMI (MIO-5270D-S0A1E)
by Advantech
•Part #: MIO-5270D-S0A1E
View Detailed Description
$315.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
AMD® G- Series 3.5" MI/O-Compact SBC, DDR3, HDMI, 48-bit LVDS, VGA, 2 GbE, CFast, iManager, MIOe
- Embedded AMD G-Series T40E 1.0GHz Dual Core processor + A50M FCH
- DDR3 1066 MHz SODIMM, supports up to 4GB
- DirectX® 11, 2D/3D Acceleration, multiple display: 48-bit LVDS, HDMI, VGA
- 2 x GbE, with SATAII, 4 x USB, GPIO, CF, 2 x RS-232
- MIOe expansion provides additional I/O via standard Advantech MIO module, or custom.
- Supports 12V input power and DC power hot plug for easy for power integration
- Supports embedded software APIs
Audio | Chipset | Realtek ALC892, High Definition Audio (HD), Line-in, Line out, Mic-in |
Amplifier | Optional via MIOe | |
Display | Chipset | AMD Radeon™ HD 6250 |
Graphic Engine | DirectX® 11 graphics with UVD 3.0, 2D Acceleration, 3D Acceleration, Motion Video Acceleration, Supports DVD, Blu-ray, Hardware decode (UVD 3):H.264, VC-1 & MPEG2 | |
LVDS | Supports single channel 24-bit or dual channel 48-bit LVDS, up to 1920 x 1200 at 60 Hz (pixel clock rate = 80 MHz) | |
VGA | Up to 1920 x 1200 at 60 Hz | |
HDMI | Supports 1920 x 1080p at 60 Hz, 36 bpp, Supports HDMI 1.3, using TMDS data encoding | |
eDP* | Option (supported by request) up to 1920 x 1200 | |
Multiple Display | VGA+LVDS, VGA+HDMI, HDMI+LVDS | |
Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
Non-Operational Temperature | -40° C ~ 85° C and 60° C @ 95% RH non-condensing | |
Ethernet | Speed | 10/100/1000 Mbps |
Controller | GbE1& GbE2: Realtek RTL8111E-VB-GR | |
Connector | 2 RJ45 on Rear I/O | |
Expansion | Mini PCIe | 1 x Full-size |
MIOe | SMBus, 3 x USB2.0, LPC, 4 x PCIe x1, line out, DisplayPort (optional), +5 Vsb/+12 Vsb power, Power On, Rest | |
Internal I/O | USB | 2 x USB 2.0 |
Serial | 3 x RS-232 from COM1/3/4, 1 x RS-232/422/485 from COM2 with auto flow control (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV) | |
I2C | 1 (Shared with SMBus pin) | |
SMBus | 1 | |
GPIO | 8-bit general purpose input/output | |
Memory | Technology | DDR3 1066MHz |
Max. Capacity | 4GB | |
Socket | 1 x 204-pin SODIMM | |
Physical | Dimension (mm) | 146 x 102 mm (5.7" x 4"), same as 3.5" |
Weight | 0.78 kg (1.72 lb), weight of total package | |
Total Height | 34.5mm | |
Power | Power Type | Single 12V DC power input |
Power Supply Voltage | Supports single 12V input, ± 10% | |
Power Consumption (Idle) | 0.53 A @ 12 V (6.36 W) | |
Power Consumption (Full Load) | 0.82 A @ 12 V (9.84 W) | |
Power Management | ACPI | |
Battery | Lithium 3 V / 210 mAH | |
Processor | CPU | AMD G- Series T40E |
Frequency | 1.0 GHz | |
Core Number | 2 | |
L2 Cache | 512 KB | |
Chipset | AMD G-Series APU + A50M FCH | |
BIOS | AMI EFI 32Mbit | |

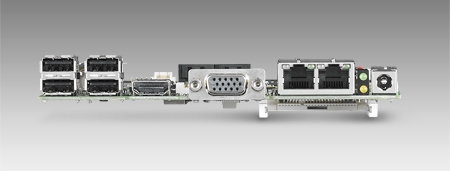

Rear I/O | Ethernet | 2 |
VGA | 1 | |
HDMI | 1 | |
USB | 4 x USB 2.0 | |
LED | Power, HDD | |
DC Power Jack | 1 | |
Storage | CFast | 1 |
mSATA | Supports either mSATA or full size miniPCIe, selected by BIOS, default support miniPCIe | |
SATA | 2, up to 3Gb/s (300 MB/s) | |
Watchdog Timer | Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds |
