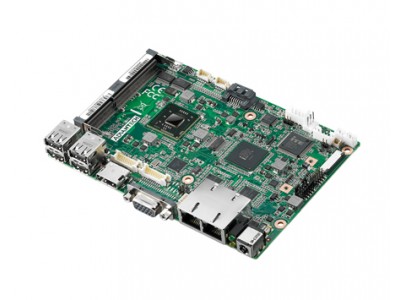

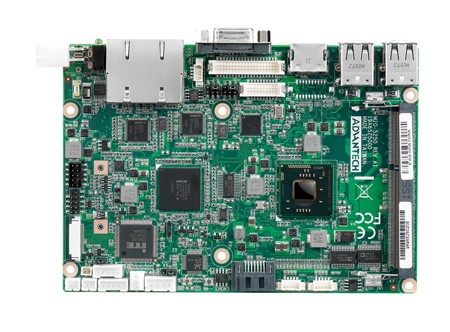

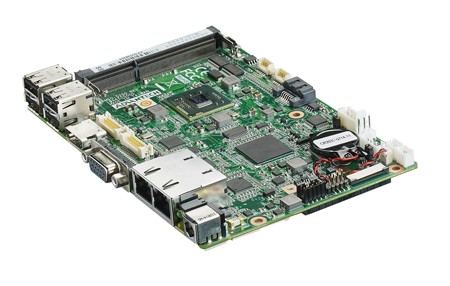

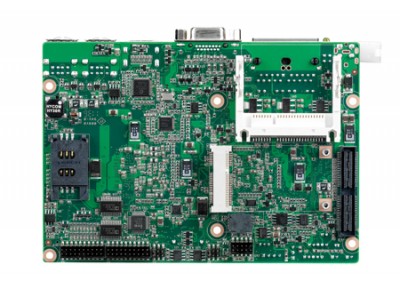

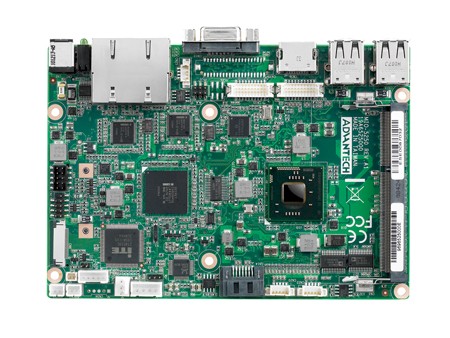

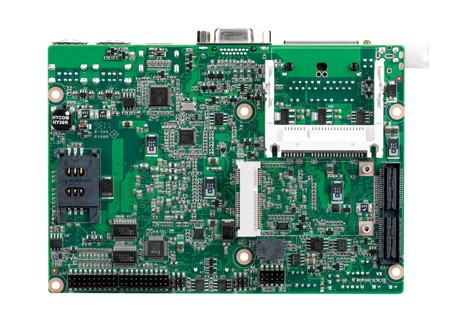

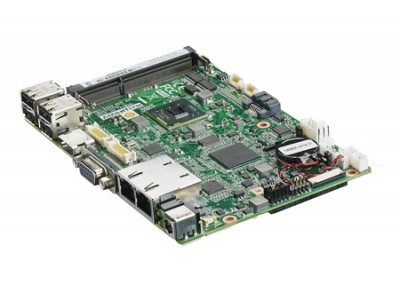

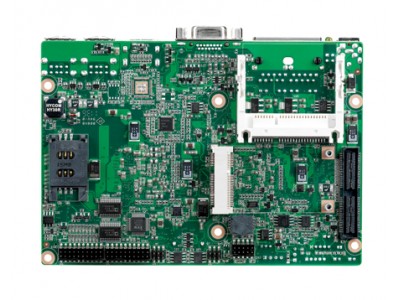

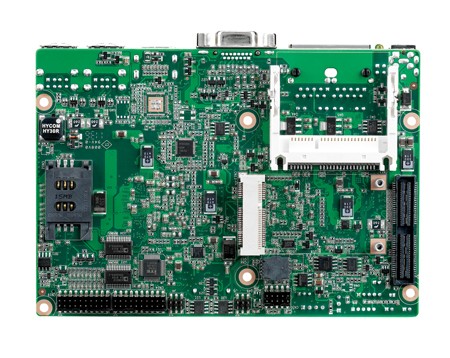

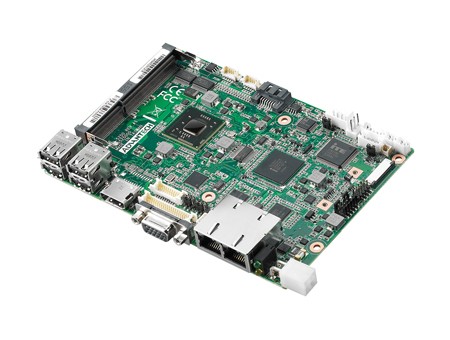

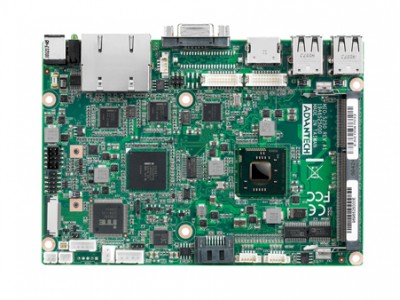

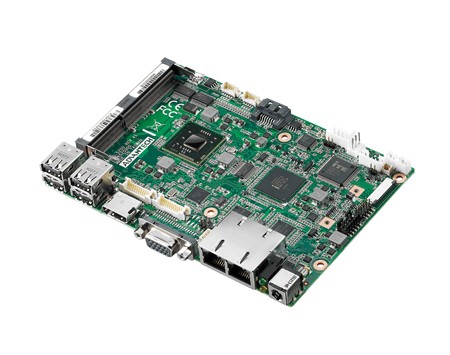

Intel Atom D2550 Dual Core 3.5" SBC with MIOe Expansion,VGA, LVDS, HDMI (MIO-5250D-S8A1E)
by Advantech
•Part #: MIO-5250D-S8A1E
View Detailed Description
$320.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Intel® Atom™ N2600/ D2550, 3.5" MI/O-Compact SBC, DDR3, HDMI, Dual LVDS, VGA, 2 GbE, CFast, iManager, MIOe
- Intel® Atom™ N2550 Dual Core 1.86GHz Dual Core processor + Intel NM10 chipset
- DDR3 1066 MHz SODIMM, supports up to 4GB
- DirectX® 11, 2D/3D Acceleration, multiple display: 24 & 48-bit LVDS, HDMI, VGA
- 2 x GbE, Mini-PCIe and mSATA support, 4 x USB, GPIO, CFast, internal RS-232
- MIOe expansion provides additional I/O via standard Advantech MIO module
- Supports 12V input power and DC power hot plug for easy integration
- Supports embedded software APIs
Audio | Chipset | Realtek ALC892, High Definition Audio (HD), Line-in, Line out, Mic-in |
Amplifier | Optional via MIOe | |
Display | Chipset | Integrated Intel GMA 3600 Series |
Graphic Engine | DirectX 9 and OpenGL3.0 support HW Accelerated Decode: MPEG2, H.264, VC-1 | |
LVDS | 48-bit LVDS2: 1920 x 1200 | |
VGA | Up to 1920 x 1200 at 60 Hz | |
HDMI | Supports 1920 x 1200, Max data rate: up to 1.65 Gb/s, Supports HDMI v1.3 Up to 1080p support | |
Multiple Display | VGA+LVDS, VGA+HDMI, HDMI+LVDS | |
Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
Non-Operational Temperature | -40° C ~ 85° C and 60° C @ 95% RH non-condensing | |
Ethernet | Speed | 10/100/1000 Mbps |
Controller | GbE1& GbE2: Intel 82583V | |
Connector | 2 RJ45 on Rear I/O | |
Expansion | Mini PCIe | 1 x Full-size with SIM holder |
MIOe | SMBus, USB3.0, LPC, 2 x PCIe x1, Line out, DisplayPort/HDMI*, +5 Vsb/+12 Vsb power,Power On, Reset | |
Internal I/O | USB | 2 x USB 2.0 |
Serial | 2 x RS-232 from COM1/4, 2 x RS-232/422/485 from COM2/3 with auto flow control (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV) | |
I2C | 1 (Shared with SMBus pin) | |
SMBus | 1 | |
GPIO | 8-bit general purpose input/output | |
Memory | Technology | DDR3 1066MHz |
Max. Capacity | 4GB | |
Socket | 1 x 204-pin SODIMM | |
Physical | Dimension (mm) | 146 x 102 mm (5.7" x 4"), same as 3.5" |
Weight | 0.74 kg (1.63 lb), weight of total package | |

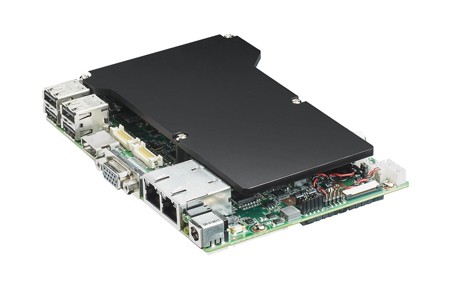

Total Height | Top Side: 20 mm (including heatsink); Bottom Side: 9 mm; PCB: 1.6 mm | |
Power | Power Type | Single 12V DC power input |
Power Supply Voltage | Supports single 12V input, ± 10% | |
Power Consumption (Idle) | 0.829 A @ 12 V (9.95 W) | |
Power Consumption (Full Load) | 1.029 A @ 12 V (12.35 W) | |
Battery | Lithium 3 V / 210 mAH | |
Power Management | ACPI | |
Processor | CPU | Intel Atom D2550 |
Core Number | 2 | |
Frequency | 1.86 GHz | |
L2 Cache | 1MB | |
Chipset | Intel NM10 | |
BIOS | AMI EFI 16Mbit | |

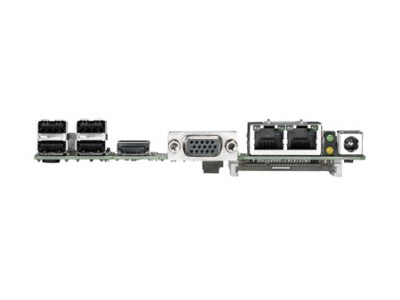

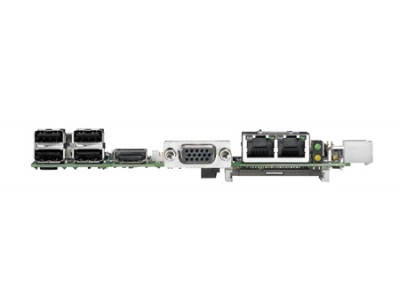

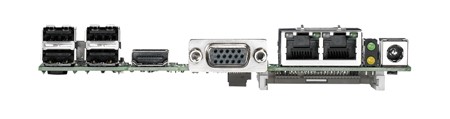

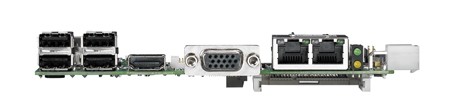

Rear I/O | Ethernet | 2 |
VGA | 1 | |
HDMI | 1 | |
USB | 4 x USB 2.0 | |
LED | Power, HDD | |
DC Power Jack | - | |
Storage | CFast | 1 |
mSATA | Supports either mSATA or full size miniPCIe, selected by BIOS, default support miniPCIe | |
SATA | 1, up to 3Gb/s (300 MB/s) | |
Watchdog Timer | Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds |
