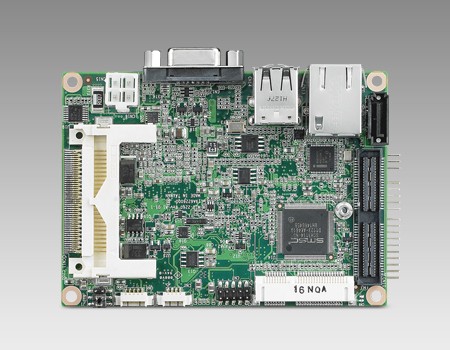

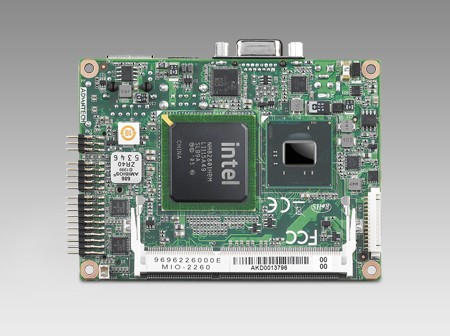

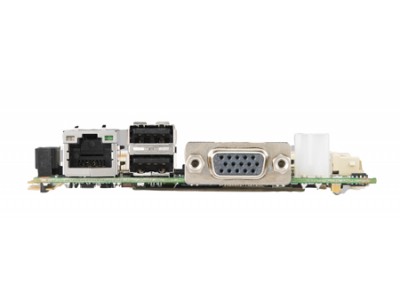

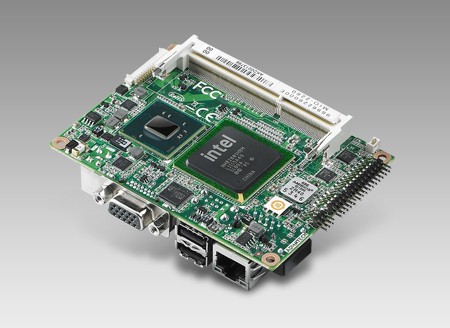

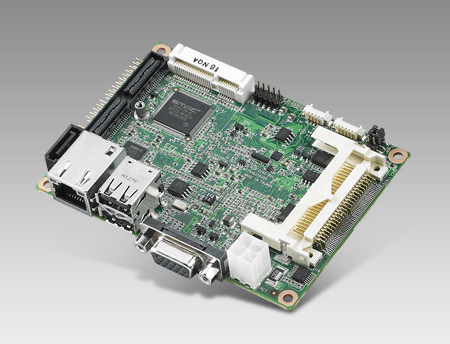

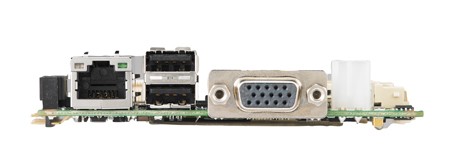

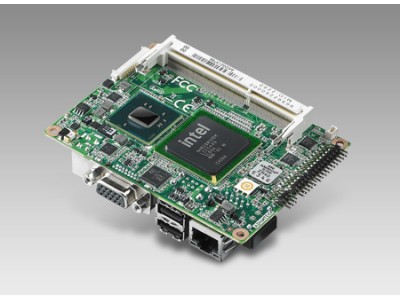

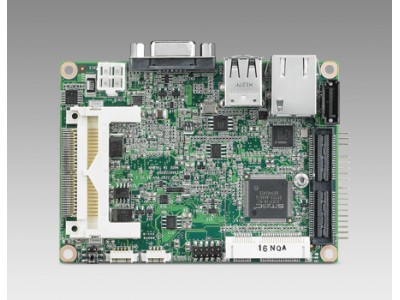

Intel Atom N455 Pico-ITX SBC with DDR3, VGA, LVDS, GbE and MIOe Expansion (MIO-2260NF-S6A1E)
by Advantech
•Part #: MIO-2260NF-S6A1E
View Detailed Description
$240.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Intel® Atom™ N455 Pico-ITX SBC, DDR3, 18-bit LVDS, VGA, 1 GbE, Mini PCIe, 2 USB, 2 COM, MIOe
- Embedded Intel® Atom™ N455 1.66 GHz processor + ICH8M
- DDR3 SODIMM DRAM supports up to 2GB
- Intel Gen 3.5 DX9, MPEG2 Decode in HW, dual display: 18-bit LVDS / VGA
- 1 GbE, Rich I/O interface with SATAII, 2 x USB, GPIO, CF, 2 x RS-232
- MIOe expansion provides additional I/O via standard Advantech MIO module, or custom. 1 x Mini-PCIe expansion
- Supports 12V input power and DC power
- Supports embedded software APIs
| Audio | CODEC | Realtek ALC892 |
| Interface | High Definition Audio (HD) | |
| Connector | Line-in, Line out | |
| Display | Controller | Integrated Intel GMA 3150 |
| VRAM | Optimized Shared Memory Architecture up to 224 MB system memory | |
| Graphic Engine | Intel Gen 3.5 DX9, MPEG2 Decode in HW Embedded Gen3.5+ GFX Core | |
| LVDS | LVDS: Single channel 18-bit LVDS up to WXGA 1366 x 768 | |
| VGA | up to 1400 x 1050(SXGA) | |
| Multiple Display | VGA+LVDS | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40° C ~ 85° C and 60° C @ 95% RH non-condensing | |
| Ethernet | Speed | 10/100/1000 Mbps (Supports Wake on LAN) |
| Controller | ICH8M + Intel 82567V | |
| Connector | RJ45 | |
| Expansion | Mini PCIe | 1 x Half-size |
| MIOe | SMBus, 3 x USB2.0, LPC, 4 x PCIe x1, line out, +5 Vsb/+12 Vsb power, Power On, Reset | |
| Internal I/O | Serial | 2 x RS-232 (ESD protection for RS-232: Air gap ±15 kV, Contact ±8 kV) |
| I2C | 1 (Shares with SMBus pin, supported by request) | |
| SMBus | 1 | |
| GPIO | 8-bit general purpose input/ output (5 V tolerance) | |
| Memory | Technology | DDR3 667 MHz |
| Max. Capacity | 2 GB | |
| Socket | 1 x 204-pin SODIMM | |
| Physical | Dimension (mm) | 100 x 72 mm (3.9" x 2.8") |
| Weight | 0.42 kg (0. 93 lb), weight of total package | |
| Total Height | 33.48 mm | |
| Power | Power Type | AT (Supports DC power hot plug design) |
| Power Supply Voltage | Supports single 12V input, ± 10% | |
| Total peripheral power supply output | 5V@ 2.8A for CPU board and MIOe module totally, 12V@ 2A for MIOe module | |
| Power Consumption (Typical) | 0.64 A, 12 V (7.68 W) | |
| Power Consumption (Max) | 0.86 A, 12 V (10.32 W) | |
| Power Management | ACPI | |
| Battery | Lithium 3 V/210 mAH | |
| Processor | CPU | Intel Atom N455 Single-Core 1.66 GHz Processor |
| Frequency | 1.66 GHz | |
| Core Number | 1 | |
| L2 Cache | 512 KB | |
| Chipset | Intel Atom N455+ ICH8M | |
| BIOS | AMI 16Mbit Flash BIOS | |
| Rear I/O | Ethernet | 1 |
| VGA | 1 | |
| USB | 2 | |
| DC Power Jack | 1 (supported by request) | |
| Storage | CompactFlash | CompactFlach TYPE I (Primary Master IDE Channel) |
| SATA | 1, up to 3Gb/s (300MB/s) | |
| Watchdog Timer | Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds |
