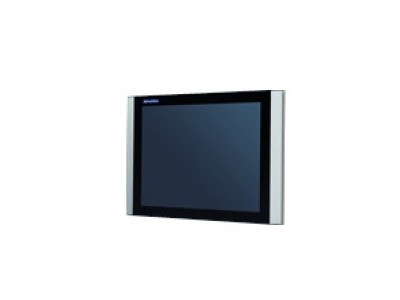

15” XGA LED Industrial Monitor with Fully Flat Resistive Touchscreen (ITM-5115R-MA1E)
by Advantech
•Part #: ITM-5115R-MA1E
View Detailed Description
$720.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
ITM-5115 is a 15" LED TFT-LCD touchscreen monitor specifically designed for industrial applications. It's a stable, rugged display with VGA & DVI outputs. The simple, yet elegant flat plane design provides for easy cleaning, and the Box PC-plus-monitor option offers added flexibility.
- 15" XGA LED backlight touchpanel monitor provides a power-saving design
- -20 to 60° C wide-range operating temperature
- Easy-to-clean 5-wire resistive touch plane with IP54 front panel protection
- For full spec and description of the ITM-5115’s integration with ARK-1500, Click Here.
- VGA & DVI input interface & peripheral I/O with downward-facing inputs

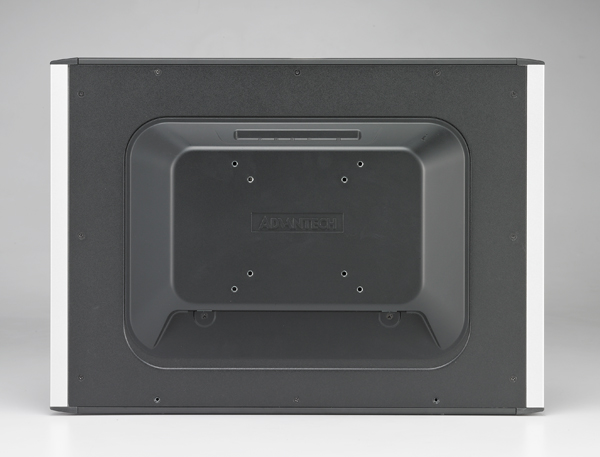

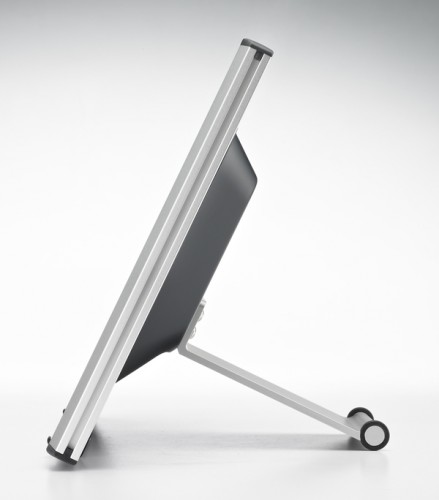

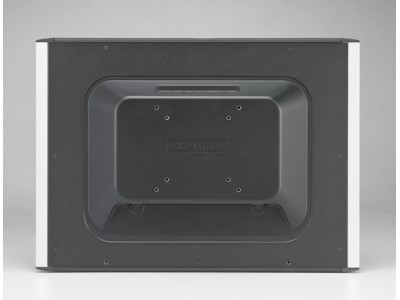

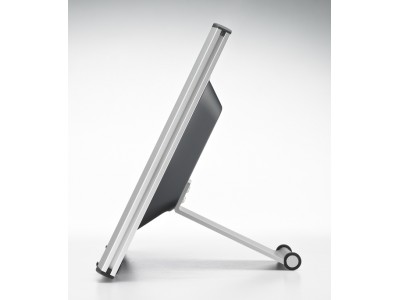

- Supports panel, wall, desktop, and swing-arm VESA mounting
- Combo RS-232 & USB interface for touchscreen function
- AC Adapter not included: Be sure to include Accessories parts 1757003934 and 1702002600 in your order.
| Display | Resolution | 1024 x 768 (XGA) |
| Colors | 16.2 M | |
| Size | 15" | |
| Contrast Ratio | 700 : 1 | |
| Viewing Angle | 80° /80° /80° /60° | |
| Lamp Life (hrs) | 50,000 hrs | |
| Response Time | 8 ms | |
| Brightness | 400 (cd/m2) | |
| Environment | Temperature (Operating) | -20 ~ 60°C (-4 ~ 140°F) |
| Temperature (Storage) | -30 ~ 70° C (-22 ~ 158° F) | |
| Shock Protection | 10G peak acceleration (11 ms duration) | |
| Front panel | IP54 | |
| Humidity | 5 ~ 95% @ 40°C (non-condensing) | |
| System | OSD | M series: Keys: Menu, Up, Down, Enter, Monitor Power on/off Menu Functions: Brightness, Volume, Contrast, Clock Phase, Horizontal Position, Vertical Position, Sharpness |
| Power | 60 W power adapter, with AC 100 ~ 240 V input and DC +12 V @ 5 A output | |
| EMC Compliance | CE/FCC/CCC/BSMI | |
| Safety | CB/UL/CCC/BSMI | |
| I/O | M series: VGA x 1; DVI-D x 1; 12 VDC Jack x 1; USB x1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only) | |
| Touchscreen | Surface Hardness | 3H |
| Durability (Touches) | Silicone rubber finger touching 2 times per second, 250 g per touch. Durability: 36 million touches | |
| Touch Type | 5-Wire resistive touch window |
