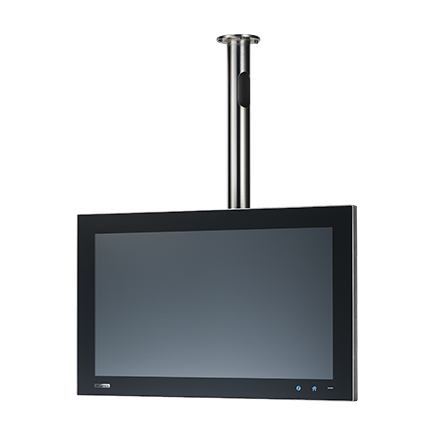

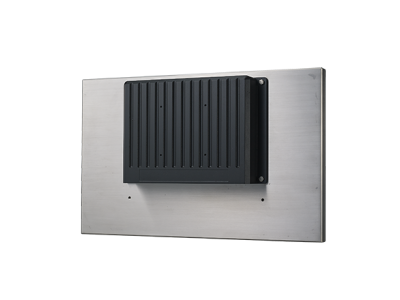

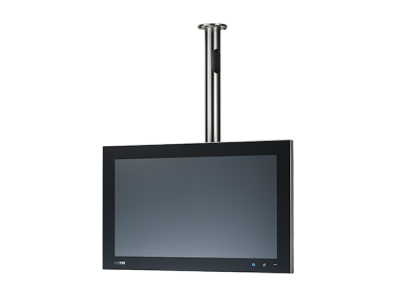

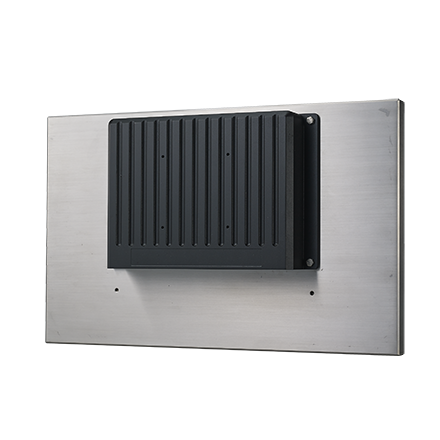

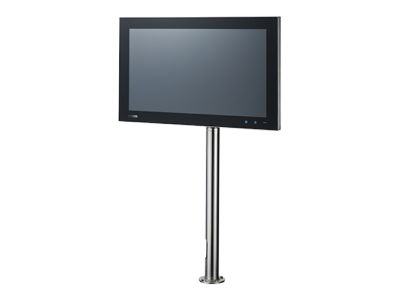

COMPUTER SYSTEM, 21.5" Full HD TFT LED LCD, J1900, w/ TS (IPPC-5211WS-J3AE)
by Advantech
•Part #: IPPC-5211WS-J3AE
View Detailed Description
$3,000.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
- Stainless steel chassis with IP69K waterproof rating
- The detachable product portfolio with accessories for various applications
- Intel® Celeron Processor J1900
- Operating temperature : 0 ~ 50°C
- 21.5" Full HD TFT LED LCD display
- 16:9 widescreen with PCT multi-touch
- Supports iDoor or antenna
- Built-in function and home key button used for intuitive UI
- Fully flat glass front panel with 7H hardness
- Supports 4 GB DDR3L SO-DIMM
- Fanless cooling system
- Front LED indicator to show operating status
- Supports Advantech SNMP subagent
| Environment | Humidity | 10 ~ 95% RH @ 40° C, non-condensing |
| Operating Temperature | 0 ~ 50° C (32 ~ 122° F) | |
| Storage Temperature | -20 ~ 60° C (-4 ~ 140° F) | |
| Vibration Protection | With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration) | |
| General | OS Support | Microsoft® WES7 32bit/64bit Windows 7 32bit/64bit Windows Embedded 8.1 Industry Pro 64bit |
| Weight | 15.8 kg | |
| Power Consumption | 40.8 W | |
| Power Input | 21~27 VDC | |

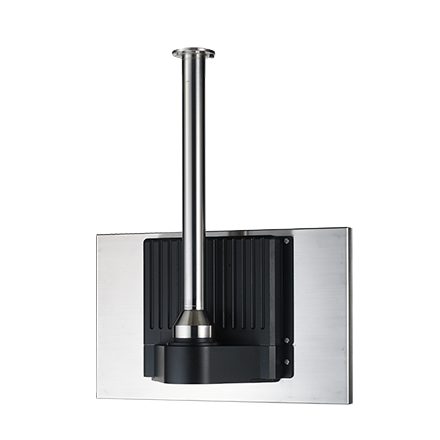

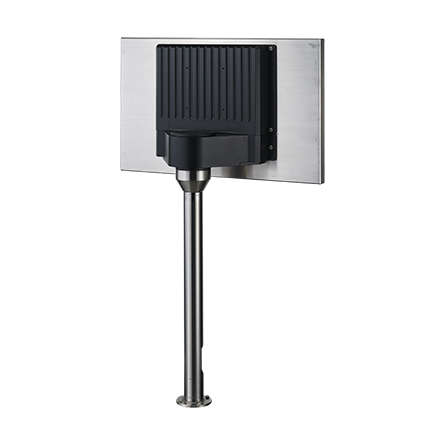

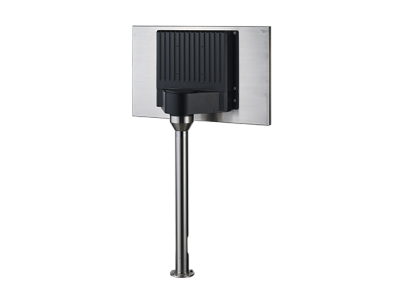

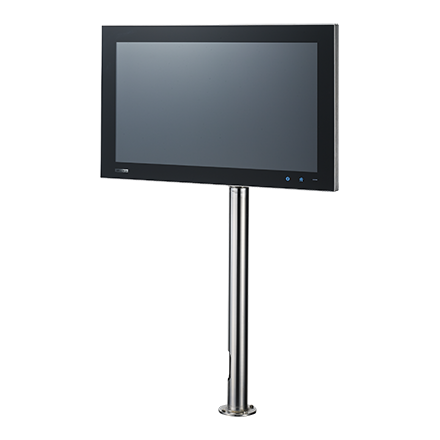

| Mounting | VESA and flange adapter for arm and foot system | |
| Enclosure | Front : Stainless steel, Back : Aluminum / stainless steel (optional) | |
| Dimensions (W x H x D) | 555 x 346.5 x 81 (21.85" x 13.64" x 3.19") | |
| Certifications | IP69k, CE, FCC Class A, UL, CCC, BSMI | |
| BIOS | AMI UEFI | |
| Cooling System | Fanless design | |
| LCD Display | Display Size | 21.5" |
| Display Type | Full HD TFT LED LCD | |
| Luminance (cd/m2) | 300 | |
| Max. Colors | 16.7 M | |
| Max. Resolution | 1920 x 1080 | |
| Viewing Angle (H/V°) | 178/178 | |
| System Hardware | I/O | 1 x 10/100/1000 Mbps RJ45, 1 x RS-232, 1 x RS-232/RS-485/RS-422, 1 x USB 2.0, 1 x USB 3.0, 1 x Waterproof Wireless Antenna (optional) |
| Expansion Slots | 1 x CFast slot (optional), 2.5" SATA | |
| LAN | RTL8111E-VL-CG | |
| Memory | 4 GB DDR3L SO-DIMM, up to 8GB | |
| CPU | Intel® Celeron J1900 2 GHz Processor | |
| Touchscreen | Light Transmission | ≥88% |
| Resolution | 4096 x 4096 dot | |
| Type | Projected capacitive |
