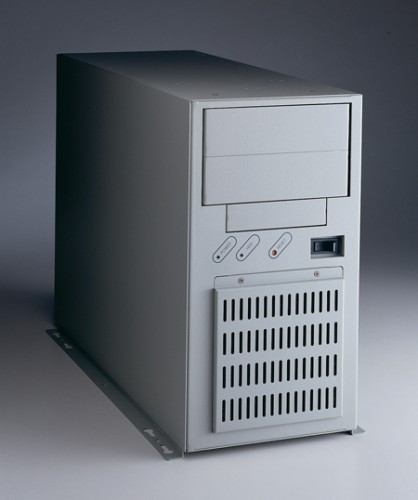

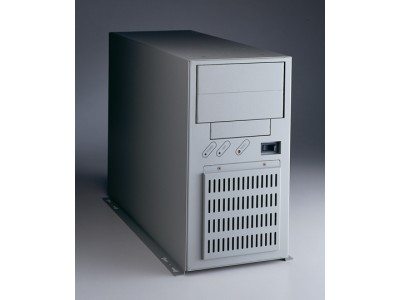

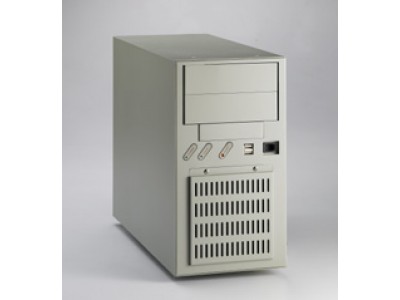

Desktop/Wallmount Chassis for SBC with RoHS (IPC-6608BP-00E)
by Advantech
•Part #: IPC-6608BP-00E
View Detailed Description
$148.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
8-Slot Desktop/Wallmount Chassis with PS/2 or Redundant Power Supply

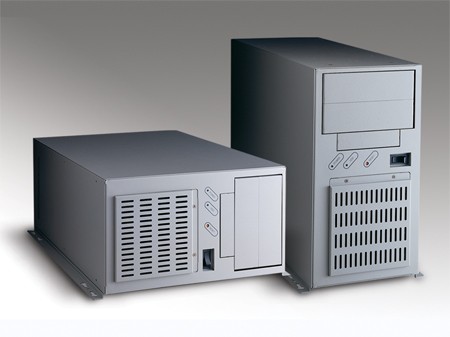

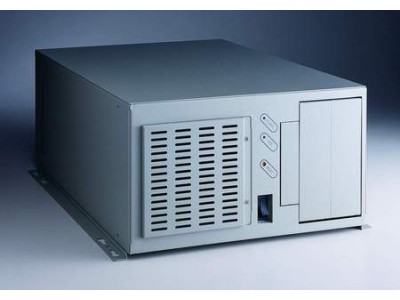

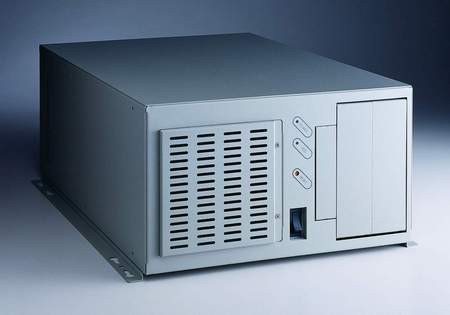

- Bidirectional options to mount the chassis on the wall or workbench

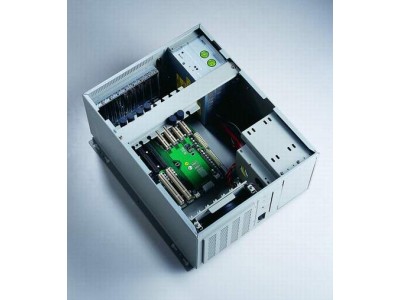

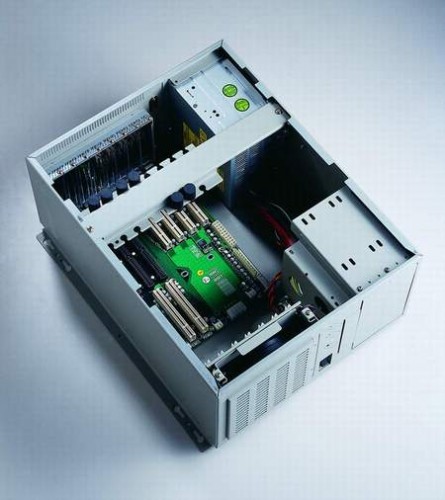

- Equipped with an 8/6-slot ISA or ISA/PCI backplane to hold eight full-length cards
- Two/One front accessed 5.25" disk drives and one 3.5" FDD
- High-speed cooling fan supports abundant cooling and streamlined ventilation
- Shockproof disk drive bay design for industrial applications
| Cooling | System Fan | 1 (12 cm/85 CFM) |
| Air Filter | Yes | |
| Drive Bay | 5.25" | 2 |
| External 3.5" | 1 | |
| Form Factor | Form Factor | PICMG 1.0/1.3 |
| Front I/O Interface | USB2.0 | 2 |
| Miscellaneous | LED Indicators | Power, HDD |
| Control | Power Switch, System reset | |
| Physical Characteristics | Dimensions (W x H x D) | 173 x 315 x 410 mm ( 6.8" x 12.4" x 16.1" ) |
| Weight | 11 kg ( 24.2 lb) |
