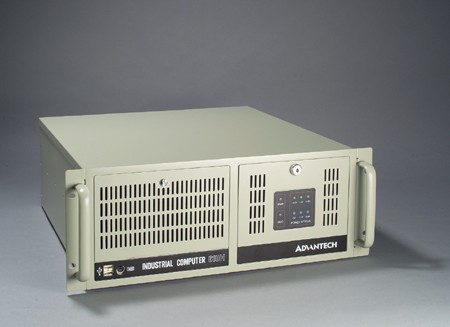

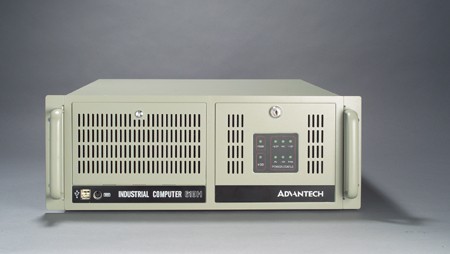

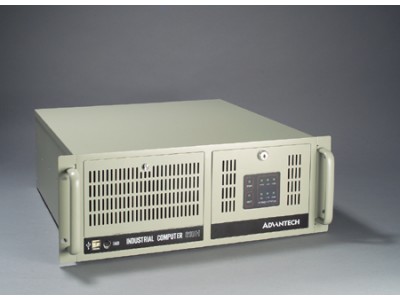

CHASSIS, IPC-610-H MB Bare Chassis RoHS (IPC-610MB-00XHE)
by Advantech
•Part #: IPC-610MB-00XHE
View Detailed Description
$168.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.

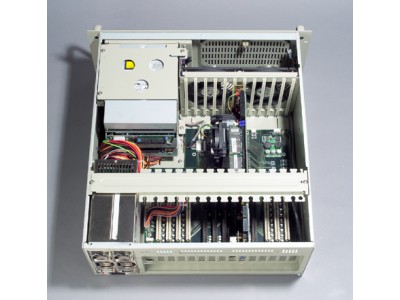

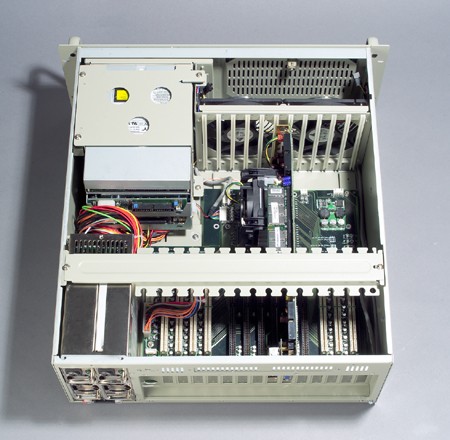

- 4U rackmount chassis supports up to 15 add-on cards

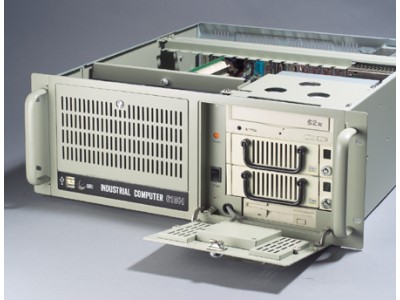

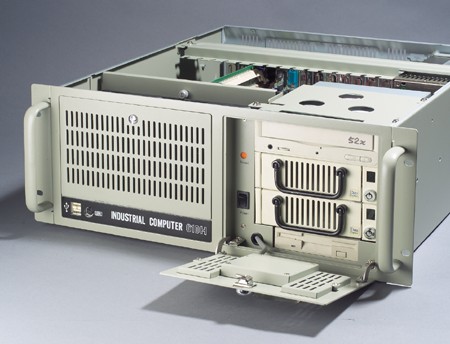

- Shock-resistant disk drive bay design holds up to three 5.25" and one 3.5" disk drives
- Front accessible USB & PS/2 interfaces for easy data transfer

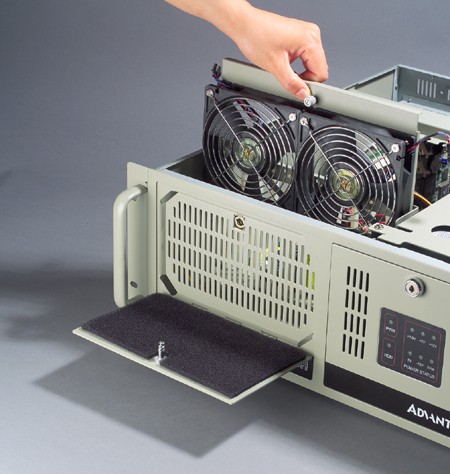

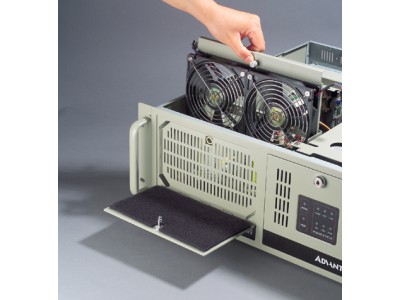

- Dual front-accessible filtered cooling fans provide optimized and streamlined airflow
- Front LEDs indicate power status, and HDD activity
- Lockable front door prevents unauthorized access

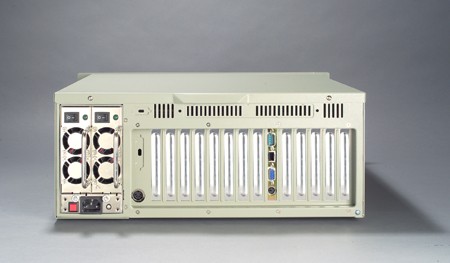

- Supports single PS/2 and redundant ATX power supplies
| Cooling | Air Filter | Yes |
| Fan | 2 ( 12 cm / 85 CFM ) | |
| Disk Drive Bay | 3.5" External Bay | 1 |
| 5.25 External Bay | 3 | |
| Environment | Non-Operating Humidity | 10 ~ 95% @ 40° C, non-condensing |
| Non-Operating Shock | 30 G | |
| Non-Operating Vibration (5 ~ 500 Hz) | 2 G | |
| Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) | |
| Operating Humidity | 10 ~ 85% @ 40° C, non-condensing | |
| Operating Shock | 10 G (with 11 ms duration, half sine wave) | |
| Operating Vibration (5 ~ 500 Hz) | 1 Grms | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) | |
| Form Factor | Form Factor | 4U Rackmount |
| Front I/O Interface | PS/2 | 1 |
| USB2.0 | 2 | |
| Miscellaneous | LED Indicators | Power, HDD and power voltage status |
| Physical Characteristics | Dimensions (W x H x D) | 482 x 177 x 479 mm (19" x 7" x 18.9") |
| Weight | 15 kg ( 33 lb ) |
