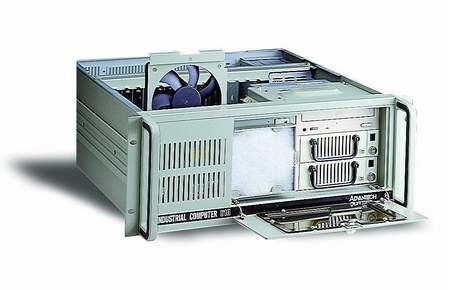

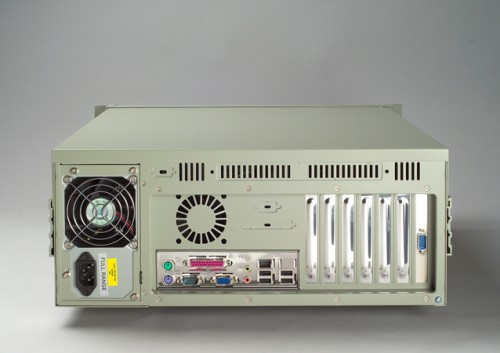

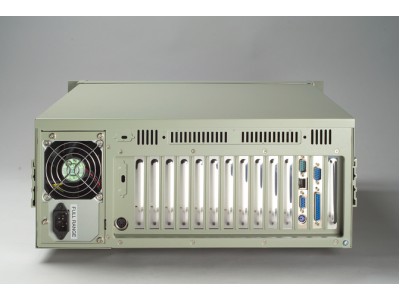

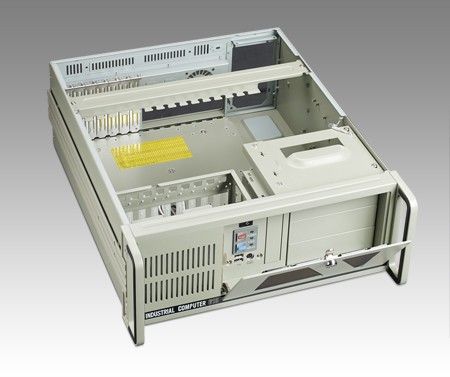

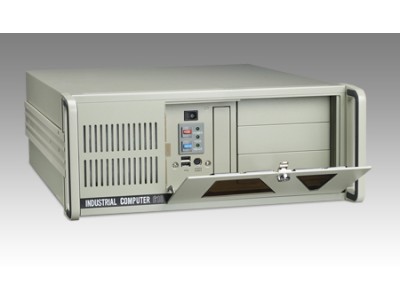

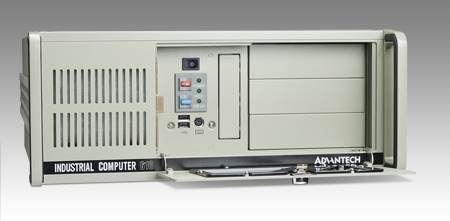

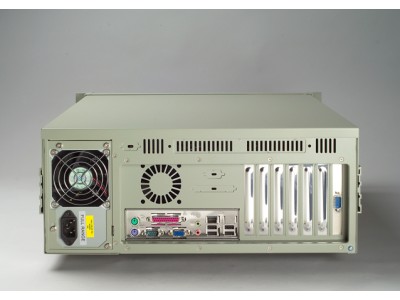

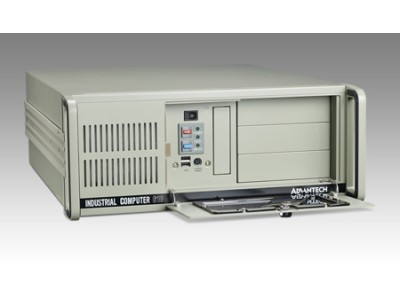

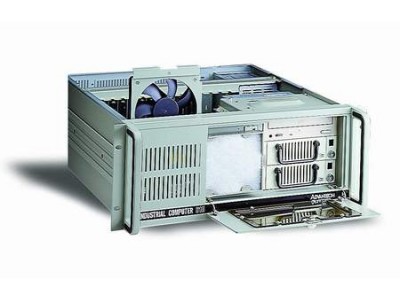

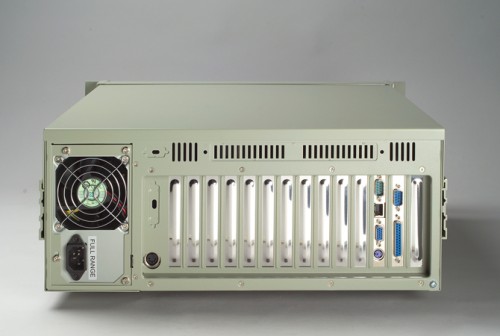

CHASSIS, IPC-610-F BP Bare Chassis (IPC-610BP-00FEE)
by Advantech
•Part #: IPC-610BP-00FEE
View Detailed Description
$178.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
- 4U rackmount chassis supports up to 15 cards

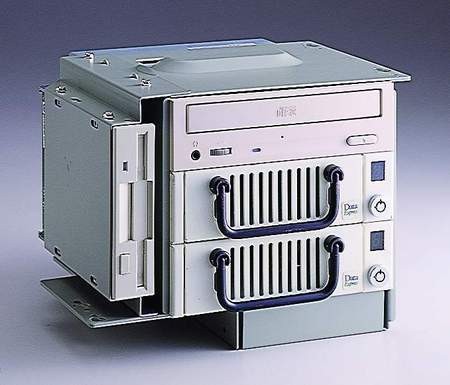

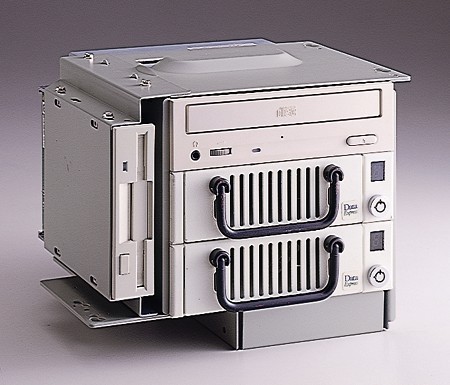

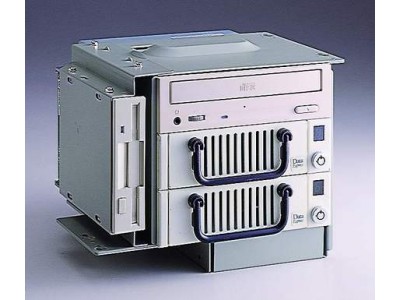

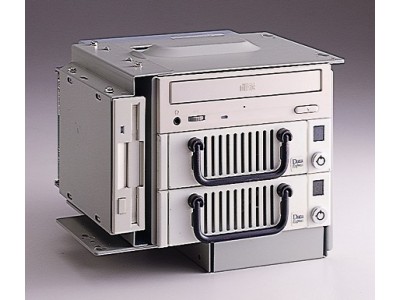

- Shock-resistant disk drive bay design holds up to three 5.25" and two 3.5" (one front-accessible & one internal) disk drives

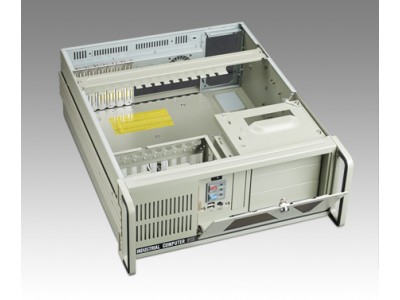

- Special hold-down clamp design with rubber cushions protects the cards from shock and vibration
- Power and HDD activity notification improves system availability
- Front-accessible air filter for easy system maintenance

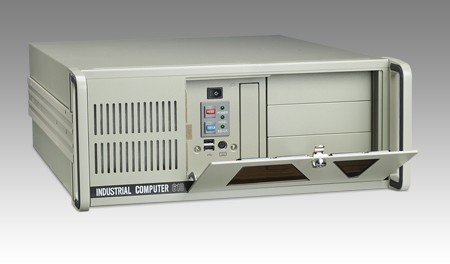

- Lockable front door prevents unauthorized access
- 300 W / 400 W AC and 300 W DC ATX power supply options
| Cooling | Air Filter | Yes |
| Fan | 1 (12 cm / 85 CFM) | |
| Disk Drive Bay | 3.5 Internal Bay | 1 |
| 3.5" External Bay | 1 | |
| 5.25 External Bay | 3 | |
| Environment | Non-Operating Shock | 30 G |
| Non-Operating Humidity | 10 ~ 95% @ 40° C, non-condensing | |
| Non-Operating Vibration (5 ~ 500 Hz) | 2 G | |
| Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) | |
| Operating Humidity | 10 ~ 85% @ 40° C, non-condensing | |
| Operating Shock | 10 G (with 11 ms duration, half sine wave) | |
| Operating Vibration (5 ~ 500 Hz) | 1 Grms | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) | |
| Form Factor | Form Factor | 4U Rackmount |
| Front I/O Interface | PS/2 | 1 |
| USB2.0 | 2 | |
| Miscellaneous | LED Indicators | Power, HDD and keyboard lock |
| Physical Characteristics | Dimensions (W x H x D) | MB 482 x 177 x 499 mm (19" x 7" x 19.6) / BP 482 x 177 x 449 ( 19" x 7" x 17.8") |
| Weight | 16.2 kg (35.6 lb) |
