19" 1280x1024 LED Panel 1200nits High Brightness Display Kit (IDK-2119N-K2SXA2E)
by Advantech
•Part #: IDK-2119N-K2SXA2E
View Detailed Description
$471.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.

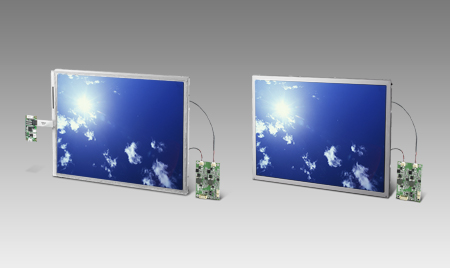

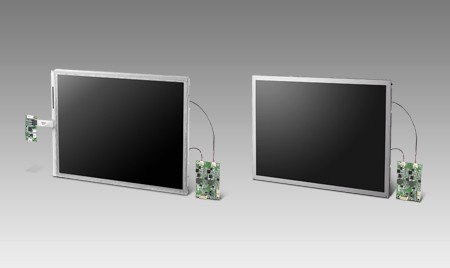

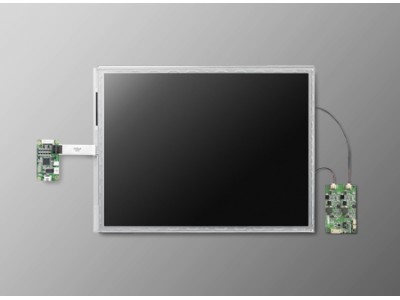

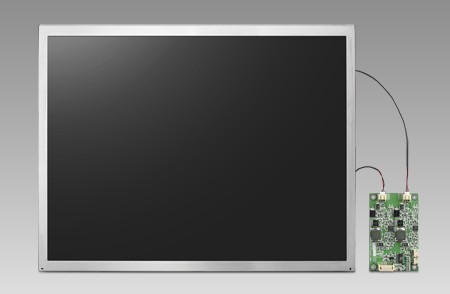

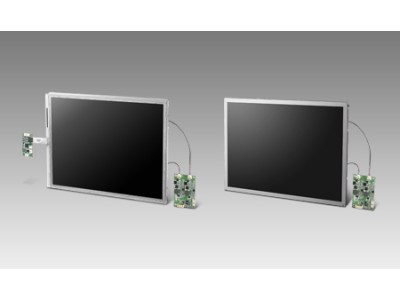

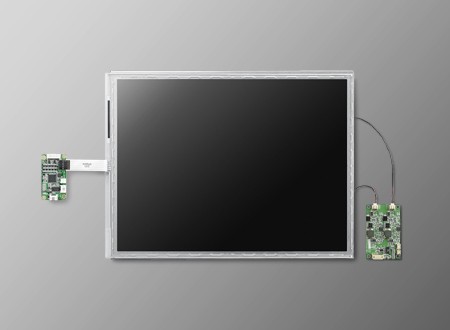

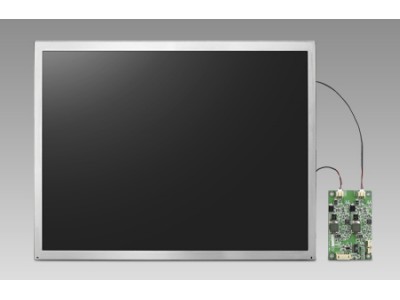

19” SXGA 1,200cd/m2 Ultra High Brightness Industrial Display Kit with LED B/L, LVDS Interface
- 19” LCD supports 1280 x 1024 pixels
- Ultra-high brightness of 1200cd/m2 with LED backlight
- 0℃~+50℃ wide operating temperature support
- High contrast ratio of 1100:1
- Superior sunlight readability
- Low power consumption 36.64W
- LVDS signal interface
- AR surface treatment (Optional)
- Manually VR brightness control (Optional)
| Display | Size | 19" |
| Resolution | 1280 x 1024 (SXGA) | |
| Brightness (cd/m2) | 1200 (cd/m2) | |
| Colors | 16.7 M | |
| Response Time | 5 ms | |
| Viewing Angle (H/V°) | 80° / 80° / 85° / 85° | |
| Operating Temperature | 0 ~ 50° C | |
| Signal Interface | 2 Channel LVDS | |
| Contrast Ratio | 1000 : 1 | |
| Environment | Operational Temperature | 0 ~ 50° C |
| LCD Display | Resolution | 1280 x 1024, SXGA |
| Colors | 16.7 M | |
| Viewing Angle (H/V°) | 170/160 | |
| Contrast Ratio | 1100 : 1 | |
| Size | 19" | |
| Brightness | 1200 nits | |
| Touch Screen | N/A | |
| Response Time (ms) | 5 | |
| Supply Voltage | 5V | |
| Dimension | 396 x 324 x 17.8 | |
| Power Consumption | 35.42W | |
| Signal Interface | 2 Channel LVDS | |
| Weight | 2600g | |
| Backlight Type | LED |
