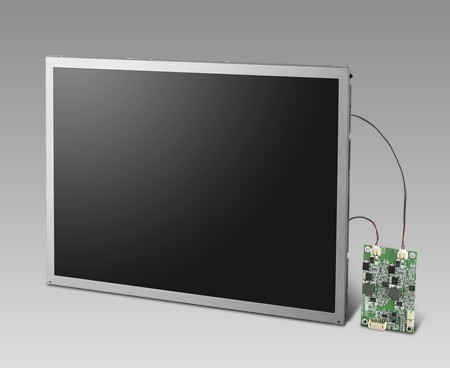

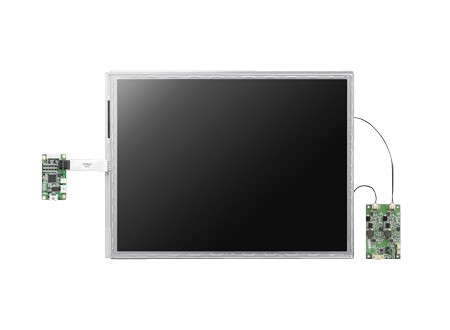

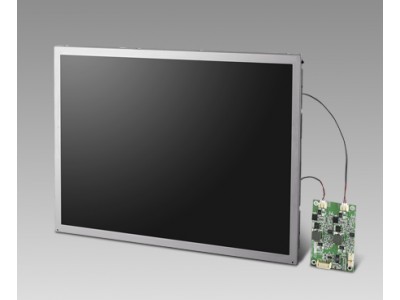

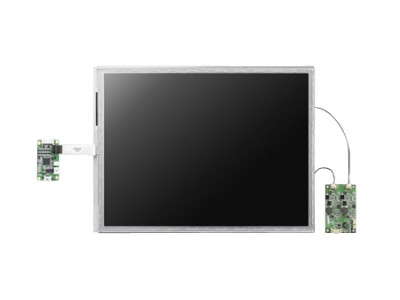

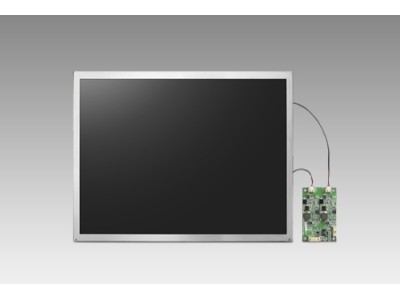

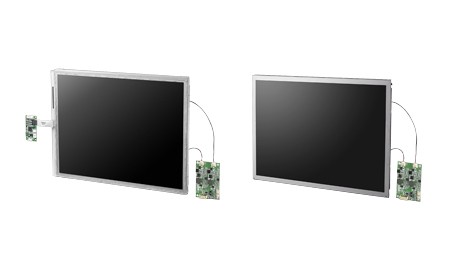

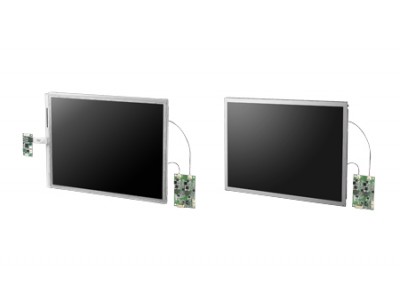

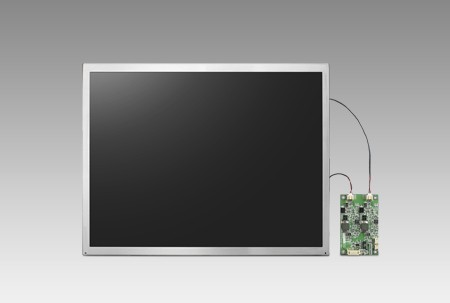

15" 1024 x 768 LED panel 1200nits High Brightness Display Kit (IDK-2115N-K2XGB1E)
by Advantech
•Part #: IDK-2115N-K2XGB1E
View Detailed Description
$342.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.

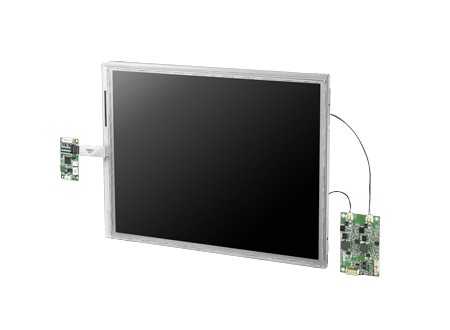

15” XGA 1,200cd/m2 Ultra High Brightness Industrial Display Kit with LED B/L, LVDS Interface
- 15” LCD supports 1024 x 768 pixels
- Ultra-high brightness of 1200cd/m2 with LED backlight
- -20℃~+70℃ wide operating temperature support
- High contrast ratio of 700:1
- Superior sunlight readability
- Low power consumption 16.06W
- LVDS signal interface
| Environment | Operational Temperature | -20 ~ 70° C |
| LCD Display | Resolution | 1024 x 768, XGA |
| Colors | 262K/16.2M | |
| Viewing Angle (H/V°) | 160/140 | |
| Contrast Ratio | 700 : 1 | |
| Size | 15" | |
| Brightness | 1200 nits | |
| Response Time (ms) | 25 | |
| Supply Voltage | 3.3V | |
| Dimension | 326.5 x 253.5 x 11.5 | |
| Power Consumption | 16.06W | |
| Signal Interface | 1 Channel LVDS | |
| Weight | 1350g | |
| Backlight Type | LED |
