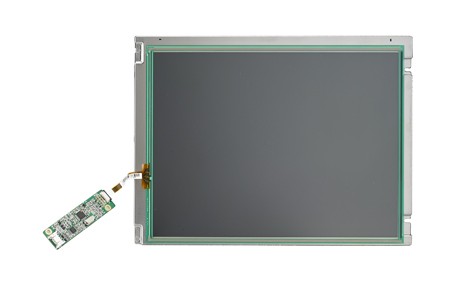

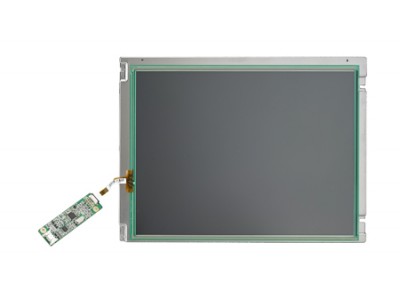

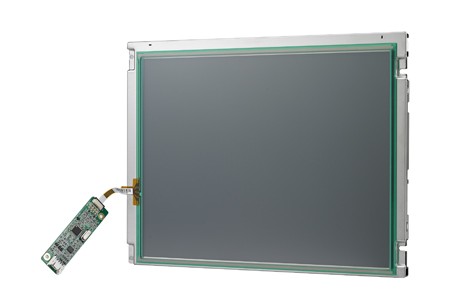

10.4" 800x600 LVDS 230nits LED 6/8 bit with 4-wire Resistive Touch Display Kit (IDK-1110R-23SVA1E)
by Advantech
•Part #: IDK-1110R-23SVA1E
View Detailed Description
$201.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
10.4" SVGA Industrial Display kit with Resistive touch Solution
- 10.4" LCD supports 800 x 600 pixels
- Brightness of 400 cd/m2 with LED backlight
- 4-wire resistive touch solution
- High contrast ratio of 700:1
- wide operating temperature (-10 ~ 60° C)
- LVDS signal interface
- Low power consumption 4.8 W(panel only)
- LED driver board built-in, and touch controller included (USB)
This product by itself does not include LVDS/backlight cables. Please contact for assistance.
| Environment | Operational Temperature | -10 ~ 60° C |
| LCD Display | Size | 10.4" |
| Resolution | 800x600, SVGA | |
| Colors | 262K/16.2M | |
| Viewing Angle (H/V°) | 160/130 | |
| Contrast Ratio | 500 : 1 | |
| Response Time (ms) | 35 | |
| Brightness | 230nits | |
| Touch Screen | 4-wire Resistive Touch | |
| Backlight Type | LED | |
| Backlight Life (hrs) | 30000 | |
| Signal Interface | 1 Channel LVDS | |
| Weight | 380g | |
| Touchscreen | Durability | 1 million touches |
| Surface Hardness | 3H | |
| Transparency | 0.82 |
