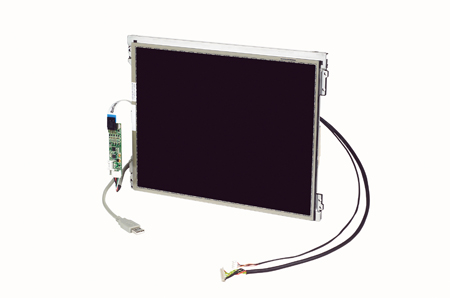

8.4" 800x600 LVDS 450nits Wide Temp LED 4-wire Resistive Touch Display Kit (IDK-1108R-45SVA1E)
by Advantech
•Part #: IDK-1108R-45SVA1E
View Detailed Description
$231.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
8.4" SVGA Industrial Display kit with Resistive touch Solution
- 8.4" LED DisplayLCD supports 800 x 600 pixels
- Wide operating temperature (-5 ~ 60° C)
- Brightness of 450 cd/m2 with LED backlight
- 4-wire resistive touch solution
- High contrast ratio of 600:1
- High uniformity of 85%
- LVDS signal interface
- Low power consumption 2.94 W (panel only)
- LED driver board built in and touch controller included (USB)
This product by itself does not include LVDS/backlight cables. Please contact for assistance.
| Environment | Operational Temperature | -20 ~ 60° C |
| LCD Display | Resolution | 800x600, SVGA |
| Colors | 262K/16.2M | |
| Viewing Angle (H/V°) | 160/140 | |
| Backlight Life (hrs) | 50000 | |
| Contrast Ratio | 600 : 1 | |
| Size | 8.4" | |
| Brightness | 450nits | |
| Touch Screen | 4-wire Resistive Touch | |
| Interface | LVDS | |
| Response Time (ms) | 30 | |
| Backlight Type | LED | |
| Signal Interface | 1 Channel LVDS | |
| Weight | 330g | |
| Touchscreen | Durability | 1 million touches |
| Surface Hardness | 3H | |
| Transparency | 0.81 |
