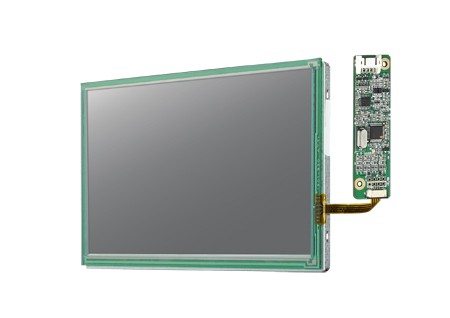

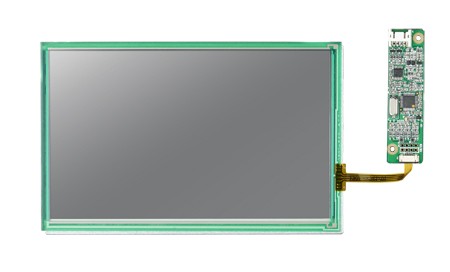

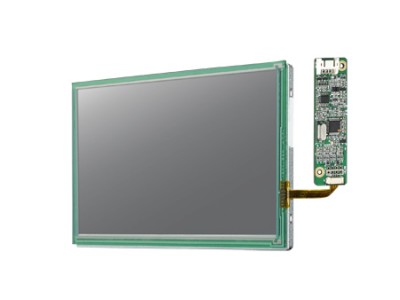

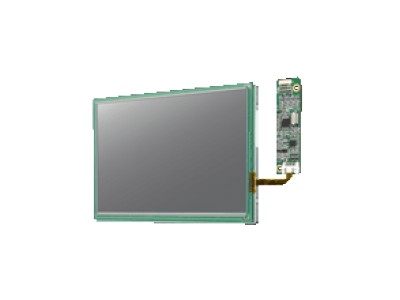

7" 1024x600 LVDS 500nits -20~70℃ LED 6/8-bit with 4-wire Resistive Touch Display Kit (IDK-1107WR-50WSA1E)
by Advantech
•Part #: IDK-1107WR-50WSA1E
View Detailed Description
$136.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
7" WVGA/WSVGA Industrial Display kit with Touch Solution
- 7" LCD supports 800 x 480 with LED backlight panel (WVGA)
- Brightness of 400 & 500 cd/m2 with LED backlight
- 4-wire resistive touch solution
- High contrast ratio of 1000:1 & 700:1
- wide operating temperature (-20~ 70° C)
- LVDS 6/8 bit signal interface
- Low power consumption 3.35 W & 3.57 W (panel only)
- LED driver board built-in, and touch controller included (USB)
This product by itself does not include LVDS/backlight cables. Please contact for asssitance.
| LCD Display | Size | 7" |
| Resolution | 1024x600, WSVGA | |
| Colors | 262K/16.2M | |
| Viewing Angle (H/V°) | 150/145 | |
| Contrast Ratio | 700 : 1 | |
| Brightness | 500nits | |
| Touch Screen | 4-wire Resistive Touch | |
| Interface | LVDS | |
| Operating Temperature | -20 ~ 70° C | |
| Response Time (ms) | 25 | |
| Backlight Type | LED | |
| Signal Interface | 1 Channel LVDS |
