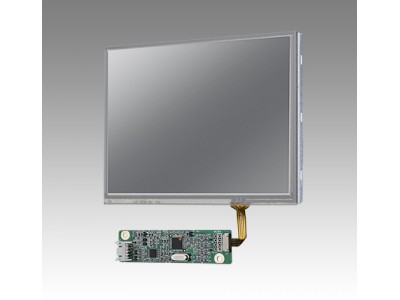

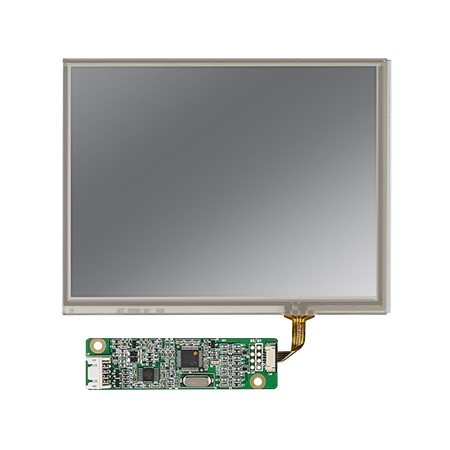

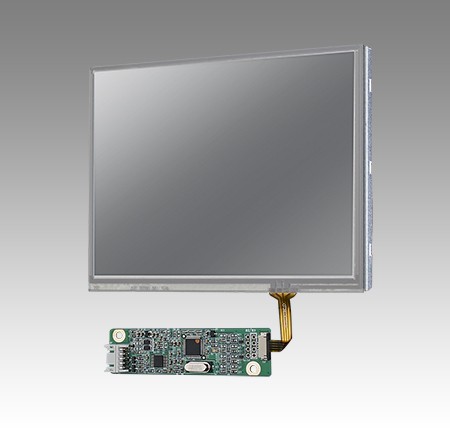

5.7” 640X480 VGA 500nits with 4-wire Resistive Touch Display Kit (IDK-1105R-50VGA1E)
by Advantech
•Part #: IDK-1105R-50VGA1E
View Detailed Description
$131.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The Advantech IDK-1105 series comes with a 5.7" industrial grade LCD display with 4-wire resistive touch. The series is also available with flexible options for LCD screens enhanced treatment such as Anti-Reflection surface treatment and optical bonding solution. IDK-1105 series supports 4-wire resistive touch with low power consumption at the maximum of 1.8 Watt. IDK-1105 series is ideal for embedded applications which customers have maximum flexibility for mechanical design.
- 5.7" LCD supports 640 x 480 pixels and wide operating temperature (-20 ~ 70° C)
- Brightness of 500 cd/m2 with LED backlight
- 4-wire resistive touch solution
- LVDS signal interface
- Low power consumption 1.8 Watt (panel only)
- LED driver board built in
- Touch controller included (USB)
| LCD Display | Resolution | 640x480, VGA |
| Colors | 262 k | |
| Viewing Angle (H/V°) | 140/100 | |
| Contrast Ratio | 250 : 1 | |
| Size | 5.7" | |
| Brightness | 500nits | |
| Touch Screen | 4-wire Resistive Touch | |
| Interface | LVDS | |
| Operating Temperature | -20 ~ 70° C | |
| Response Time (ms) | 50 ms | |
| Backlight Type | LED | |
| Signal Interface | 1 Channel LVDS |
