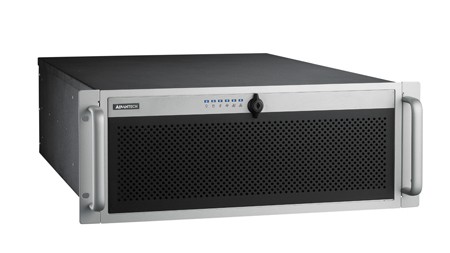

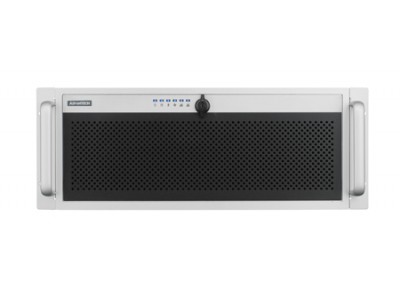

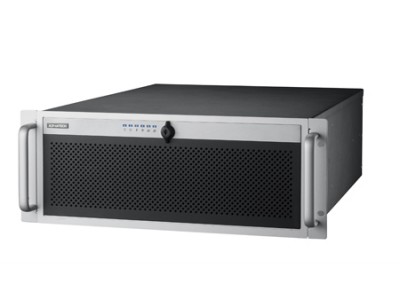

4U Rackmount Short-Depth Bare Chassis with Motherboard Support, 4 Mobile HDD, 80 PLUS PSU Support (HPC-7442MB-00XE)
by Advantech
•Part #: HPC-7442MB-00XE
View Detailed Description
$413.00
The HPC-7442 series is a 4U rackmount chassis designed for digital surveillance or SCADA(Supervisory Control And Data Acquisition) server applications which have high storage demand. With the latest in industrial design, the HPC-7442 represents a breakthrough from the traditional, rigid concept of industrial PCs, and provides users with both a high-performance and a state-of-the-art operating platform. This series supports versatile EATX/ATX motherboards, with a highly efficient switching power supply and easy-to-maintain cooling fans. The series provides four or eight(after adding "storage upgrade kit") SAS/SATA HDD trays, which provide a flexible solution for data storage. Other data storage options include one slim-type drive bay for optical disk drives, and one 3.5" drive bay for internal hard drive disk. The unique alarm module monitors system status such as power, HDD, temperature, fan, and LAN, to minimize system downtime. Meanwhile, system fan's rotation speed increases or decreases depending on high or low temperature inside the chassis, to minimize system noise while light system loading. A wide range of standard computing peripherals can be integrated with these chassis to accommodate robust applications in rugged environments, 24 hours a day, 7 days a week.

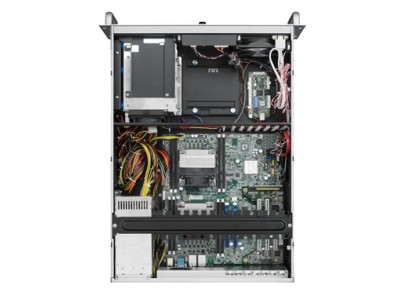

- Supports EATX/ATX motherboard in short-depth (23.65 in.) 4U rackmount/tower chassis

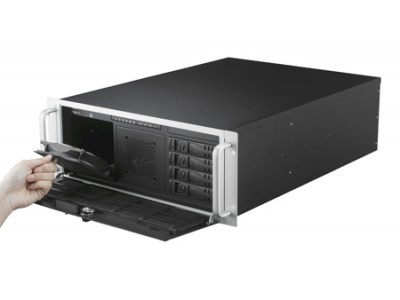

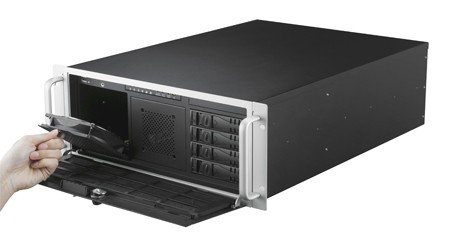

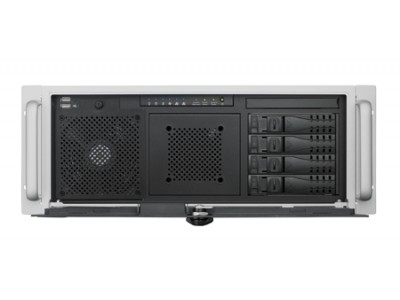

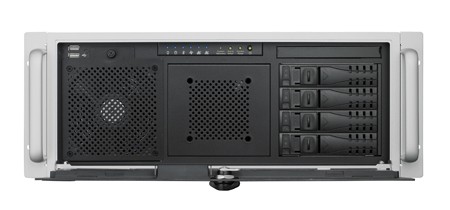

- Shock-resistant disk drive bay holds four mobile 3.5" and 2.5" SAS/SATA disk trays, one slim optical disk drive, and one 3.5" internal drive

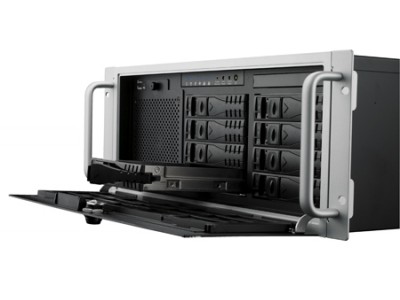

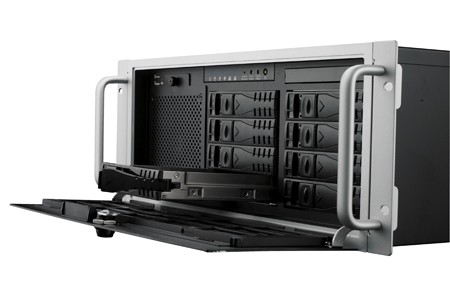

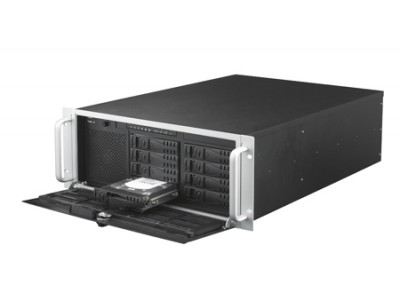

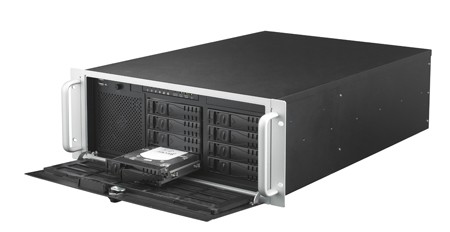

- With installation of optional storage upgrade kit, eight mobile HDD trays for multi-TB storage capacity
- Supports 80 PLUS single/redundant power supplies
- Front-accessible system fan without opening top cover for easy maintenance
- LED indicators and audible alarm notification for system fault detection
- Smart fan speed control for system fans
- Remote management (with new alarm board + SUSIAccess)
| Cooling | System Fan | 1 (12 cm /114 CFM) + 1 (8 cm/55 CFM) |
| Air Filter | Yes | |
| Disk Drive Bay | Slim ODD | 1 |
| 3.5 Internal Bay | 1 | |
| Hots-swap External | 4 (compatible with 3.5" or 2.5" devices) | |
| Environment | Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -40 ~ 70° C (-40 ~ 156° F) | |
| Operating Humidity | 10 ~ 95% @ 40° C, non-condensing | |
| Non-Operating Humidity | 10 ~ 95% @ 60° C, non-condensing | |
| Operating Vibration (5 ~ 500 Hz) | 1 Grms | |
| Non-Operating Vibration (5 ~ 500 Hz) | 2 G | |
| Shock | 10 G (with 11 ms duration, half sine wave) | |
| Front I/O Interface | USB2.0 | 2 |
| Intelligent System Module | Remote Monitoring | CPU/System fan speed , CPU/System temperature , motherboard voltage |
| Miscellaneous | LED Indicators | Power, HDD, temperature, fan, LAN1, and LAN2 |
| Rear Panel | Five 9-pin D-Sub & one 68-pin SCSI openings | |
| Physical Characteristics | Weight | 18.5 kg (40.68 lb) |
| Dimensions (W x H x D) | 482 x 177 x 600 mm (19" x 7.0" x 23.6") |
