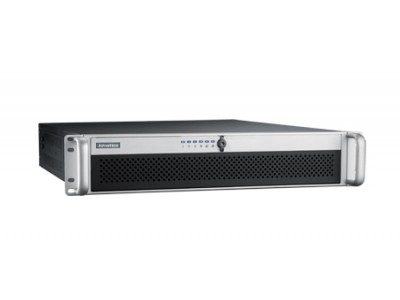

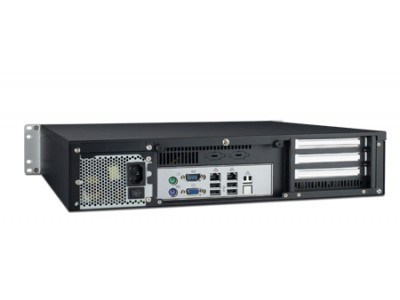

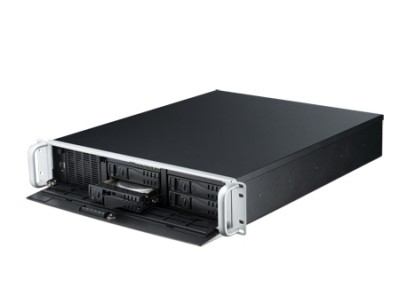

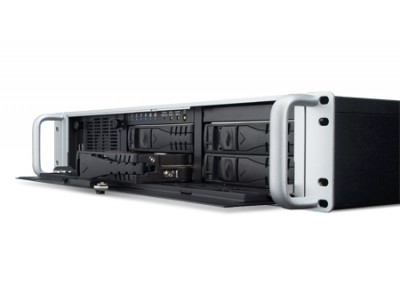

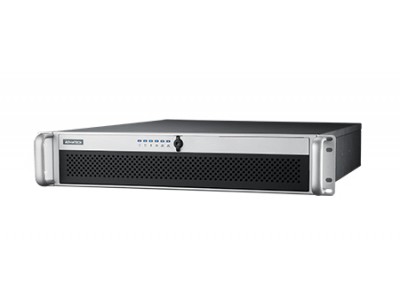

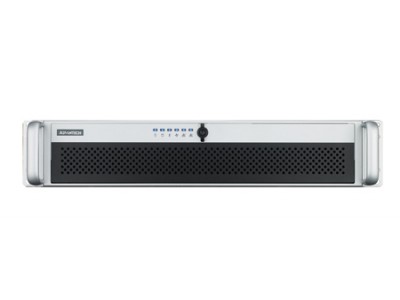

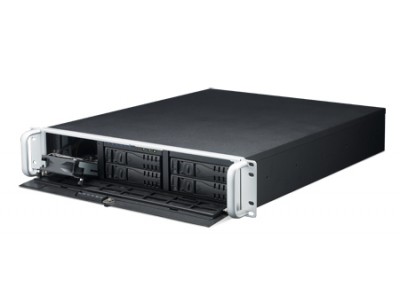

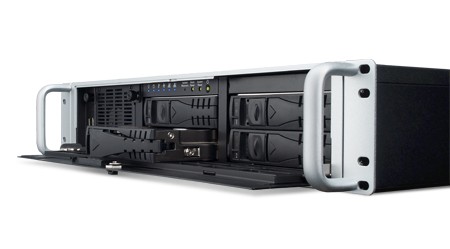

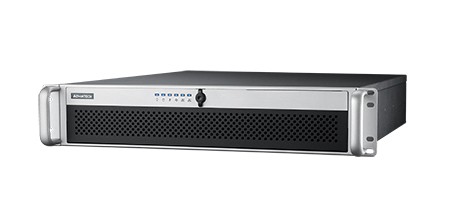

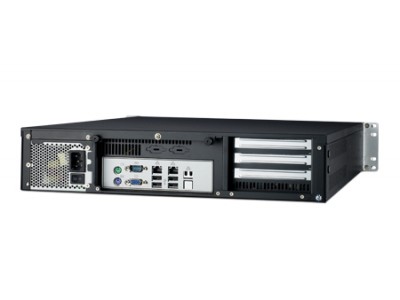

2U Rackmount Chassis for ATX Motherboard with 4 SAS/SATA HDD Trays (HPC-7242MB-00XE)
by Advantech
•Part #: HPC-7242MB-00XE
View Detailed Description
$403.00
The HPC-7242 series is a 2U rackmount chassis designed for digital surveillance or SCADA(Supervisory Control And Data Acquisition) server applications which have high storage demand. With the latest in industrial design, the HPC-7242 represents a breakthrough from the traditional, rigid concept of industrial PCs, and provides users with both a high-performance and a state-of-the-art operating platform. This series supports versatile ATX/MicroATX motherboards, with a highly efficient switching power supply and easy-to-maintain cooling fans. The series provides four SAS/SATA HDD trays, which provide a flexible solution for data storage. Other data storage options include one slim-type drive bay for optical disk drives, and two 2.5" drive bay for internal hard drive disk. The unique alarm module monitors system status such as power, HDD, temperature, fan, and LAN, to minimize system downtime. Meanwhile, system fan's rotation speed increases or decreases depending on high or low temperature inside the chassis, to minimize system noise while light system loading. A wide range of standard computing peripherals can be integrated with these chassis to accommodate robust applications in rugged environments, 24 hours a day, 7 days a week.
- 2U rackmount chassis supports ATX motherboard

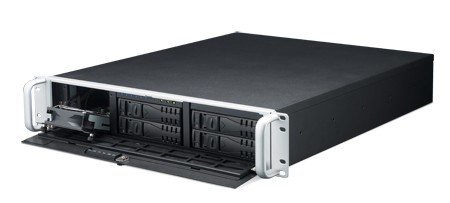

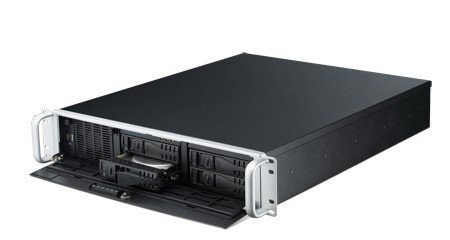

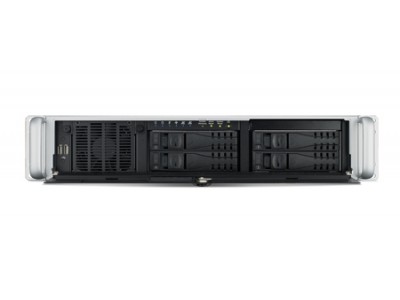

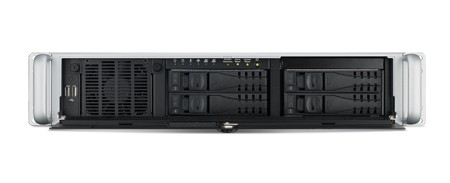

- Shock-resistant disk drive bay holds four hot-swap 3.5" and 2.5" SAS/SATA disk trays for RAID 5/10 support, one slim optical disk drive, and two 2.5" internal drives
- LED indicators and audible alarm notification for system fault detection
- Front-accessible system fan without opening top cover for easy maintenance
- Remote management (with SUSIAccess)
- Supports 80plus single and redundant power supply
| Cooling | System Fan | 1 (8 cm/47 CFM) + 2 (6 cm/28 CFM) for SAS/SATA storage unit |
| Air Filter | Yes | |
| Disk Drive Bay | Slim ODD | 1 |
| 2.5" Internal | 1 | |
| Hots-swap External | 4 (compatible with 3.5" or 2.5" devices) | |
| Environment | Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -40 ~ 70° C (-40 ~ 156° F) | |
| Operating Vibration | 1 Grms | |
| Operating Shock | 10 G (with 11 ms duration, half sine wave) | |
| Humidity | 10 ~ 95% @ 40° C, non-condensing | |
| Non-Operating Humidity | 10 ~ 95% @ 60° C, non-condensing | |
| Non-Operating Vibration (5 ~ 500 Hz) | 2 G | |
| Front I/O Interface | USB3.0 | 2 |
| Intelligent System Module | Remote Monitoring | CPU/System fan speed , CPU/System temperature , motherboard voltage |
| Miscellaneous | LED Indicators | Power, HDD, temperature, fan |

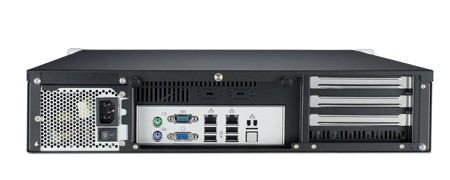

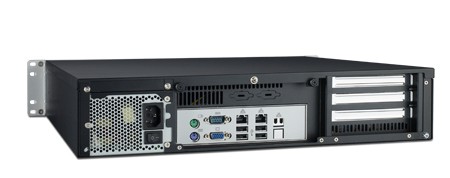

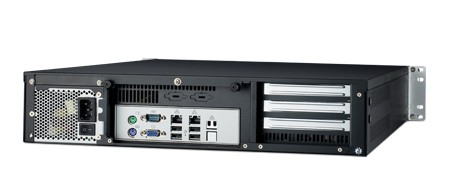

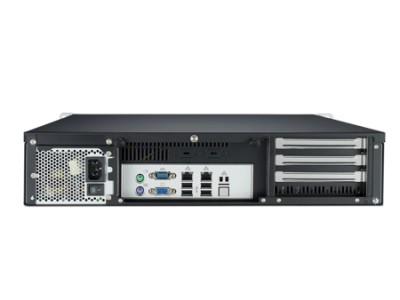

| Rear Panel | Two 9-pin D-Sub openings | |
| Physical Characteristics | Weight | 13.7 kg (30.12 lb) |
| Dimensions (W x H x D) | 482 x 88 x 525 mm (19" x 3.46" x 20.67") |
