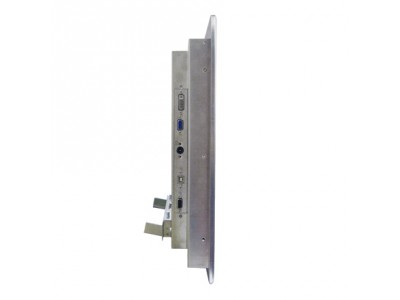

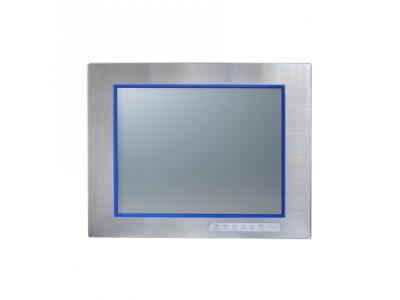

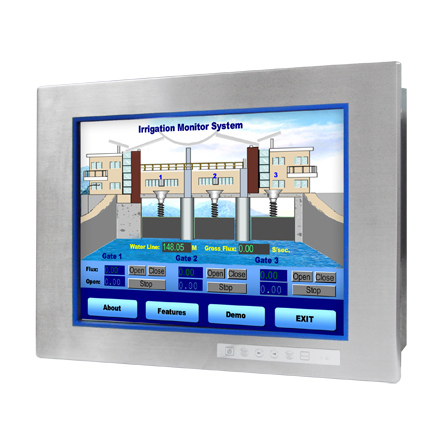

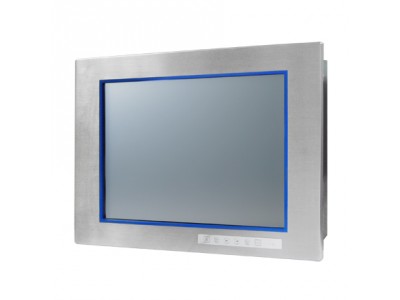

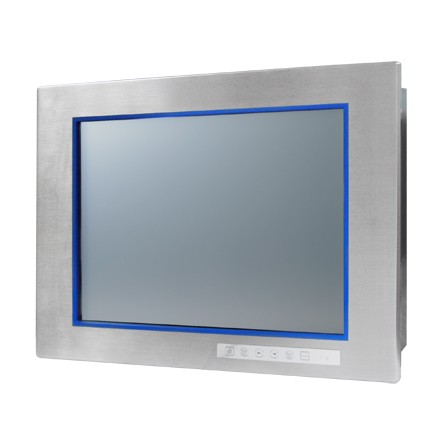

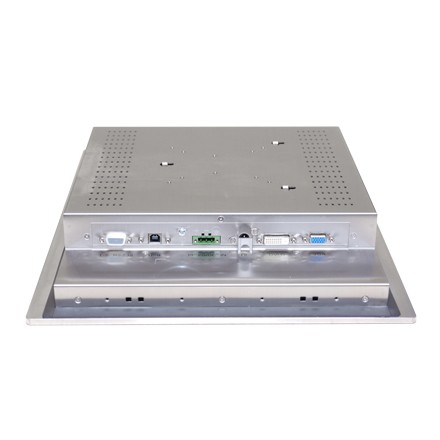

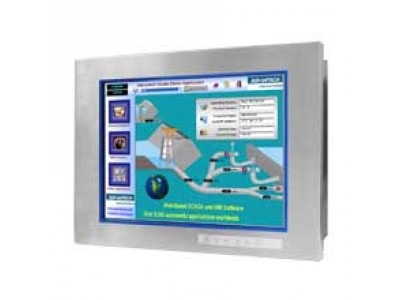

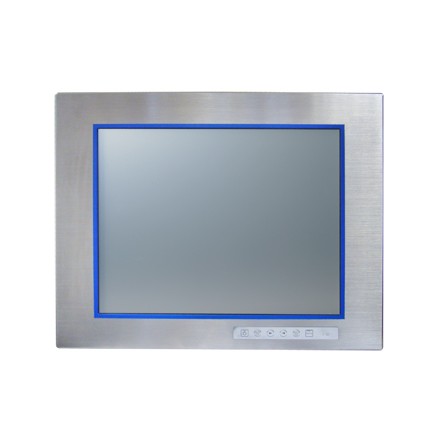

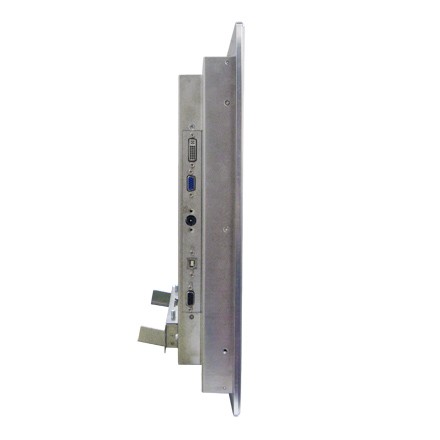

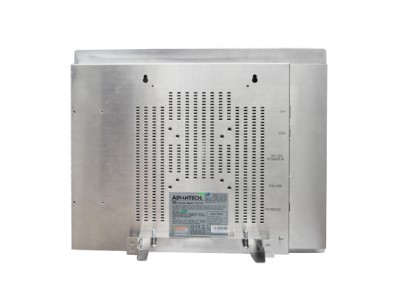

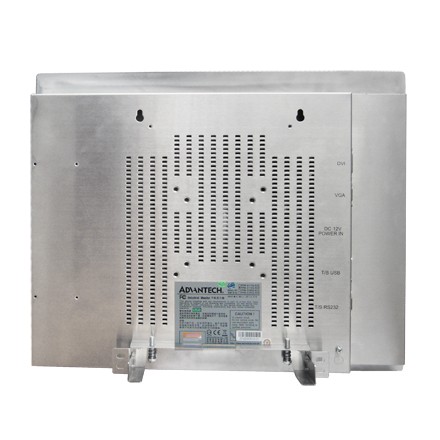

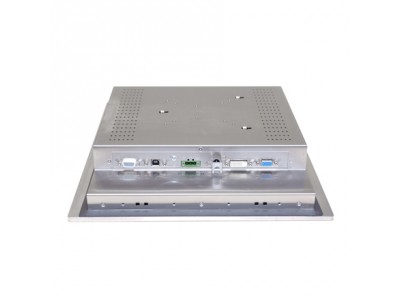

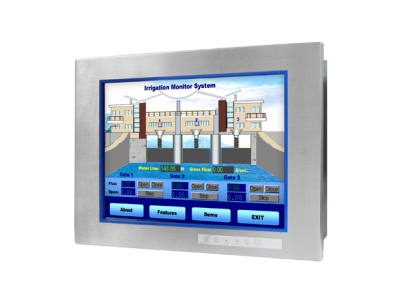

15" Stainless Steel XGA Industrial Monitor with Resistive Touchscreen (FPM-8151H-R3AE)
by Advantech
•Part #: FPM-8151H-R3AE
View Detailed Description
$1,624.00
The FPM-8151H is a particularly rugged and reliable 15” XGA wide temperature industrial monitor for a variety of industry applications. Equipped with a wide operating temperature range of -20 ~ 60°C (-4 ~ 140°F), it can satisfy demands in a wide range of harsh industrial applications. This model also features enhanced 5-wire resistive touch and system isolation to enhance the reliability. Moreover, FPM-8151H is designed to be safely operated in these locations and is certified with UL Class I Division 2 for hazardous environment.
- 15" XGA TFT LCD with LED backlight
- Meets hazardous requirements with UL CID2 certification
- NEMA4/IP65 stainless steel 316L compliant front panel
- -20 ~ 60°C (-4 ~ 140°F) wide operating temperature range
- Enhanced 5-wire resistive touch panel

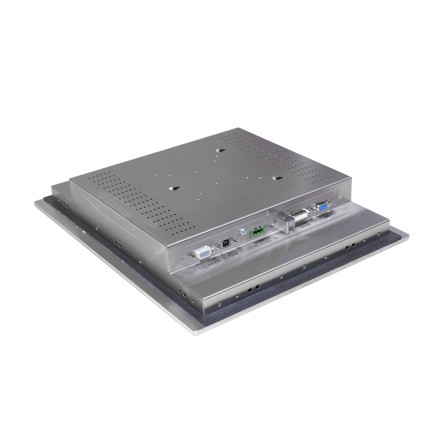

- Direct VGA & DVI-D video input interface
- Combo RS-232 & USB interface for touchscreen function
- Supports 24 VDC input and 100~240 VAC input (optional AC adapter)
| Display | Display Size | 15" |
| Display Type | 15" XGA | |
| Max. Colors | 16.2 M | |
| Max. Resolution | 1024 x 768 | |
| Backlight MTBF(hrs) | 50,000 | |
| Luminance (cd/m2) | 350 | |
| Viewing Angle (H/V°) | 160/140 | |
| Environment | Operating Temperature | -20 ~ 60°C (-4 ~ 140°F) |
| Storage Temperature | -30 ~ 80°C (-22 ~ 176°F) | |
| General | Power Input Voltage | 100 ~ 240v |
| Video Port | VGA/DVI | |

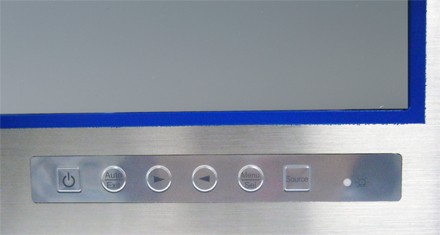

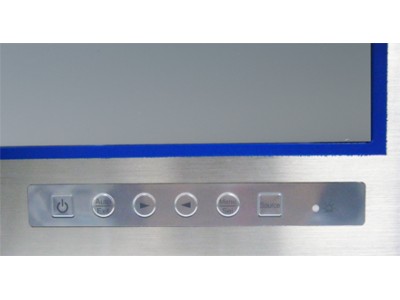

| OSD(onscreen display) | On rear side with lockable function | |
| Touchscreen (Optional) | Touchscreen | Combo |
