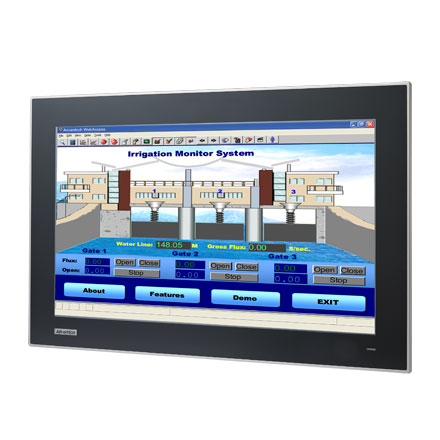

21.5" Industrial Widescreen Monitor with PCT Touchscreen (FPM-7211W-P3AE)
by Advantech
•Part #: FPM-7211W-P3AE
View Detailed Description
$1,500.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
With its brand new design, the FPM-7211W provides a new wide screen display size with industrial grade design concept. By truly-flat touch screen, the front bezel meets IP65 testing criteria. FPM-7211W projected capacitive touch can support 5-points touch application. New easy installation design can help you with one person for panel mounting.FPM-7211W monitor with slim enclosure is ideally suited to being either panel or wall mounted.
- 21.5" Full HD TFT LED backlight LCD 16:9 wide screen display
- Truly-flat touch screen with IP65 compliance
- Slim design for easy Panel mount / Wall mount installation
- Projected Capacitive Touchscreen, capable of Multi touch input
- Supports industrial 24VDC power input
- Supports panel, wall, desktop and VESA arm mounting
- VGA & DVI-D port, OSD control pad on rear panel
- Robust design with SECCl chassis and Magnesium alloy front panel and Lockable I/O connectors
| Display | Display Size | 21.5" |
| Display Type | 21.5" Full HD TFT LED LCD | |
| Max. Colors | 16.7 M | |
| Max. Resolution | 1920 x 1080 | |
| Backlight MTBF(hrs) | 50,000 | |
| Luminance (cd/m2) | 300 | |
| Viewing Angle (H/V°) | 178/178 | |
| Environment | Operating Temperature | 0 ~ 55°C (32 ~ 131°F) |
| Storage Temperature | -20 ~ 60°C (-4 ~ 140°F) | |
| Waterproof | Front panel is IP66 compliant | |
| General | Dimensions | 558.4 x 349.8 x 47.7 mm (21.98" x 13.77" x 1.88") |
| Power Input Voltage | Phoenix Jack: 24 VDC input | |
| DC Power Input(voltage) | External 57 W powern adapter, with 100 ~ 240 VAC input and 12 VDC @ 4.75 A output | |
| Video Port | VGA & DVI-D | |
| Weight (Net) | 8kg | |
| Operating System | Windows XP, Vista, 7, 8, XPe and Linux | |
| OSD(onscreen display) | in rear cover | |
| Certifications | BSMI, CCC, CE, FCC Class A, UL | |
| Mounting | Rear cover: SECC | |
| Enclosure | Front panel: die-cast magnesium alloy | |
| Touchscreen (Optional) | Touchscreen | Projected Capacitive Touch |
