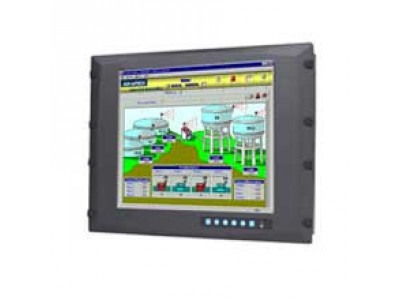

8U 17" XGA Industrial Monitor with Resistive Touchscreen, VGA/DVI (FPM-3171G-R3AE)
by Advantech
•Part #: FPM-3171G-R3AE
View Detailed Description
$1,314.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
FPM-3171G is a 17"color TFT LCD flat panel monitor specifically designed for industrial applications. With a viewing size as large as 17", it presents an simple display area as well as vivid and sharp images for your HMI. It features direct VGA signal transmission. You can thus upgrade the displays without making changes to the e x isting system. The onscreen display function also makes it easy to adjust the images on the screen. The whole chassis is designed in stainless steel and the front panel is made of aluminum with front panel IP65 compliance.
- 17''SXGA TFT LCD with LED backlight
- Robust design with stainless steel chassis and aluminum front panel
- Combo RS-232 & USB interface for touchscreen function
- Anti-reflective screen with tempered glass
- OSD control pad on front panel
- Supports industrial 24VDC power input
- Supports panel, wall, desktop, rackmount (8U pre-drilled mounting holes) or VESA arm mounting
- Front panel is IP65 compliant
Environment | Operating Temperature | -20 ~ 60°C (-4 ~ 140°F) |
Storage Temperature | -30 ~ 80°C (-22 ~ 176°F) | |
Humidity (Storage) | 95% @ 60°C . non-condensing | |
Waterproof | Front panel is IP65 compliant | |
Vibration | 5 ~ 500 Hz, 1 Grms (Operating, Random) | |
General | Certifications | BSMI, CCC, CE, FCC Class A, UL |
Dimensions | 482 x 354.8 x 63.9mm | |
Power Input Voltage | 12v & 24v | |
Video Port | VGA/DVI | |
Weight (Net) | 9.25kg | |
Operating System | Windows XP, Vista, 7,8, XPe, CE and Linux | |
OSD(onscreen display) | On rear side with lockable function | |
LCD Display | Display Type | SXGA TFT LCD with LED backlight |
Max. Colors | 16.7M | |
Display Size | 17" | |
Backlight Lifetime | 50, 000 hrs | |
Luminance (cd/m2) | 350 | |
Contrast Ratio | 1000:1 | |
Viewing Angle (H/V°) | 160/140 | |
Touchscreen | OS Support | Windows® XP,Vista,7,8,XPe,CE and Linux |
Power Consumption | +5 V @ 100 mA | |
Light Transmission | 80% ±5 | |
Lifespan | 35 million touches at a single point |
