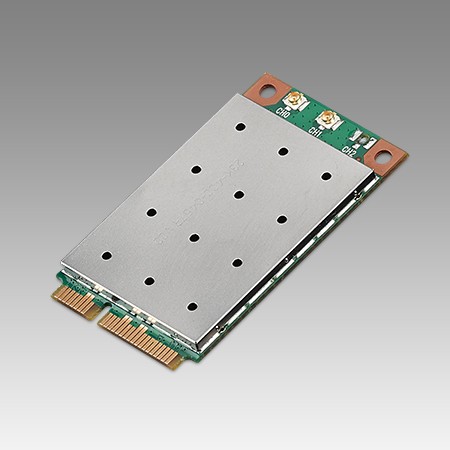

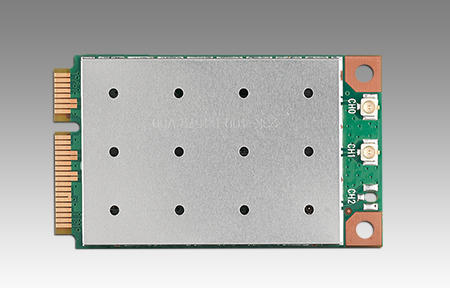

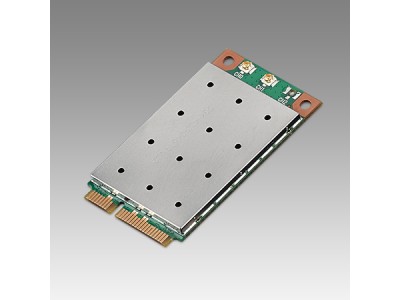

Full-size Mini PCIe Card with 11abgn 2T2R, -40 to 85° C (EWM-W158F01E)
by Advantech
•Part #: EWM-W158F01E
View Detailed Description
$89.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Advantech EWM-W158F01E is IEEE802.11 a/b/g/n 2T2R Industrial Wide-Temp full-size MiniPCIe card. It is based on Atheros referance design (AR9592-AR1B chipset), the data rate is up to 300Mbps. The high-speed and wide-temp (-40 ~ 85 °C) is able to support high transmission and high reliability application.
- IEEE 802.11a/b/g/n 2T2R dual-band standard
- 2Tx/2Rx MIMO
- Up to 300 Mbps data rate
- Operating temperature: -40 to +85° C
- 64/128-bits WEP, WPA, WPA2
WiFi Module | Form Factor | Full Size Mini PCIe Card |
Wireless Standard | 802.11 a/b/g/n | |
Chipset | Atheros AR9592-AR1B | |
Signal Protocol | PCIe Differential | |
Antenna | 2 x U.FL connectors (2T/2R) | |
Operating Voltage | DC 3.3V ± 5% | |
Operational Temperature | -40 ~ 85°C (Operating) | |
Dimensions (L x W x H) | 29.85 x 26.65 x 3.25 mm | |
Security | 64/128-bit WEP, AES-CCMP,TKIP; WPA, WPA2, 802.1X,EAP-SIM, EAP-AKA | |
MIMO | 2T x 2R | |
Data Rate | 300Mbps | |
O.S Supported | Win XP/Vista/7/8/8.1 | |
Host Type | PCIe Mini card |
