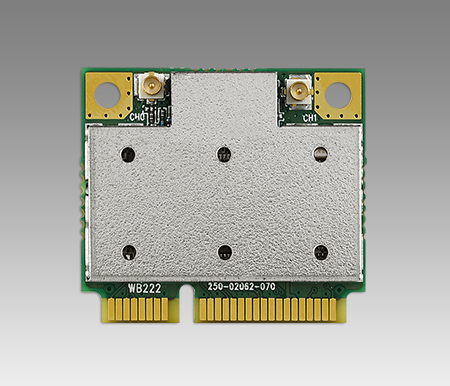

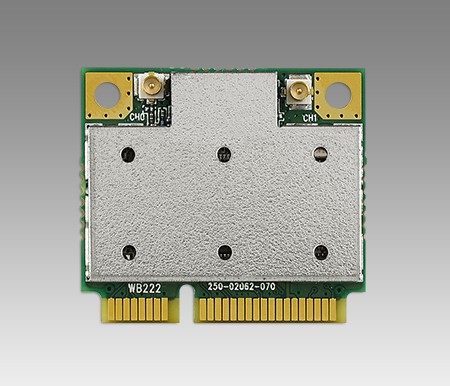

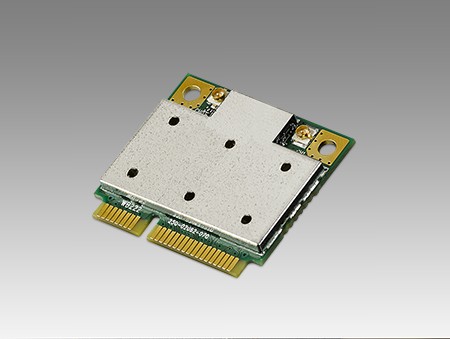

Half-size Mini PCIe Card with 802.11abgn 2T2R with BT4.0, Atheros AR9462 (EWM-W155H01E)
by Advantech
•Part #: EWM-W155H01E
View Detailed Description
$25.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The EWM-W155H01E is 802.11 a/b/g/n 2.4GHz/5GHz 300Mbps and Bluetooth 4.0. It is Atheros AR9462 solution.
- IEEE 802.11 a/b/g/n + Bluetooth 4.0 HS standard
- 802.1x authentication
- 2Tx/ 2Rx
- Up to 300 Mbps (data rate)
- 64-bit, 128-bit and 152-bit WEP encryption
- AES-CCM & TKIP
- Operating temperature: 0 to 60° C
| WiFi Module | Form Factor | Half Size Mini PCIe Card |
| Wireless Standard | 802.11 a/b/g/n | |
| Chipset | Atheros AR9462 | |
| Signal Protocol | WiFi: PCIe & BT: USB Differential | |
| Antenna | 2 x U.FL connectors (2T/2R) | |
| Operating Voltage | DC 3.3V ± 5% | |
| Operational Temperature | -10 ~ 70°C | |
| Dimensions (L x W x H) | 29.85 x 26.65 x 3.25 mm | |
| Security | 64/128/152-bit WEP, WPA, WPA2, 802.1x, TKIP and AES | |
| MIMO | 2T x 2R | |
| Data Rate | 300Mbps | |
| O.S Supported | Win 7/8.x | |
| Host Type | PCIe Mini card |
