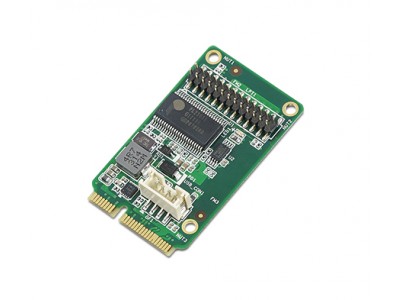

USB to 1-CH Parallel Port Module (EMIO-100P-MPU01E)
by Advantech
•Part #: EMIO-100P-MPU01E
View Detailed Description
$25.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.

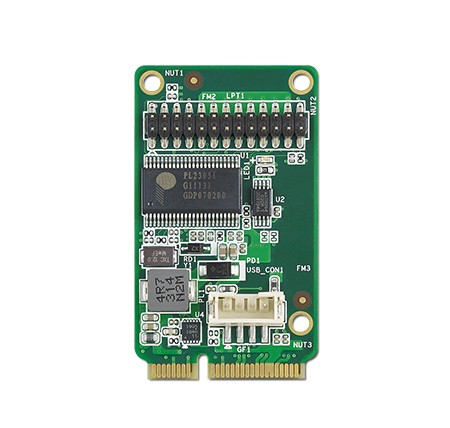

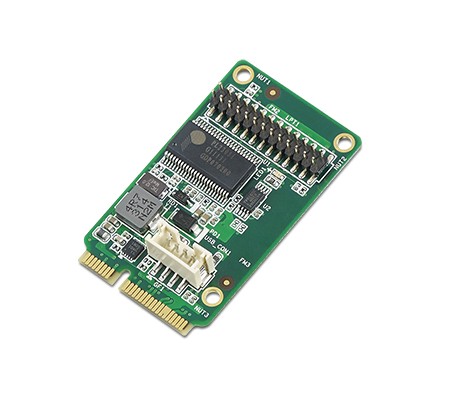

Advantech EMIO-100P, USB to Parallel Printer module, is a high-quality electronic component developed and manufactured according to the IEEE 1284 printer. Fully USB 1.1 compliant, the adapter supports bi-directional parallel interface communications. The form factor of EMIO-100P Parallel module is designed the full-size Mini PCIe & module type combo solution. The EMIO-100P is following the MiniPCIe definition and added USB pin header.
- USB to 1x Parallel port module
- Full size Mini PCIe & Module type combo
- MiniPCIe thru USB & USB Pin Header
- Support IEEE 1284-compliant ECP
| Embedded I/O Modules | According to | IEEE 1284-coompliant ECP |
| Channel Connector | 1 | |
| Communication Interface | Combo USB (Internal/ External) | |
| Dimensions (L*W*H) | 50.95 x 30 x 10 mm | |
| Interface Connector | Internal USB port: MiniPCIe thru USB External USB port: 2.0 mm, 1x4-pin, male type wafer box | |
| LED Status | Module Ready: Red LED | |
| MTBF | 10,400,000 hours | |
| Operating Temperature | 0 ~ +70°C | |
| Protocol | Parallel | |
| Storage Temperature | -40 ~ +85°C | |
| Supported Voltage and Current | +5.0 V, 100mA | |
| Type | USB to 1-Ch Parallel port |
