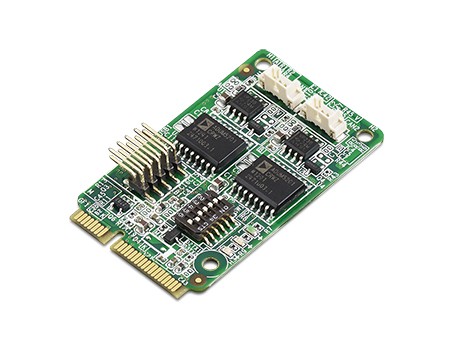

USB to 2 CH CANBus Port Module (EMCB-200U-MP01E)
by Advantech
•Part #: EMCB-200U-MP01E
View Detailed Description
$85.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Advantech EMCB-200U CANBus module is a high-quality electronic component developed and manufactured according to the CAN networks standards. The form factor of EMCB-200U CANBus module is designed the full-size Mini PCIe & module type combo solution. The EMCB-200U is following the MiniPCIe definition and added USB pin header.
- Full size Mini PCIe & Module type combo
- Combo USB (Internal/ External) Interface
- Compliant with CAN 2.0A and CAN 2.0B identifiers, According to ISO 11898-1 and ISO 11898-2
- Bit rates up to 1 Mbit/s
| Embedded I/O Modules | Type | USB to 2-Ch CANBus port |
| Communication Interface | Combo USB (Internal/ External) | |
| Interface Connector | Internal USB port: MiniPCIe thru USB External USB port: 2.0 mm, 2x5-pin, male header | |
| Channel Connector | 2 | |
| Protocol | CAN 2.0A (11-Bit) & 2.0B (29-Bit) | |
| According to | ISO 11898-1, ISO 11898-2 | |
| Communication Baud Rate | 10, 20, 50, 125, 250, 500, 800, 1000 Kbps | |
| Operating Temperature | -40 ~ +85°C | |
| Storage Temperature | -40 ~ +85°C | |
| Supported Voltage and Current | +5.0 V, 100mA | |
| LED Status | Power On/Off: Green LED CAN-1, CAN-2 Tx: Red LED | |
| MTBF | 7,400,000 hours | |
| Dimensions (L*W*H) | 50.95 x 30 x 10 mm |
