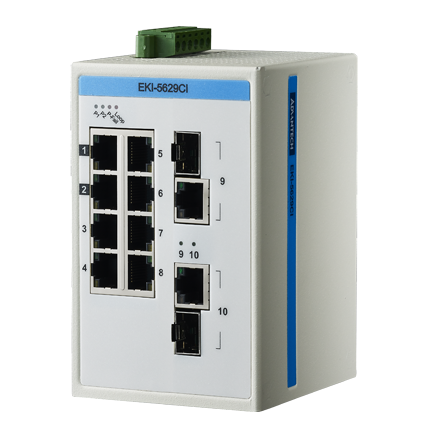

ProView 8-Port Gigabit Industrial Switch with 2x RJ45/SFP Combo, Extreme Temp -40~75℃ (EKI-5629CI-AE)
by Advantech
•Part #: EKI-5629CI-AE
View Detailed Description
$419.00
The EKI-5629C/CI and EKI-5626C/CI is the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5629C/CI and EKI-5626C/CI switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.
- Total 10-Port Industrial Ethernet Switch supporting Modbus/TCP and SNMP and -40~75℃ Extreme Temp support
- Features 8x 10/100BaseT(X), and 2 x Giga(RJ45/SFP) combo ports
- Communicates with SCADA software via Modbus/TCP
- Communicates with NMS (Networking management system) via SNMP
- Port-based QoS for deterministic data transmission
- 8.4~52.8 V DC wide-range power input
- EMS level 3 protection for extreme outdoor environments
- Jumbo Frame Support (Up to 9,216 Bytes)
- Supports redundant 12~48V DC power input, P-Fail relay and Loop detection
| Certification | Safety | IEC/EN 60950-1,UL508, Class 1 Division 2, IECEx, ATEX |
| EMC | CE, FCC | |
| EMI | EN 55011/ EN 55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A | |
| EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) | |
| Shock | IEC 60068-2-27 | |
| Vibration | IEC 60068-2-6 | |
| Communications | Standard | IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3az, 802.3ab |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) | |
| Relative Humidity (Non-condensing) | 10 ~ 95% | |
| Mechanism | Dimensions (W x H x D) | 74 x 120 x 84 mm |
| IP Grade | IP30 | |
| Enclosure | Metal | |
| Weight | 500g | |
| Mounting | DIN-rail, Wall | |
| MTBF | Time | 3,183,604 hours |
| Method | Telcordia(Relax), GB | |
| Port Configuration | RJ45 Port Interface | 8 x 10/100BaseT(X), 2 x 10/100/1000Base-T(X) |
| Fiber Transmission Distance | Up to 110km | |
| RJ45 w/ PoE Quantity | - | |
| Fiber Port Interface | SFP | |
| Fiber Port Connector | 2 | |
| RJ45 Transmission Distance | 100 m | |
| Power Requirements | Operating Voltage | 24 ~ 48 VDC, (8.4VDC ~ 52.8VDC) |
| Operating Current | 0.2A @ 24V | |
| Power Consumption | 5.8 W | |
| Connectors | 6-pin removable screw terminal ((power & relay) | |
| Reverse Polarity | Present | |
| Switch Properties | MAC Table Size | 8K |
| Packet Buffer Size | 128K bit | |
| Switch Fabric Speed | 5.6Gbps | |
| Jumbo Frame | 9,216 bytes | |
| Warranty | Warranty Period | 5 years |
