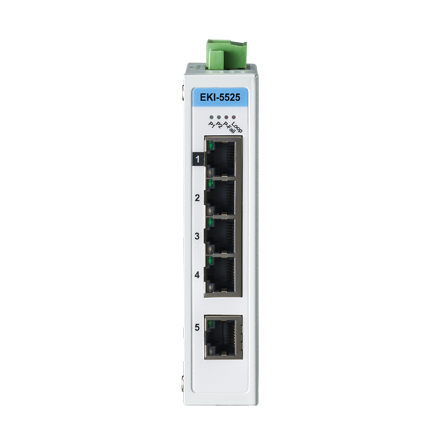

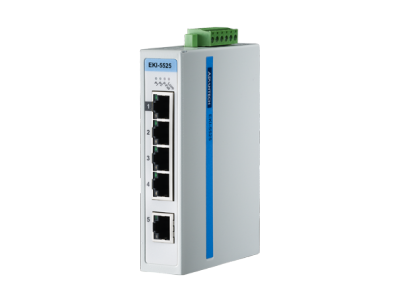

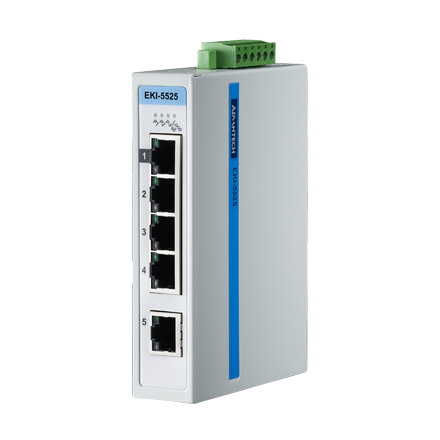

ProView 5-port 10/100Mbps Industrial Switch, Wide Temp -10~60℃ (EKI-5525-AE)
by Advantech
•Part #: EKI-5525-AE
View Detailed Description
$100.00
The EKI-5525/I and EKI-5528/I are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5525/I and EKI-5528/I switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with Level 3 EMS protection to repel electromagnetic interface for industrial resistance.
- 5-port 10/100Mbps Industrial Ethernet Switch supporting Modbus/TCP and SNMP Communicates with SCADA software via Modbus/TCP
- Communicates with NMS (Networking management system) via SNMP
- Port-based QoS for deterministic data transmission
- 8.4~52.8 V DC wide-range power input
- EMS level 3 protection for extreme outdoor environments
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Jumbo Frame Support (Up to 9,216 Bytes)
- Supports redundant 12~48V DC power input, P-Fail relay and Loop detection
| Certification | EMI | EN 55011/ EN 55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A |
| EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) | |
| Freefall | IEC 60068-2-32 | |
| Shock | IEC 60068-2-27 | |
| Vibration | IEC 60068-2-6 | |
| Communications | Standard | IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3az |
| Environment | Operating Temperature | -10 ~ 60°C (14 ~ 140°F) |
| Relative Humidity (Non-condensing) | 10 ~ 95% | |
| Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) | |
| Mechanism | Enclosure | Metal |
| Mounting | DIN-rail, Wall mount | |
| Weight | 400g | |
| Dimensions (W x H x D) | 27 x 120 x 93 mm | |
| IP Grade | IP30 | |
| MTBF | Method | Telcordia(Relax), GB |
| Time | TBD | |
| Port Configuration | Fiber Port Connector | - |
| Fiber Port Interface | - | |
| Fiber Transmission Distance | - | |
| RJ45 Port Interface | 5 x 10/100BaseT(X) | |
| RJ45 Transmission Distance | 100 m | |
| RJ45 w/ PoE Quantity | - | |
| Power Requirements | Connectors | 6-pin removable screw terminal ((power & relay) |
| Operating Current | 0.06A @ 24V | |
| Operating Voltage | 12 ~ 48 VDC | |
| Power Consumption | Max. 2.4 W | |
| Reverse Polarity | Present | |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| MAC Table Size | 2K | |
| Packet Buffer Size | 1M bit | |
| Switch Fabric Speed | 1.0Gbps | |
| Warranty | Warranty Period | 5 years |
