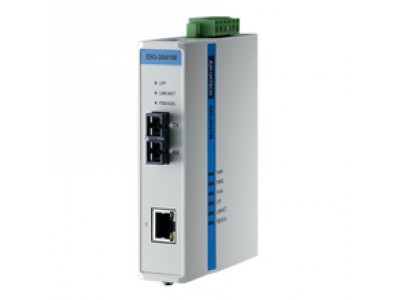

10/100T(X) to Multi-Mode Fiber Media Converter (EKI-3541M-AE)
by Advantech
•Part #: EKI-3541M-AE
View Detailed Description
$153.00
EKI-3541M/3541S is designed to convert Ethernet networks to fiber networks by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmissions.Therefore, EKI-3541M/3541S is an ideal solution for “fiber to building” applications at central offices or local sites. EKI-3541M/3541S supports MDI/MDIX auto detection, so you don’t need to use crossover wires. Furthermore, the EKI-3541M/3541S can work normally from -10 to 60°C and accepts a wide voltage range from 8.4 ~ 52.4 VDC. Besides, it also provides 4,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments. Link Fault Pass-Through (LFP) EKI-3541M/3541S is an enhanced Ethernet to fiber-optic converter. Aside from its standard features, the versatile EKI-3541M/3541S also has the LFP (Link Fault Pass-through) feature. When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. Use the internal jumper to enable the LFP function, then EKI-3541M/3541S will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.
- Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector
- Provides 1 x 100 Mbps Multi-mode/Single-mode SC type fiber port
- Supports Link Fault Pass-through (LFP) function
- Supports full/half duplex flow control
- Supports store and forward transmission
- Supports Auto-Negotiation
- Supports MDI/MDI-X auto crossover
- Supports redundant 12-48 VDC power input
- Provides flexible mounting: DIN-rail and Wall mount
| Certifications | EMI | FCC Part 15 Subpart B Class A, EN 55011/55022 Class A |
| Safety | UL 60950-1, CAN/CSA-C22.2 No.60950 | |
| Communications | LAN | 10/100Base-T (X), 100Base-FX |
| Standard | IEEE 802.3, 802.3u, 802.3x | |
| Transmission Distance | Ethernet: Up to 100 m, Fiber: Multi-mode: up to 2 km. Fiber: Single-mode: up to 30 km | |
| Transmission Speed | Up to 100 Mbps | |
| Environment | MTBF | 597,488 hours |
| Humidity (Operating) | 5 ~ 95% (non-condensing) | |
| Temperature (Operating) | -10 ~ 60° C (14 ~ 140° F) | |
| Humidity (Storage) | 0 ~ 95% (non-condensing) | |
| Temperature (Storage) | - 40 ~ 85° C (-40 ~185° F) | |
| Interface | Ports Number | 2 |
| Connectors | 1 x RJ45, 1 x SC type fiber connector, 6-pin removable screw terminal (power) | |
| DIP Switch | T(X):Speed and HDX/FDX, LFP, Fiber: HDX/FDX, T(X):Auto-Negociation | |
| LED Indicators | P1, P2, P-Fail, LFP, LNK/ACT (FX), FDX/COL (FX) | |
| Mechanism | Dimensions (W x H x D) | 28.5 x 120 x 85.3 mm (1.02" x 4.73" x 3.35") |
| Enclosure | IP40, plastic and metal shell with solid mounting kits | |
| Mounting | DIN-rail, Wall | |
| Power | Power Consumption | Max. 2.4 W |
| Power Input | 12 ~ 48 VDC, redundant dual inputs | |
| Protection | Overload Current | Present |
| Power Reverse | Present |
