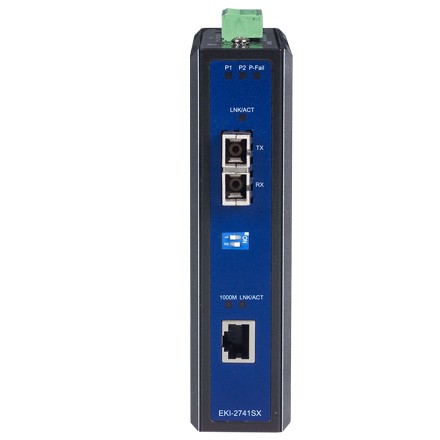

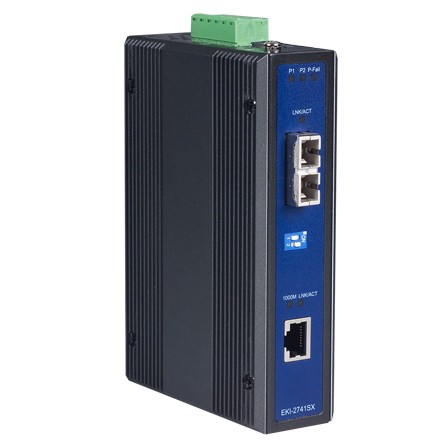

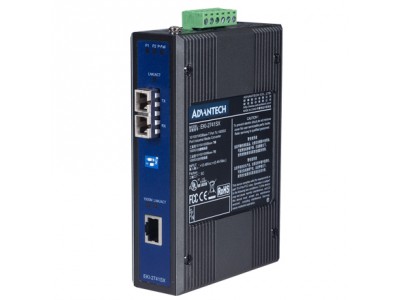

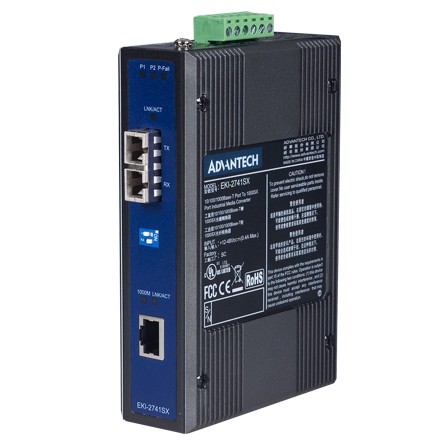

GbE to Multi mode fiber media converter (EKI-2741SX-AE)
by Advantech
•Part #: EKI-2741SX-AE
View Detailed Description
$275.00
EKI-2741 is designed to convert Gigabit Ethernet networks to Gigabit fiber networks by transparently converting Ethernet signals to optic signals. Therefore, EKI-2741 is an ideal solution for “fiber to building” applications at central offices or local sites. EKI-2741 supports MDI/MDIX auto detection, so you don’t need to use crossover wires. Furthermore, the EKI-2741 accepts a wide voltage range from 12 ~ 48 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments. EKI-2741 is an enhanced gigabit Ethernet to fiber optic converter. Aside from its standard features, the versatile EKI-2741 also has the LFP (Link Fault Pass-through) feature. When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. EKI-2741 will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.
- Provides 1 x 1000 Mbps Ethernet port with RJ45 connector
- Provides 1 x 1000 Mbps fiber port with SC type connector for 1000Base-SX device
- Provides DIP switch for full/half duplex setting
- Supports MDI/MDI-X auto crossover
- Supports auto-negotiation
- Supports surge (EFT) protection 3,000 VDC for power line
- Supports 4,000 VDC Ethernet ESD protection
- Supports redundant +12-48 VDC power input
- Provides flexible mounting: DIN-rail & Wallmounting
- Provides Link Fault Pass-through (LFP)
- Supports Operating Temperature from -10 ~ 60° C
| General | Power Consumption | 5.18W max. @ 48VDC |
| Power Input | 12 ~ 48 VDC, redundant dual inputs | |
| Ethernet Connectors | 1 x RJ-45 and 1 x SC type fiber connector | |
| Mounting | DIN-rail, Wall | |
| I/O | Transmission Distance | Ethernet: Up to 100 m Fiber: Multi-mode: Up to 500 m |
| Transmission Speed | Up to 1000 Mbps | |
| Interface | Ports Number | 2 |
| Operating System | Temperature (Operating) | -10 ~ 60°C (14 ~ 140°F) |
| Power Supply | Power Input | 12~ 48 VDC, redundant dual inputs |
| Power Connector | 6-pin removable screw terminal |
