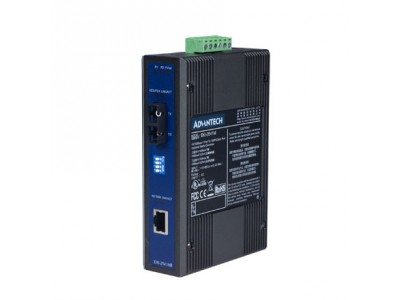

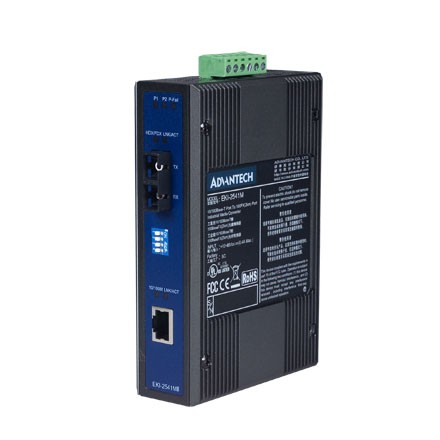

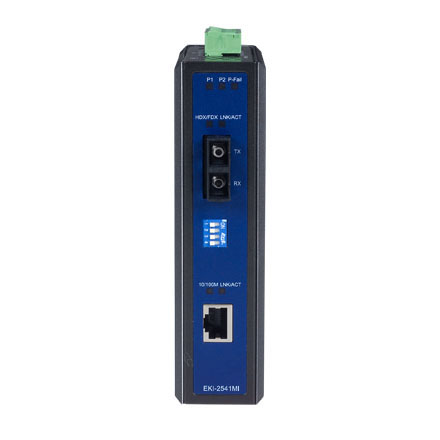

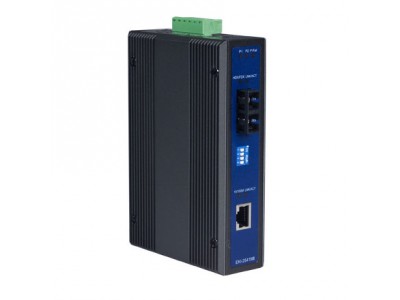

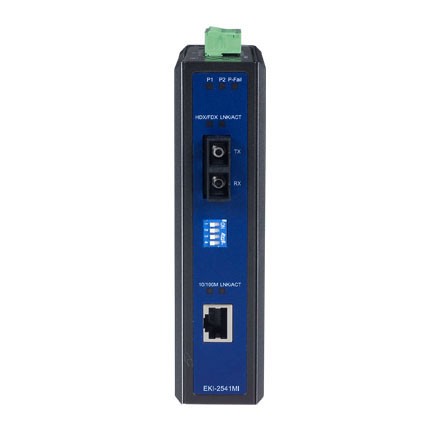

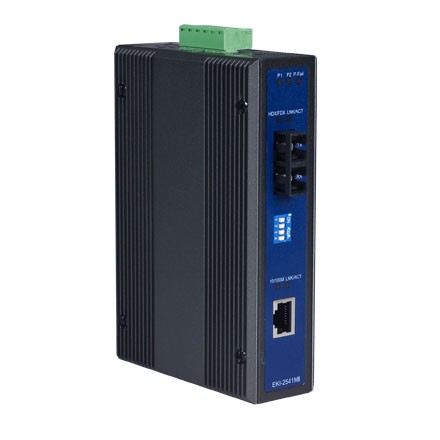

Ethernet to MM Fiber Media converter(wide temp.) (EKI-2541MI-AE)
by Advantech
•Part #: EKI-2541MI-AE
View Detailed Description
$240.00
EKI-2541M/2541S is designed to convert Ethernet networks to fiber networks by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmissions.Therefore, EKI-2541M/2541S is an ideal solution for “fiber to building” applications at central offices or local sites. EKI-2541M/2541S supports MDI/MDIX auto detection, so you don’t need to use crossover wires. Furthermore, the EKI-2541M/2541S can work normally from -10 to 60°C and accepts a wide voltage range from 12 ~ 48 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments. Link Fault Pass-Through (LFP) EKI-2541M/2541S is an enhanced Ethernet to fiber-optic converter. Aside from its standard features, the versatile EKI-2541M/2541S also has the LFP (Link Fault Pass-through) feature. When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. Use the internal jumper to enable the LFP function, then EKI-2541M/2541S will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.
- Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector
- Provides 1 x 100 Mbps multi-mode/single-mode SC type fiber port
- Provides internal jumper for Link Fault Pass-through (LFP) setting
- Supports full/half duplex flow control
- Supports store and forward transmission
- Supports auto-negotiation
- Supports MDI/MDI-X auto crossover
- Provides surge (EFT) protection 3,000 VDC for power line
- Supports 4,000 VDC Ethernet ESD protection
- Supports redundant +12-48 VDC power input
- Provides flexible mounting: DIN-rail & Panel Mounting
- Supports wide Operating Temperature from -40 ~ 75° C
| General | Power Consumption | 2.7W max. @ 48VDC |
| Power Input | 12 ~ 48 VDC, redundant dual inputs | |
| Ethernet Connectors | 1 x RJ-45 and 1 x SC type fiber connector | |
| Mounting | DIN-rail, Wall | |
| I/O | Transmission Distance | Ethernet: Up to 100m Multi-mode Fiber:Up to 2 km |
| Transmission Speed | UP to 100 Mbps | |
| Interface | Ports Number | 2 |
| Operating System | Temperature (Operating) | -40 ~ 75°C (-40 ~ 167°F) |
| Power Supply | Power Input | 12~ 48 VDC, redundant dual inputs |
| Power Connector | 6-pin removable screw terminal |
