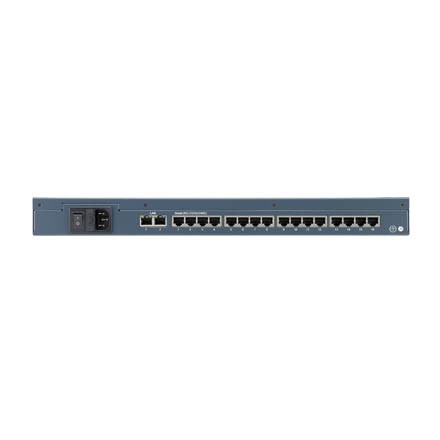

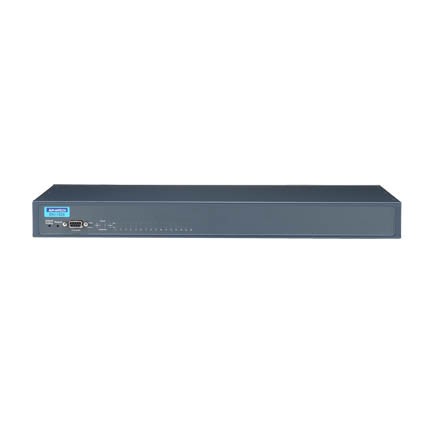

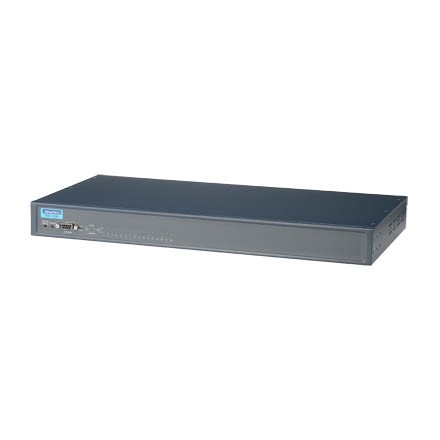

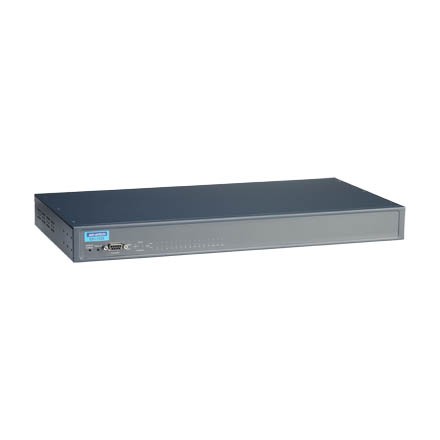

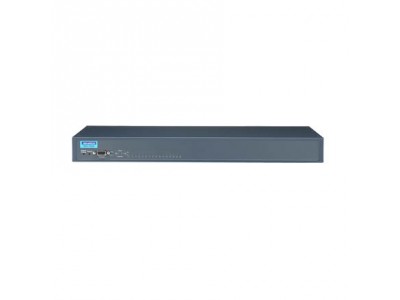

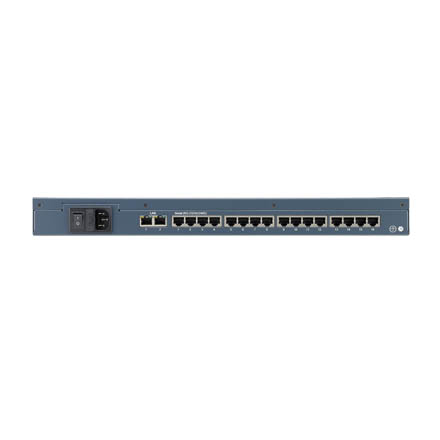

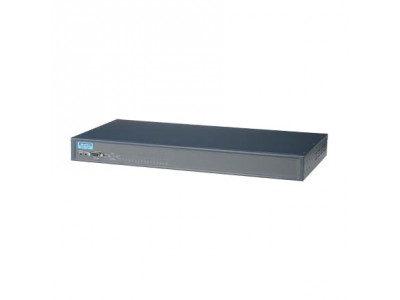

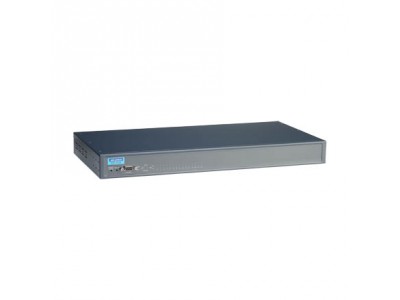

16-port RS-232/422/485 Serial Device Server (EKI-1526-BE)
by Advantech
•Part #: EKI-1526-BE
View Detailed Description
$1,051.00
EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousand of devices that can't connect to an Ethernet network. The EKI-1528 and EKI-1526 offer rich ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.
- 16-port RS-232/422/485 serial communication
- Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
- Supports up to 921.6 kbps, and any baud rate setting
- Provides COM port redirection (Virtual COM), TCP and UDP operation modes
- Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
- Built-in 15 KV ESD protection for all serial signals
- SNMP MIB-II for network management
- Built-in buzzer for easy location
- Standard 1U rackmount size
| Connector | Ethernet Connectors | RJ45 |
| Serial | RJ45 | |
| Ethernet | Ports | 2 |
| Interface | 10/100 Mbps | |
| Interface | Ports Number | 18 |
| Serial Communication | Ports | 16 |
| Type | RS-232/422/485 | |
| Baud Rate | 50 bps ~ 921.6 kbps, any baud rate setting 16 ports up to 230.4 kbps simultaneously | |
| Software | Baud Rate | 50 ~ 921.6 Kbps |
| Operating Mode | Virtual COM, TCP/UDP server TCP/UDP client Pair connection | |
| Driver | Windows 2000/XP/Vista/7 (32-bit/64bit) |
