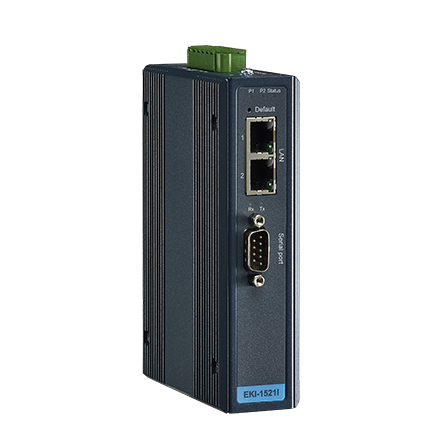

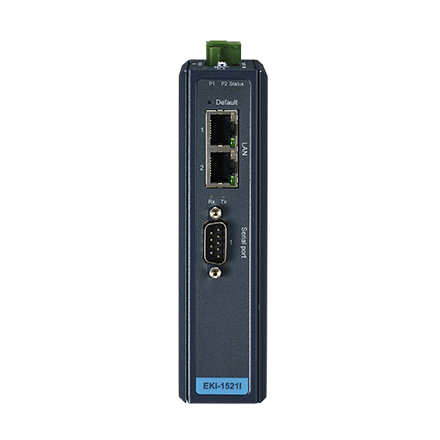

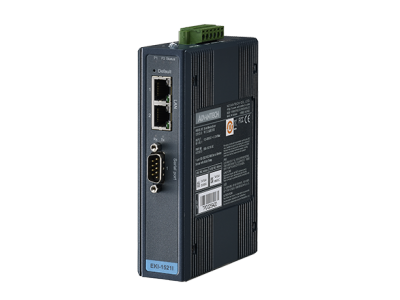

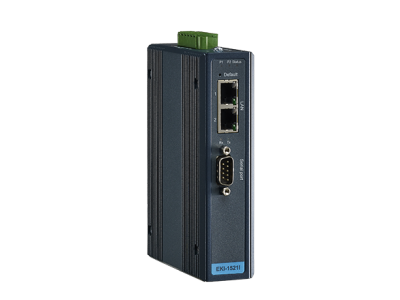

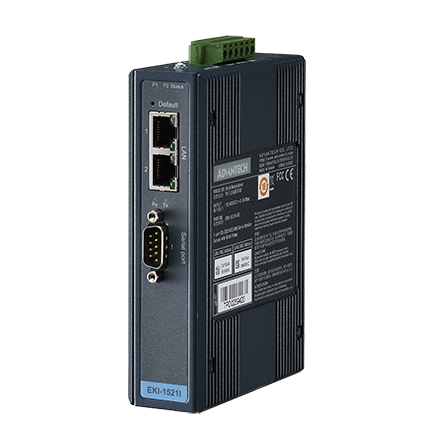

1-Port RS-232/422/485 Serial Device Server w/ Redundant Ethernet Ports, -40~75C (EKI-1521I-BE)
by Advantech
•Part #: EKI-1521I-BE
View Detailed Description
$300.00
EKI-1521, EKI-1522 and EKI-1524 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. EKI-1521, EKI-1522 and EKI-1524 are serial device servers that connect RS-232/422/485 serial devices, such as PLC, meters, sensors, and barcode reader to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. EKI-1521, EKI-1522 and EKI-1524 provide various operations: COM port redirection (Virtual COMport), TCP Server, TCP Client and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1521, EKI-1522 and EKI-1524, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client, and UDP modes, EKI-1521, EKI-1522 and EKI-1524 ensure the compatibility of network software that uses a standard network API. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming.
- Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
- Provides COM port redirection (Virtual COM), TCP and UDP operation modes
- Supports up to 921.6 kbps, and any baud rate setting
- Allows a max. of 5 hosts to access one serial port
- Allows a max. of 16 hosts to be accessed as TCP client mode
- Built-in 15 KV ESD protection for all serial signals
- Automatic RS-485 data flow control
- Supports surge protection for D.C. power ports with line to line 2 KV, and line to earth 4 KV; for signal ports with 4 KV.
| Connector | Serial | DB9 |
| Ethernet Connectors | RJ45 | |
| Ethernet | Ports | 2 |
| Interface | 10/100 Mbps | |
| Interface | Ports Number | 3 |
| Serial Communication | Ports | 1 |
| Type | RS-232/422/485 | |
| Software | Baud Rate | 50 ~ 921.6 Kbps |
| Operating Mode | Virtual COM, TCP/UDP server TCP/UDP client Pair connection | |
| Driver | Windows 2000/XP/Vista/7 (32-bit/64bit) |
