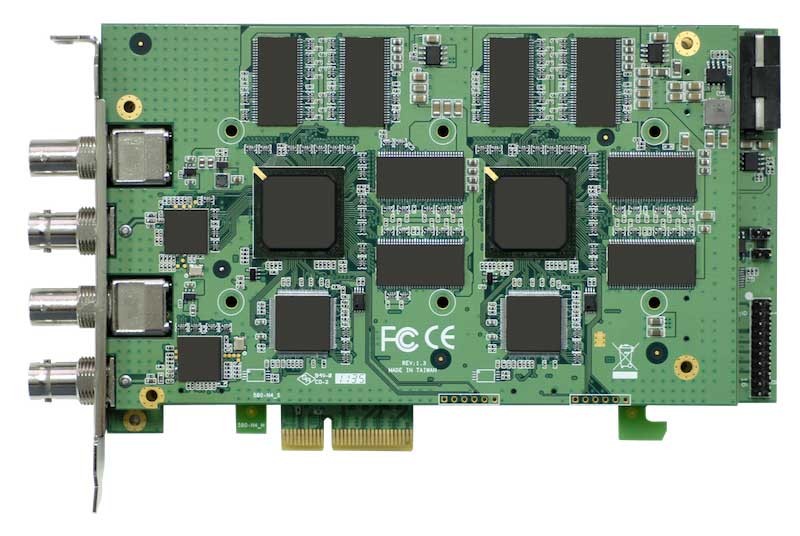

4-Channel Full HD PCIex4 HW Video Capture Card with SDK (DVP-7630HE)

by Advantech

Part #: DVP-7630HE


View Detailed Description

$825.00

Call for Availability

DVP-7630HE is a PCIe-bus, hardware compression video capture card with 4 HD-SDI video and 4 audio inputs. DVP-7630HE supports H.264 main profile compression format at up to Full HD 1080p for each channel. With an easy-to-use software development kit (SDK) and flexibility to stack multiple cards, DVP-7630HE is an ideal solution for various video capture applications or video surveillance.

  • 4-channel HD-SDI video inputs with H.264 (Main Profile) hardware compression and dual streaming
  • 30/25 fps (NTSC/PAL) at up to 1920 x 1080p resolution for display for each channel
  • 30/25 fps (NTSC/PAL) at up to 1920 x 1080p + 960 x 540p dual stream resolution for recording
  • PCIe x4 host interface
  • Supports Watchdog function
  • Windows/Linux OS supported
  • Free bundled recording & CMS software
AudioAudio Input4 x SDI
GeneralDescription4-ch H.264 HD-SDI Video Capture Card with SDK & PowerView
InterfaceHost InterfacePCIe x 4
VideoCompressionH/W H.264 Main Profile
Channels4
ConnectorsSDI
Max. Recording Rate30/25 fps (NTSC/PAL) @ 1920 x 1080p + 960 x 540p
Max. Display Rate30/25 fps (NTSC/PAL) @ 1920 x 1080p
