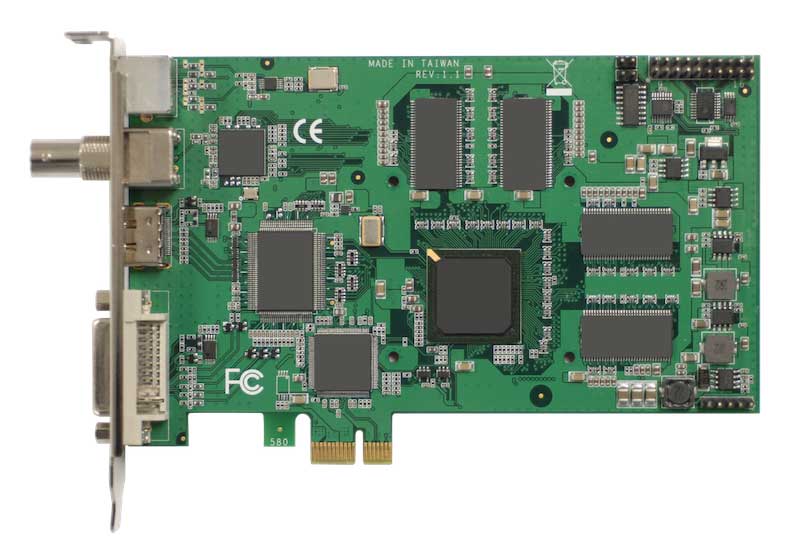

1-Channel Full HD PCIex1 Video Capture Card with SDK (DVP-7610HE)
by Advantech
•Part #: DVP-7610HE
View Detailed Description
$336.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
DVP-7610HE is a PCIe-bus, hardware compression video capture card with 1 channel of either HD-SDI, HDMI, DVI-D, DVI-A, YPbPr video and 1 audio input. DVP-7610HE supports H.264 main profile compression format at up to Full HD 1080p for each channel. With an easy-to-use software development kit (SDK) and flexibility to stack multiple cards, DVP-7610HE is an ideal solution for various video capture applications or video surveillance.
- 1-channel HD-SDI/HDMI/DVI-D/DVI-A/YPbPr video input with H.264(Main Profile) hardware compression and dual streaming
- 30/25 fps (NTSC/PAL) at up to 1080p resolution for display
- 30/25 fps (NTSC/PAL) at up to 1920 x 1080p + 960 x540p dual stream resolution for recording
- PCIe x1 host interface
- Supports Watchdog function
- Windows/Linux OS supported
| Audio | Audio Input | 1 x SDI, 1 x HDMI, 2 x RCA |
| Interface | Host Interface | PCIe x1 |
| Video | Compression | H/W H.264 Main Profile |
| Channels | 1 | |
| Connectors | HD-SDI/HDMI/DVI-D/DVI-A/YPbPr | |
| Max. Recording Rate | 30/25 fps (NTSC/PAL) @ 1920 x 1080p + 960 x 540p | |
| Max. Display Rate | 30/25 fps (NTSC/PAL) @ 1920 x 1080p |
