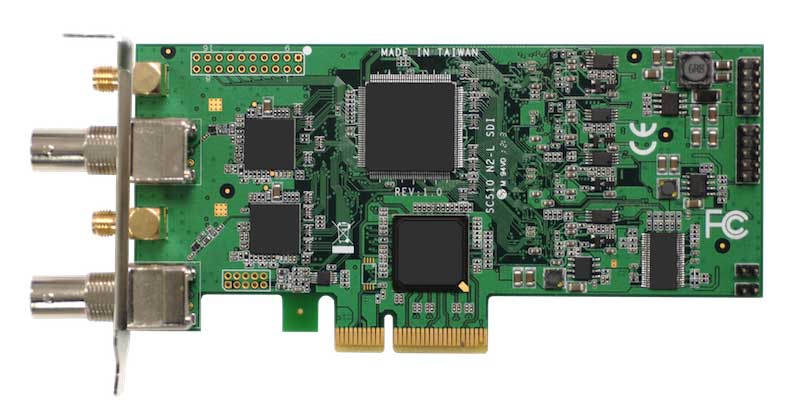

2-Channel Full HD PCIex4 Video Capture Card with SDK (DVP-7020HE)

by Advantech

Part #: DVP-7020HE


View Detailed Description

$546.00

Call for Availability

DVP-7020HE is a PCIe-bus, software compression video capture card with 2 SDI video and 2 SDI audio inputs. DVP-7020HE supports H.264 baseline compression format at up to Full HD resolution at real-time frame rate (60/50fps). With an easy-to-use software development kit (SDK) and flexibility to stack multiple cards, DVP-7020HE is an ideal solution for various video capture applications or video surveillance.

  • 2-channel SDI video inputs with H.264 software compression
  • 120/100 fps (NTSC/PAL) at up to 1920x1080p resolution for recording and display
  • PCIe x4 host interface
  • Low Power Consumption
  • Supports Watchdog function
  • Windows/Linux OS supported
AudioAudio Input2 x SDI
InterfaceHost InterfacePCIe x 4
VideoCompressionS/W H.264/MPEG4
Channels2
ConnectorsSDI
Max. Recording Rate60/50 fps (NTSC/PAL) @ 1920 x 1080p
Max. Display Rate60/50 fps (NTSC/PAL) @ 1920 x 1080p
Video OutputSDI (Loop-Through)
