16-Channel SD PCI Video Capture Card with SDK (DVP-7020BE)
by Advantech
•Part #: DVP-7020BE
View Detailed Description
$225.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.

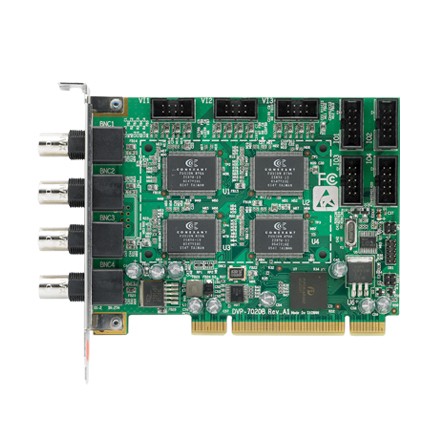

DVP-7020BE is 16 channel input, PCI-bus video capture card. It supports up to 16 channel input by share-frame technology and captures up to D1 resolution at 120/100 frames per second. DVP-7020BE supports NTSC/PAL composite video input through BNC connectors and digitizes the data to PC through PCI bus. The DVP-7020BE can be used for video capture application or video surveillance, comes with SDK support for software encoding and capture functions.
- 16 channel composite inputs with MPEG-4 compression
- Able to mix DVP-7010BE with DVP-7020BE card stacks for up to 24 channels per PC
- 30/25 fps (NTSC/PAL) or 120/100 fps (NTSC/PAL) at D1 resolution for recording and display
- Conexant fusion 878A video capture chips on board
- Support ADAM-4055 8DI/8DO Module
- SDK supports Windows® XP/XPe/Windows 2000 with VC++ sample codes
- Supports Watchdog funtion
| General | Description | 16-ch MPEG-4 Video Card with SDK |
| Interface | Host Interface | PCI v.2.2 |
| Video | Compression | S/W MPEG4 |
| Channels | 16 | |
| Connectors | BNC Connector | |
| Max. Recording Rate | 120/100 fps for all channels @ D1 | |
| Max. Display Rate | 120/100 fps for all channels @ D1 |
