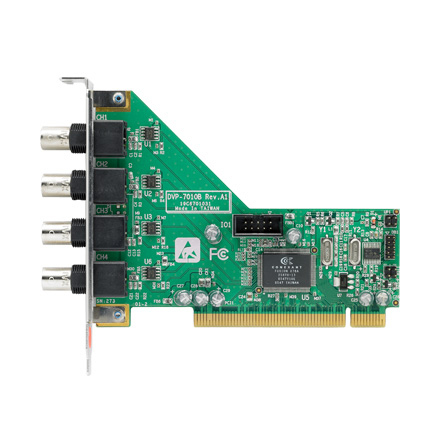

4-Channel SD PCI Video Capture Card with SDK (DVP-7010BE)
by Advantech
•Part #: DVP-7010BE
View Detailed Description
$77.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The DVP-7010BE and DVP-7020BE are MPEG-4 compression, PCI-bus video capture cards. They support up to 4 or 16 channel inputs by share-frame technology and capture up to D1 resolution. DVP-7010BE and DVP-7020BE support NTSC/PAL composite video input through BNC connectors and digitizes the data to PC through PCI bus. The DVP-7010BE and DVP-7020BE can be used for video capture application or video surveillance with SDK support for software encoding and capture functions.
- 4 channel composite inputs with MPEG-4 compression
- Able to mix DVP-7010BE with DVP-7020BE card stacks for up to 24 channels per PC
- 30/25 fps (NTSC/PAL) or 120/100 fps (NTSC/PAL) at D1 resolution for recording and display
- Conexant fusion 878A video capture chips on board
- Support ADAM-4055 8DI/8DO Module
- SDK supports Windows® XP/XPe/Windows 2000 with VC++ sample codes
- Supports Watchdog funtion
| General | Description | 4-ch MPEG-4 Video Card with SDK |
| Interface | Host Interface | PCI v.2.2 |
| Video | Compression | S/W MPEG4 |
| Channels | 4 | |
| Connectors | BNC Connector | |
| Max. Recording Rate | 30/25 fps for all channels @ D1 | |
| Max. Display Rate | 30/25 fps for all channels @ D1 |
