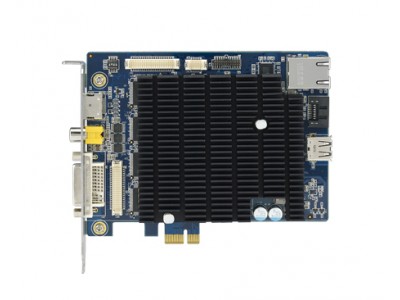

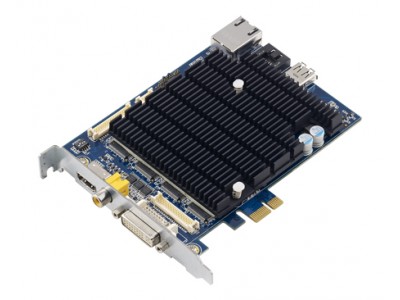

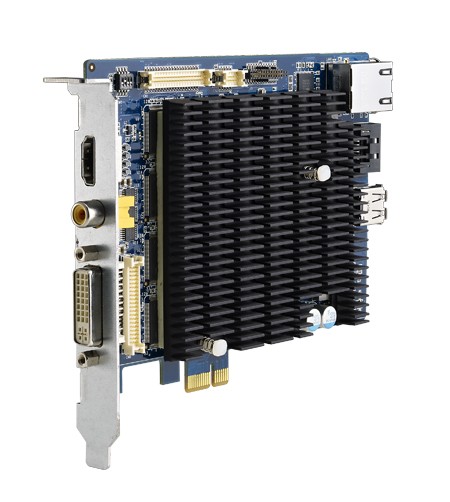

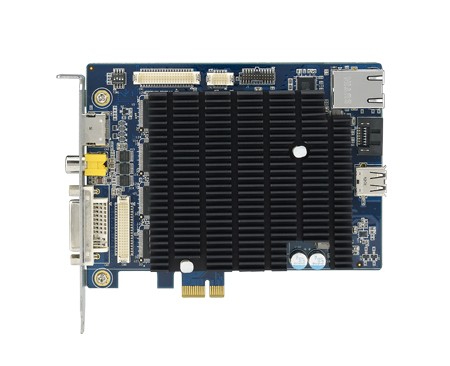

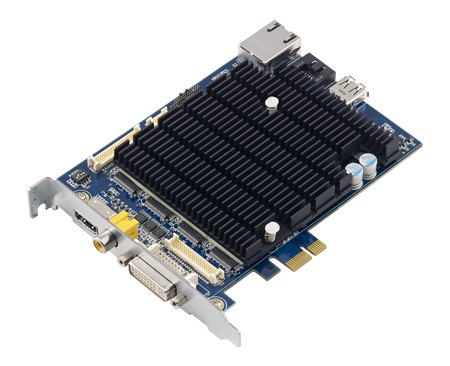

16-Channel PCIe Video Processing Board with SDK (DSPC-8661-PCXE)
by Advantech
•Part #: DSPC-8661-PCXE
View Detailed Description
Design with TI TMS320DM8168 SoC, DSPC-8661-PCXE is a full-functional video processing platform with 16-ch composite video and audio inputs based on standard half-length PCIe board form factor. The board supports H.264 / MJPEG / RAW encode / decode up to D1 resolution at real-time frame rate (30/25fps) for all channels simultaneously. The HDMI provides up to 1080p 60fps video / audio outputs that fulfills the high-definition display requirements. Equipped with a high-performance C674X Digital Signal Processor (DSP), DSPC-8661-PCXE can afford a system's host processing by executing image enhancement and video analytics programs. The I2C and UART interfaces are designed for extending the control and indicator functions like RS-485 and DIO (on the optional DIO & Control Board). Furthermore, the versatile peripherals of Giga LAN, SATA and USB ports enriches the data communication, storage as well as user interface functions while the device works at standalone mode. With an easy-to-use software development kit (SDK), the DSPC-8661-PCXE is an ideal solution for system integrators to implement diverse video-processing related applications that fits a broad spectrum of customer requirements.
- Powered by TI TMS320DM8168 SoC
- 16-ch composite video and audio inputs
- H.264 / MJPEG / RAW H/W encoding up to 480fps at D1
- One HDMI supports AV display up to 1080p at 60fps
- Embedded with 1.0GHz C674X VLIW DSP
- Versatile peripherals: Giga LAN port, SATA, USB 2.0, I2C and UART
- Half-size form factor and fanless H/W design
| Accessories | Cable | 16xBNC + 8xRCA to DVI Octopus Cable |
| Applications | PCIe Device Mode | PCIe digital video capturing & encoding card |
| Standalone Mode | Embedded IP video encoder / video recoder | |
| Audio Input | Channels | 8 |
| Connectors | DVI x1,Pin header x1 | |
| Format | RAW | |
| Sampling Rate | Up to 16-bit, 44KHz | |
| Peripheral | Data Bus | PCIe 2.0, Gen2, x1 |
| SATA Port | x1 (3.0 Gbps) | |
| USB 2.0 Port | A-type Female x1 | |
| Physical Characteristics | Dimensions (W x H x D) | 140 x 111.15 mm (5.51" x 4.38") |
| Operating Temperature | -20 ~ 70° C / -4 ~ 158° F (with air flow) | |
| Power Consumption | < 26W | |
| Software | Demo Program | 16-ch Video Capturing and H.264 Encoding at PCIe Device Mode |
| OS Support | Linux; Windows XP / XPe / Vista / 7 | |
| SDK | User’s Manual, Programming Guide, Sample Codes | |
| Video Input | Bit Rate Control | CBR & VBR |
| Channels | 16 | |
| Compression | H.264 / RAW | |
| Connector | DVI x1 (for connecting 16 x BNC + 8 x RCA to DVI octopus cable), Pin header x1 (Alternative for 16-ch video inputs) | |
| Input Format | Composite for NTSC/PAL | |
| Max. Frame Rate | 480/400 fps (NTSC/PAL) at D1 | |
| Resolution | Up to D1 (720 x 576) | |
| Video Output | HDMI out | 1 |
| Loop-out | 16-ch pin header on board | |
| RCA | 1 |
