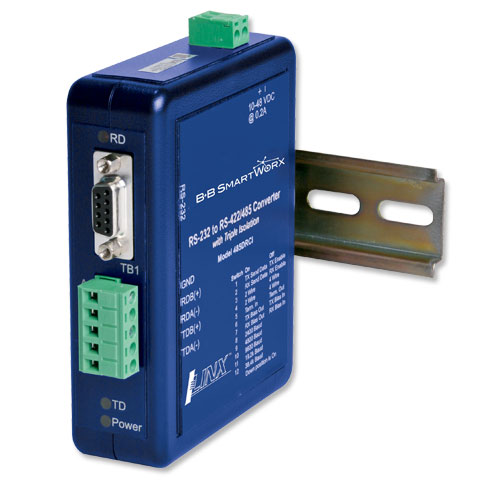

CIRCUIT MODULE, Triple Isolated RS-232 to RS-422/485 Converter (BB-485DRCI)
by Advantech
•Part #: BB-485DRCI
View Detailed Description
$193.00
Model 485DRCi industrial-grade isolated serial converter changes RS-232 signals to RS-422 for increased range, or to RS-485 for increased range plus multi-drop capability. Designed for rugged industrial use, the 485DRCi is UL approved and certified for operation in Class 1/Division 2 environments and also offers 2,000V 3-way optical isolation on input, output, and power lines. In addition to optical isolation, the unit has surge suppression on the RS-422/485 lines. This DIN rail mountable converter optically isolates and converts unbalanced, full or half-duplex, RS-232 signals to balanced RS-422/485 signals at baud rates up to 115.2 kbps. Configuration is made via a 12-position DIP switch on the bottom of the converter. Featuring Automatic Send Data Control circuitry, the converter does not require special software control of handshake signals in RS-485 mode. Removable terminal blocks for power and RS-422/485 signals make wiring easy. It is powered by a supply voltage of 10 to 48 VDC which is isolated from all data and signal ground lines.
- Data rates up to 115.2 kbps
- Three-way 2,000V optical isolation (input, output, power)
- Wide operating temperature
- UL Class 1/Division 2
- Modbus ASCII/RTU compatible
- 10–48 VDC input power range
| Display | LED Indicators | Communication and Power |
| General | Communication Speed | Serial: From 1,200 to 115.2 k |
| Connector | RS-232: female DB9 RS-422/485: plug-in screw terminal | |
| Humidity | 0 ~ 95%, non-condensing | |
| Interface | RS-232 to RS-422/485 | |
| Isolation Protection | 2000 VDC | |
| Temperature (Operating) | -40 ~ 80° C (-40 ~ 176° F) | |
| Temperature (Storage) | -40~85°C (40~185 °F) | |
| Power Supply | Power Requirement | 10~48 VDC |
