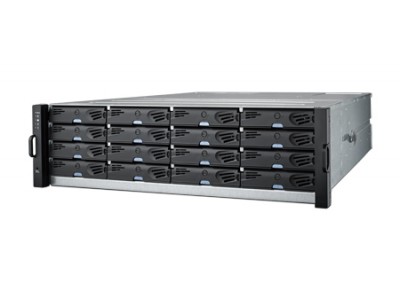

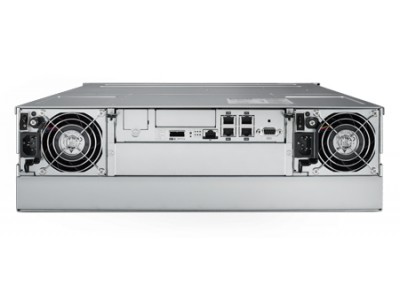

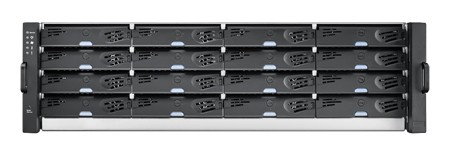

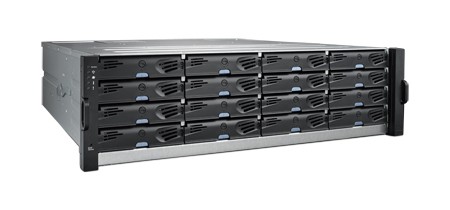

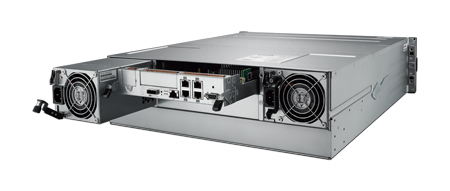

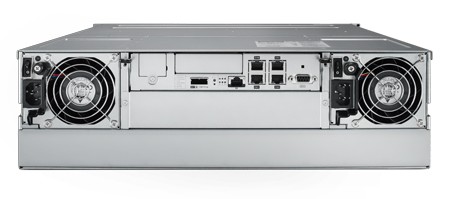

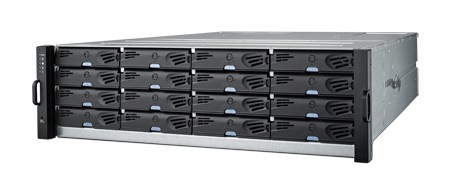

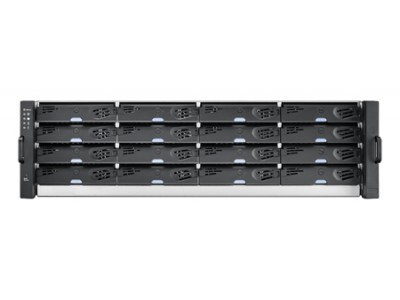

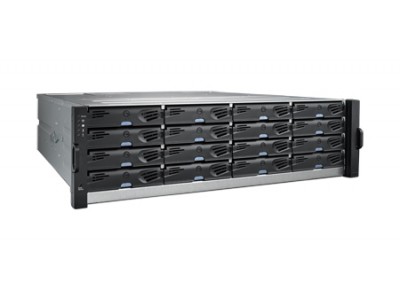

3U 16-Bay IP-SAN Storage with Enhanced Reliability for Surveillance (ASR-5300I-16A1E)
by Advantech
•Part #: ASR-5300I-16A1E
View Detailed Description
$3,660.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
3U 16-bay IP-SAN Storage with Reinforced Reliability for Surveillance
- Support 16 x 3.5”/2.5” 6G SAS/SATA drives

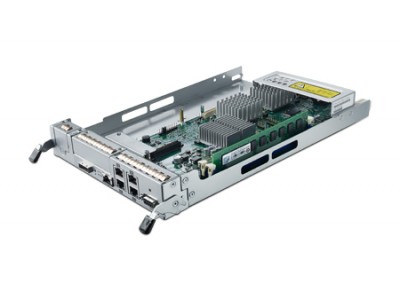

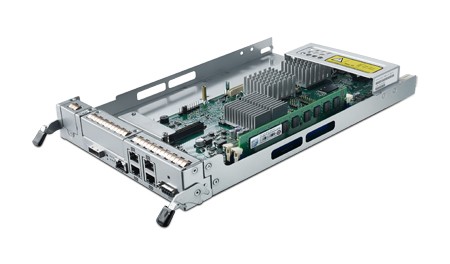

- Single Controller Configuration
- 3U16 (LFF) Short-Depth Form-Factor
- Built-in 4 x iSCSI 1Gb/s Host Interface
- Default 2GB Cache, Support up to 16GB
- Max 160 x 3.5"/2.5" SATA/SAS Drives
- Optional BBU/Super-Cap+Flash Module for Cache Backup
- Data Service Functions: Thin Provisioning, Snapshot, Volume Copy & Mirror
| Disk Drive Bay | 3.5"/2.5" Front-Accessible | 16 |
| Environment | Operational Temperature | 0 to 40° C (32 ~ 104° F) without BBU or Super-Cap |
| Form Factor | Form Factor | 3U 16-Bay |
| Miscellaneous | LED Indicators | Service, Power, Fan, Temperature, System Fail |
| Physical Characteristics | Dimensions (W x H x D) | 500 x 448 x 130 (mm) |
| Power Supply | Input Range | AC 100V~ 240V |
| Value-added | JBOD Expansion Max. | 160 HDDs |
