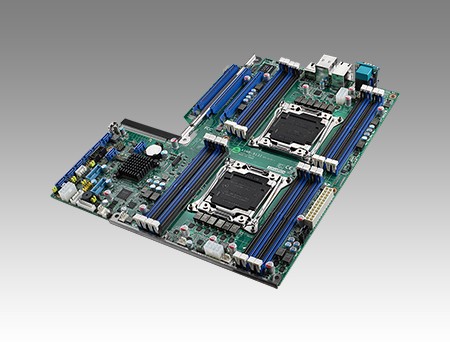

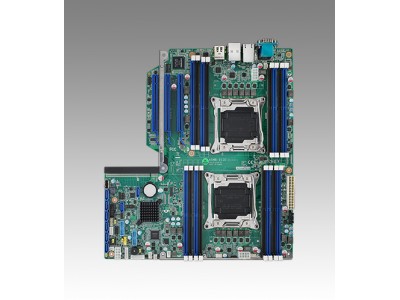

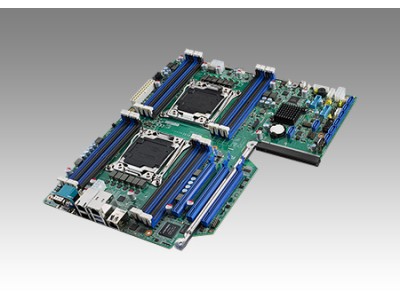

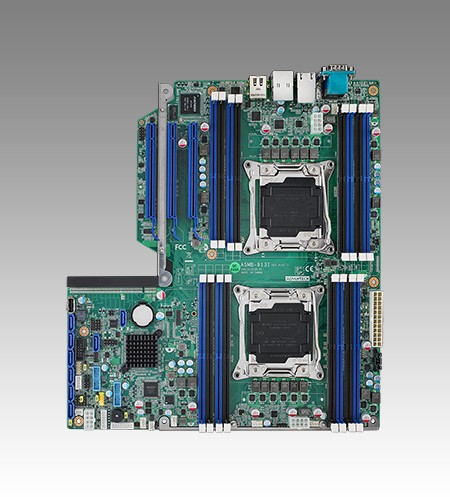

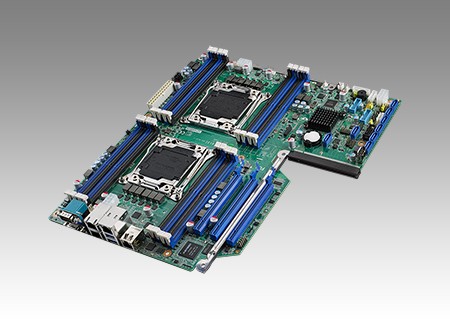

Dual LGA 2011-R3 Intel Xeon E5 EATX Industrial Server Board with 16 DDR4, PME (ASMB-913I-00A1E)
by Advantech
•Part #: ASMB-913I-00A1E
View Detailed Description
$748.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Dual LGA 2011-R3 Intel® Xeon® E5-2600 v3 EATX Server Board with 16 x DDR4 DIMM, 3 PCIe x16, 6 USB 3.0, PME support
- Compatible with Intel® Xeon Phi™ Coprocessors
- EATX Server Board with dual Intel® Xeon® E5-2600 v3 processor
- 16 x DDR4 2133 MHz RDIMM up to 512 GB
- Three PCIe x16 slot(Gen3.0) and PME expansion slot
- 8 x SATA3 6 Gb/s ports>
- 0 ~ 40° C ambient operation temperature range
- Note: ASMB-913I could enable PME slot when processor is installed in CPU socket
| Certification | EMC | CE, FCC |
| Display | Controller | Aspeed AST1400/2400 |
| Graphic Memory | Onboard memory 64MB | |
| Multiple Display | - | |
| Display Interface | VGA: Up to1920 x 1200 | |
| Environment | Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -40 ~ 85° C (-40 ~ 185° F) | |
| Non-Operating Vibration | 3.5 Grms | |
| Ethernet | Controller | LAN1: Intel I210; LAN2: Intel I210; LAN3: Intel I210; LAN4: Intel I210 |
| Speed | 10/100/1000 Mbps | |
| Connector | 4 x RJ45 | |
| Expansion Interface | PCI Express x 16 | 3 (Gen3) |
| PCI Express x 8 | - | |
| PCI Express x 4 | - | |
| PCI Express x 1 | - | |
| PCI | - | |
| LPC | 1 | |
| SMBus | 1 | |
| PME | 1 (Gen3) | |
| Form Factor | Form Factor | EATX |
| I/O | SATA | 8 x SATA3 (SATA0-SATA5 and sSATA0-sSATA1 Supports software RAID 0, 1, 10 & 5) |
| SAS Port | - | |
| SAS controller | - | |
| USB3.0 | 4 | |
| USB2.0 | 3 | |
| GPIO | 8-bit | |
| LPT | - | |
| COM Port | 1 x RS232 | |
| PS/2 Keyboard/Mouse | 1 | |
| SPDIF | - | |
| System Fan | 3 | |
| Management Solution | Software | SUSIAccess 2.1 |
| Out of band remote management | Intel I210 share NIC | |
| Memory | Technology | DDR4 2133 MHz |
| Capacity | Up to 512 GB | |
| ECC Support | Yes | |
| Socket | 16 x 288-pin DIMM | |
| REG Support | YES | |
| Physical Characteristics | Dimensions (LxW) | 304.8 x 330.2 mm (12" x 13") |
| Weight | - | |
| Power Requirement | Voltage | +12V/+5V/+3.3V/+5Vsb/-12V |
| Current | 23.2A/0.5A/1.4A/0.09A/0.05A | |
| Processor System | CPU | Intel Xeon E5-2600 v3 series (LGA2011-R3 socket) |
| CPU TDP | Up to 160 W | |
| Frequency | Up to 3.1 GHz | |
| Core Number | Up to 14 | |
| L3 Cache | 15-45 MB | |
| BIOS | AMI EFI 128 Mbit | |
| Chipset | Intel C612 | |
| Integrated Graphics | - | |
| DMI | 20Gb/s | |
| QPI | 9.6 GT/s | |

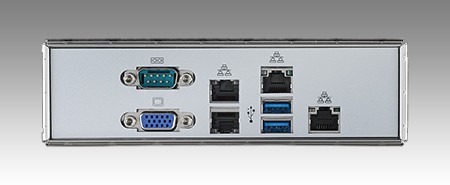

| Rear I/O Interface | Display | - |
| LAN | 4 | |
| USB3.0 | 2 | |
| USB2.0 | - | |
| COM | 1 x RS232 | |
| PS/2 | - | |
| DVI | - | |
| Ethernet | 2 | |
| VGA | 1 | |
| WatchDog Timer | Output | System Reset |
| Interval | Programmable 1 ~ 255 sec/min |
