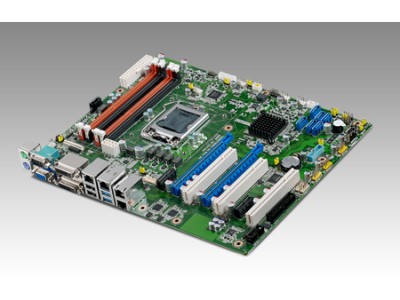

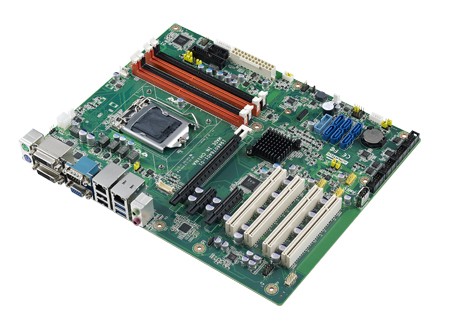

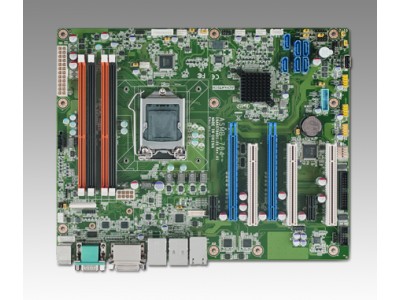

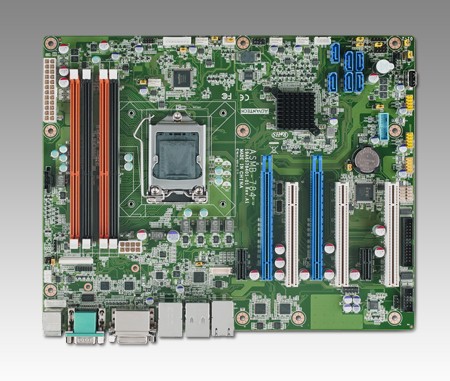

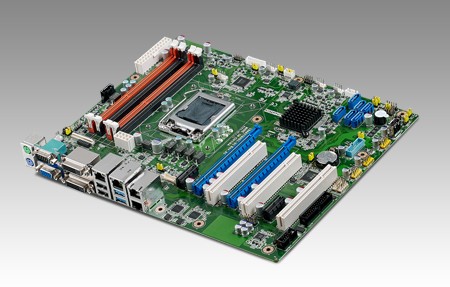

4th Generation Intel Core i7/i5/i3 Xeon ATX Serverboard with DVI/VGA and DDR3 (ASMB-784G2-00A1E)
by Advantech
•Part #: ASMB-784G2-00A1E
View Detailed Description
$516.56
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
LGA 1150 Intel® Xeon® E3 V3 ATX Server Board with 2 PCIe x16 slots (x8 link) or 1 PCIe x16 slot (x16 link), 3 PCI, USB 3.0, PCIe Gen III, Quad/Dual LANs
- LGA 1150 4th Generation Intel® Core™ i7/i5/i3 Xeon® processor with C226 chipset
- 4 x DIMM socket support for up to 32GB DDR3 1600
- Supports VGA display 2DVI and quad/dual GbE LAN
- Supports 6 SATA RAID 0,1,5,10, AMT 9.0, USB 3.0
- Rackmount optimized placement with positive air flow design
- Server grade components ensure 24x7 operation, long life inventory control
| Certification | EMC | CE, FCC |
| Display | Controller | Intel HD graphics Integrated |
| Graphic Memory | Share system memory up to 1 GB with 2 GB and above memory installed | |
| Multiple Display | Triple | |
| Display Interface | VGA: Up to 1920 x 1200 DVI-D: Up to 1920 x 1200 | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40 ~ 85° C @ 95% RH Non-Condensing | |
| Non-Operating Vibration | 3.5 Grms | |
| Ethernet | Controller | LAN1: Intel I217LM LAN2: Intel I211AT |
| Speed | 10/100/1000 Mbps | |
| Connector | 2 x RJ45 | |
| Expansion Interface | PCI Express x 16 | 2 slots (Two x8 link slots or One x16 link at PCIEX16_SLOT6 ) |
| PCI Express x 8 | - | |
| PCI Express x 4 | - | |
| PCI Express x 1 | 2 | |
| PCI | 3 | |
| LPC | 1 | |
| SMBus | 2 | |
| PME | - | |
| Form Factor | Form Factor | ATX |
| I/O | COM Port | 1 x RS232 |
| GPIO | 8-bit | |
| LPT | 1 | |
| PS/2 Keyboard/Mouse | 1 | |
| SAS controller | - | |
| SATA | 6 x SATA III (RAID 0, 1, 5, 10) | |
| SPDIF | 1 | |
| System Fan | 4 | |
| USB2.0 | 7 | |
| USB3.0 | 2 | |
| SAS Port | - | |
| Management Solution | Software | SUSIAccess 2.0 |
| Out of band remote management | Optional(IPMI-1000) | |
| Memory | Technology | DDR3 1600 MHz |
| Capacity | Up to 32GB (8GB per DIMM) | |
| ECC Support | Yes | |
| Socket | 4 x 240-pin DIMM | |
| REG Support | - | |
| Physical Characteristics | Dimensions (LxW) | 304.8 x 244 mm (12" x 9.6") |
| Weight | 0.8 kg (1.8 lb) | |
| Power Requirement | Voltage | +12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total |
| Current | 4.33A/2.30A/1.17A/0.16A/4.33A/0.01A/69W | |
| Processor System | CPU | Intel Xeon E3-1200 v3 series and 4th Gen Core i3/i5/i7 (LGA 1150 socket) |
| CPU TDP | Up to 95 W | |
| Frequency | Up to 3.5 GHz | |
| Core Number | 4 / 2 core | |
| L3 Cache | 8 MB | |
| BIOS | AMI SPI 128 Mbit | |
| Chipset | Intel C226 | |
| Integrated Graphics | Yes | |
| QPI | - | |
| DMI | - | |

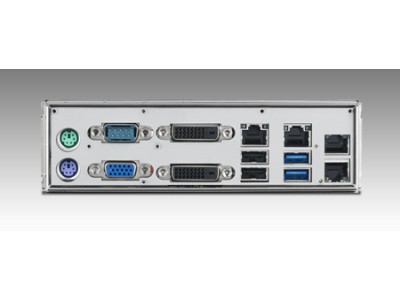

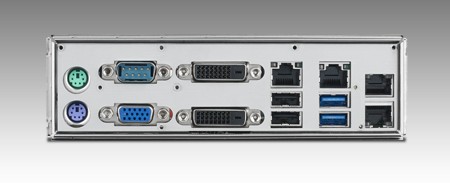

| Rear I/O Interface | Display | 3 |
| LAN | 2 | |
| USB3.0 | 2 | |
| USB2.0 | 2 | |
| COM | 1 x RS232 | |
| PS/2 | 2 (1 x Keyboard, 1 x Mouse) | |
| DVI | 2 | |
| Ethernet | 2 | |
| VGA | 1 | |
| WatchDog Timer | Output | System Reset |
| Interval | Programmable 1~255 sec |
